Status Options 57
Model 2160 Series Getting Started Guide 4 • Web configuration
Status Options
This section contains information for monitoring status options for the Model 2160 via the
WMI. The Status menu contains LINE, MGMT, and LAN parameters.
LINE Status
The LINE Status includes information for the run-time device status, mode, Bitrate and Performance infor-
mation such as SNR margin, atteunation and CRC error count.

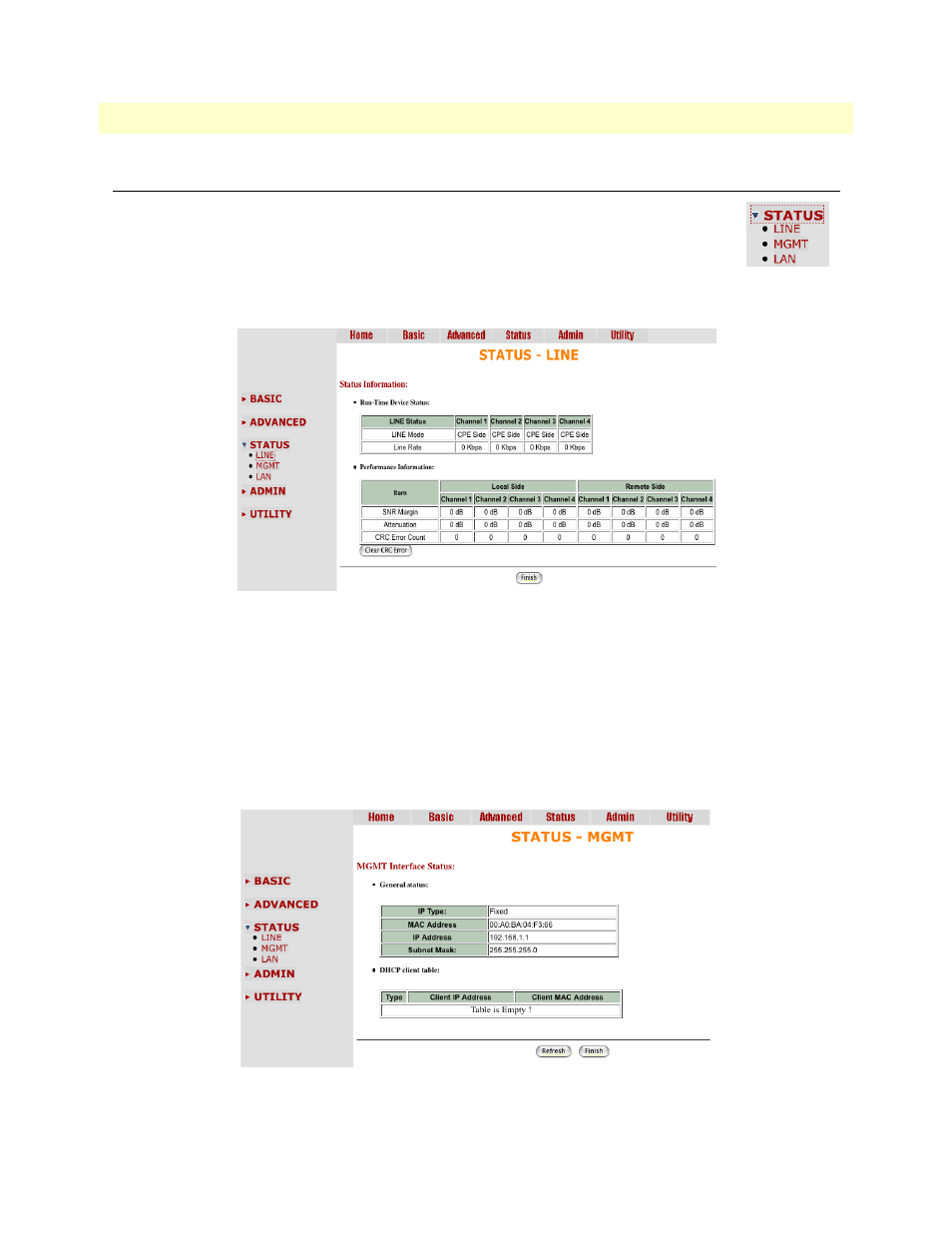

Figure 31. LINE Status page (8-wire model shown)
If two Model 2160s have been linked together, you can view their run-time line rate status and performance
information from this screen. If you want to clear the performance data, click Clear CRC Error.
Note CPE side's line rate according to the setting of CO side.
MGMT Status
The MGMT Status page displays information about the MGMT port interface. You can view the general sta-
tus of the MGMT interface and DHCP client table.
Figure 32. MGMT Status page
