Utility Options 63
Model 2160 Series Getting Started Guide 4 • Web configuration
You can check the MCSV, Software Version, Chipset, Firmware Version, Host Name and System Up Time.
The System Up Time item let you know how long the Model 2160 has been running since powering up.
Configuration Tool
The configuration tool has three options: Load Factory Default, Restore Configuration, and Backup Config-
uration. Click Config Tool in the Utility menu.

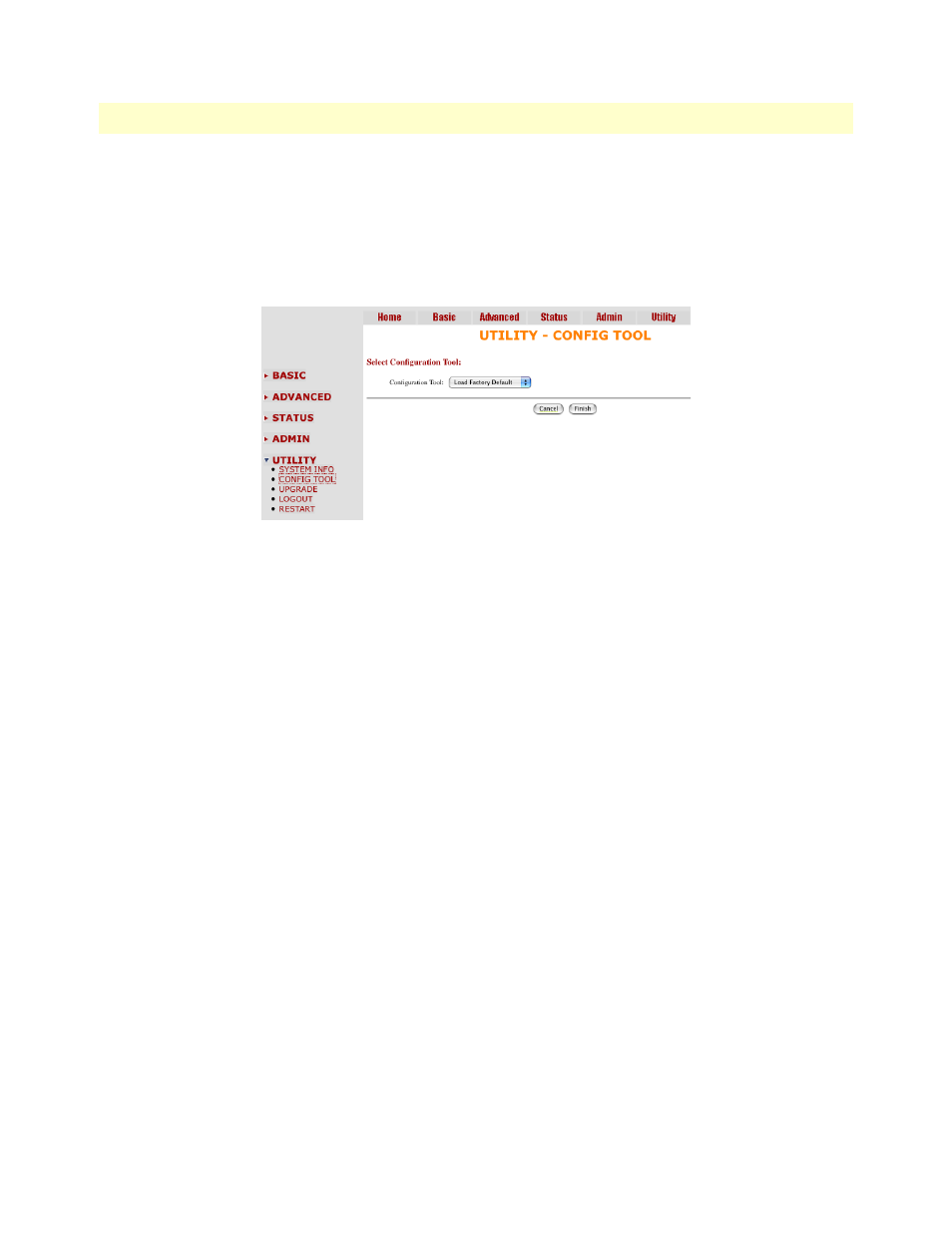

Figure 41. Configuration Tool page
Select the desired configuration function, then click Finish.
• Load Factory Default: The system will load the factory default parameters for the Model 2160.
Note This option will change all of the settings back to factory default. You
will lose all of your current settings.
• Restore Configuration: Use this option to recover the backup configuration easily. Click Finish after select-
ing Restore Configuration. Browse to the backup file then click Finish again. The Model 2160 will auto-
matically restore the saved configuration.
• Backup Configuration: After you configure the Model 2160 with your desired settings, you can use the
Backup Configuration option to save your Model 2160 parameters in the PC. Select the Backup Configu-
ration and then click Finish. Browse to the backup directory, and click Finish again. The Model 2160 will
automatically save the configuration.
