Model 2160 rear panel 20
Model 2160 Series Getting Started Guide 1 • General information
Model 2160 rear panel
Port descriptions
The CopperLink™ Model 2160 rear panel ports are shown in figure 3 and described in table 3 .

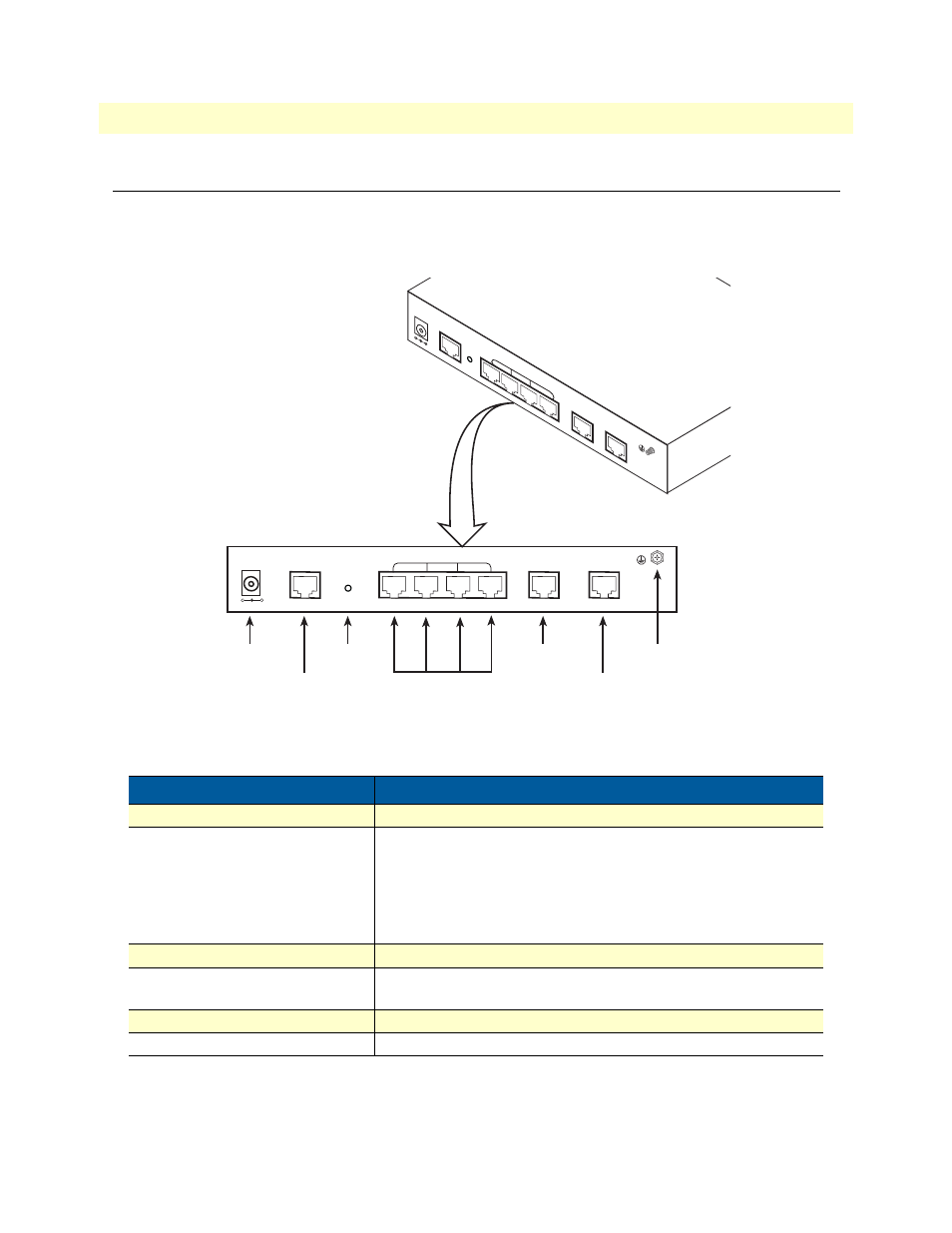

Figure 3. Model 2160 rear panel
Note For port pinout information, see Appendix C, “Port pin-outs” on
page 105.
Table 3. Port descriptions
Port Description
DC 9V Power adaptor inlet: Input voltage 9VDC
Console (RS-232 control port) Used for service and maintenance, the Console port, an RS-232
RJ-45 connector with EIA-561 pinout, connects the router to a
serial terminal such as a PC or ASCII terminal (also called a dumb
terminal). Asynchronous default data rate 9600 bps, hardware
DSR and DTR signals for external modems are wired directly
together internally
RST Reset button for rebooting or loading factory default settings
LAN (LAN Ethernet Ports 1-4) 10/100Base-Tx full-/half-duplex, RJ-45, auto detection and fall-
back, connects the unit to an Ethernet LAN.
MGMT RJ-45 for management port
LINE Interface for WAN port (RJ-45)
+ -
RST
DC 9V
LAN
MGMT
LINE
CONSOLE
1
2
3
4
DC 9V CONSOLE
RST
MGMT LINE
LAN
Power
Console
RS-232 port
Reset button
LAN (1-4)
RJ-45 port
1 2 3 4
Management
RJ-45 port
Line
RJ-45 port
Ground
