Basic Configuration Options 38
Model 2160 Series Getting Started Guide 4 • Web configuration
1. Click on Basic from the main menu. Set up the Operation Mode and MGMT port, then click Next. Set
up the DHCP Server, then click Next to reach the LAN page.

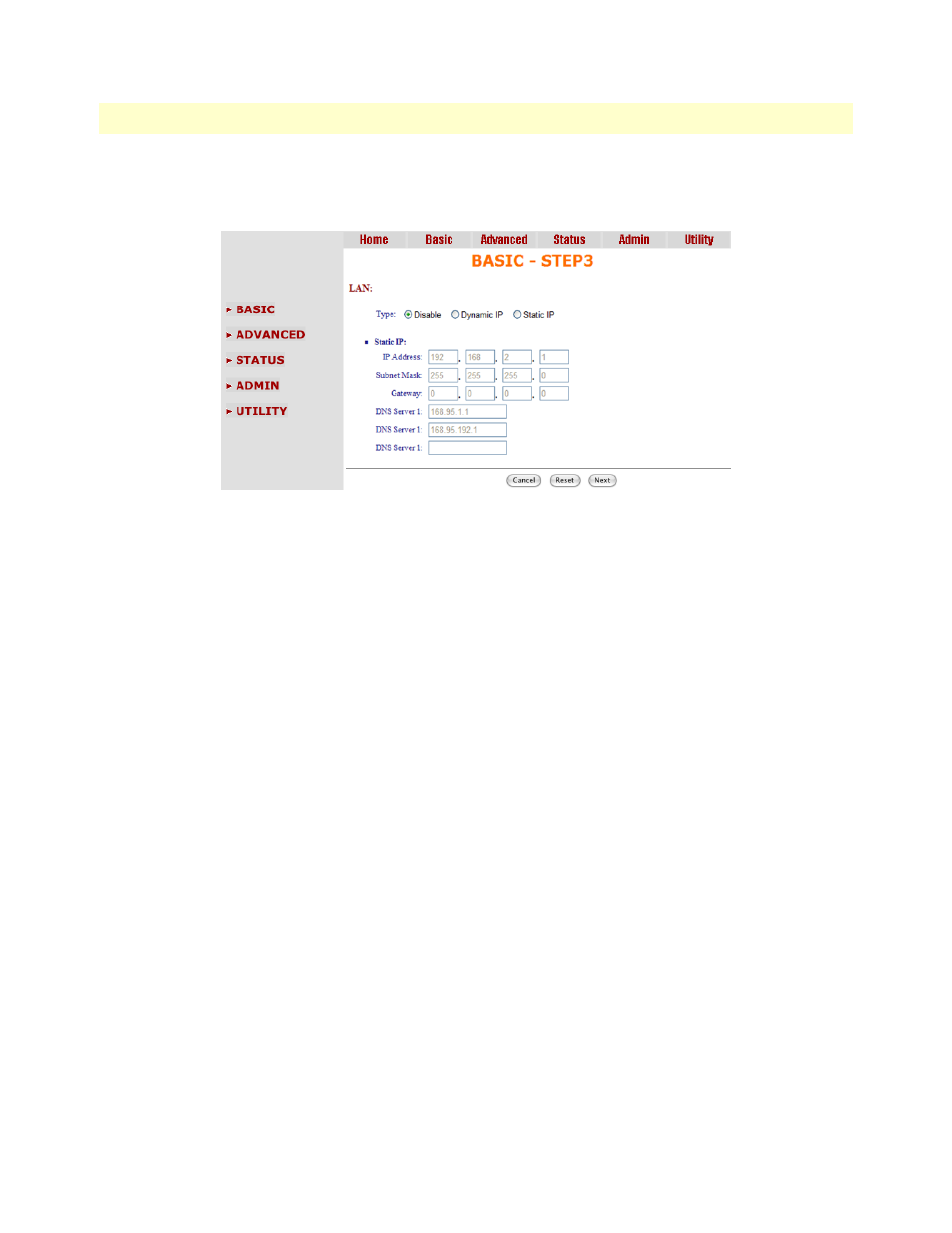

Figure 11. LAN setup page
2. Choose an option for the LAN Type. If you select Disable or Dynamic IP, click Next at the bottom of the
screen to save your changes. If you select Static IP, you can enter information for IP, Subnet Mask, Gate-
way and DNS Server's IP.
3. If you select Static IP as the LAN Type, enter details in the Static IP section. The default values for Static
IP are:
– IP Address: 192.168.2.1
– Subnet Mask: 255.255.255.0
– Gateway: 0.0.0.0
– DNS Server 1: 168.95.1.1
– DNS Server 2: 168.95.192.1
4. Click Next to commit your changes and continue to the Review page (see “Review and save basic setup
changes” on page 39).
