Model 2160 front panel

19

Model 2160 Series Getting Started Guide

1 • General information

Model 2160 front panel

LED descriptions

The front panel LEDs display the status of the power, system, Ethernet ports, and Line port.

Figure 2

shows

the front panel LED indicators and

table 2

provides a description of the LED indicators’ behavior.

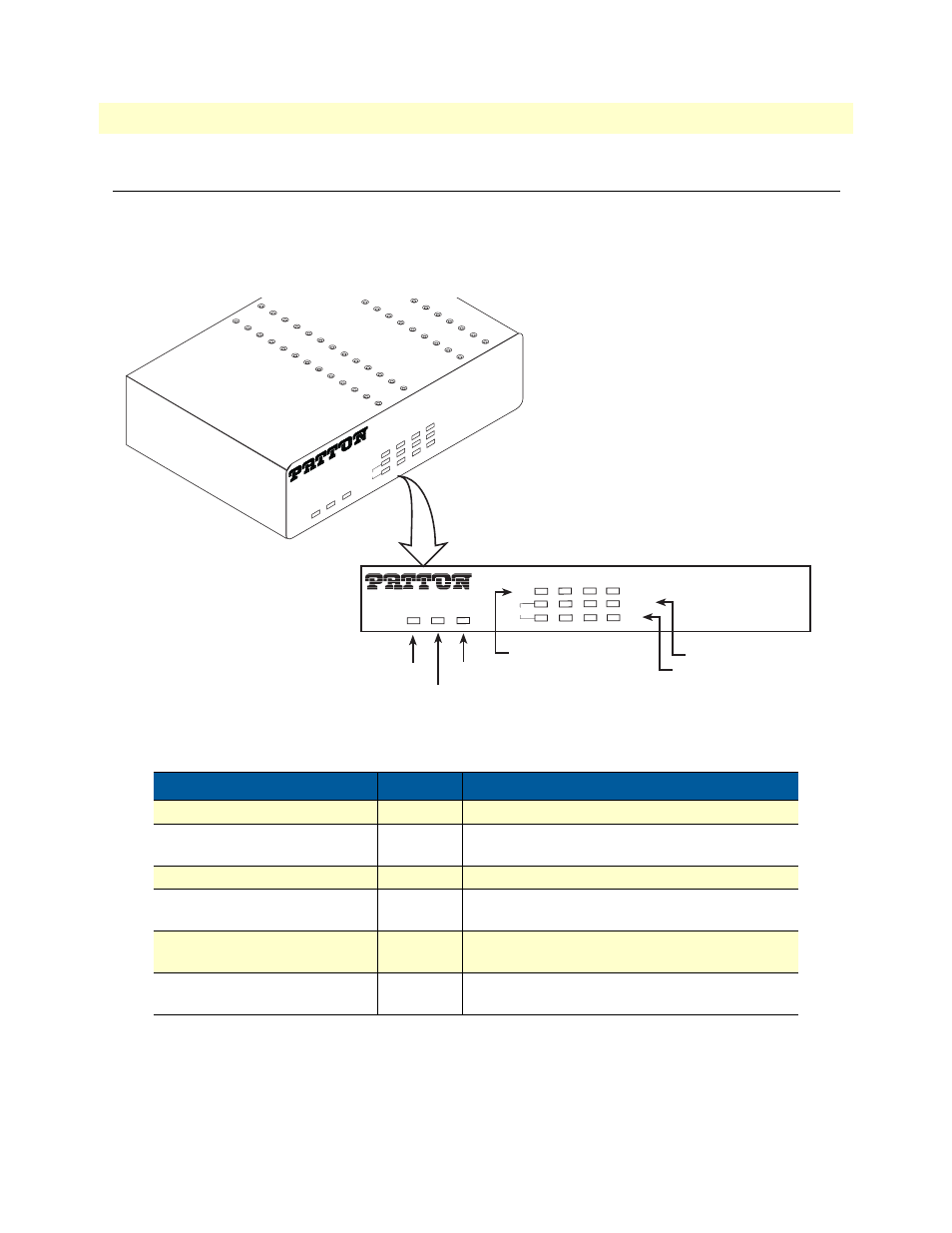

Figure 2. Model 2160 front panel LEDs

Table 2. Front panel LEDs

LED

Condition

Description

PWR

On

Power is applied

ALM

On

Blink

LINE connection dropped
LINE self-test

DIAG

On

Management port is connected

WAN (1-4) LINK

On

Blink

LINE is connected
LINE handshake/transmitted/received data

LAN (1-4) LINK/ACT

On

Blink

Ethernet is connected
Ethernet link transmitted/received data

LAN (1-4)100M

On
Off

LAN port is on 100M mode
LAN port is on 10M mode

Power

CopperLink™ 2160

Long Range Ethernet Extender

PWR

ALM

DIAG

WA

N

LAN

100M

LINK/ACT

LINK

1

2

3

4

PWR

ALM

DIAG

WAN

LAN

100M

LINK/ACT

LINK

1

2

3

4

CopperLink™ 2160

Long Range Ethernet Extender

Alarm

Console

WAN(1-4) Line Connection

LAN (1-4) Ethernet Link/Activity

LAN (1-4) Ethernet Mode
