COMSPHERE DualFlow Data Service Units

D-8

December 1996

3615-A2-GB20-20

Crossover Cables

Figure D-5 shows the EIA-232-D crossover cable and

its pin assignments, and Figure D-6 shows the V.35
crossover cable and its pin assignments.

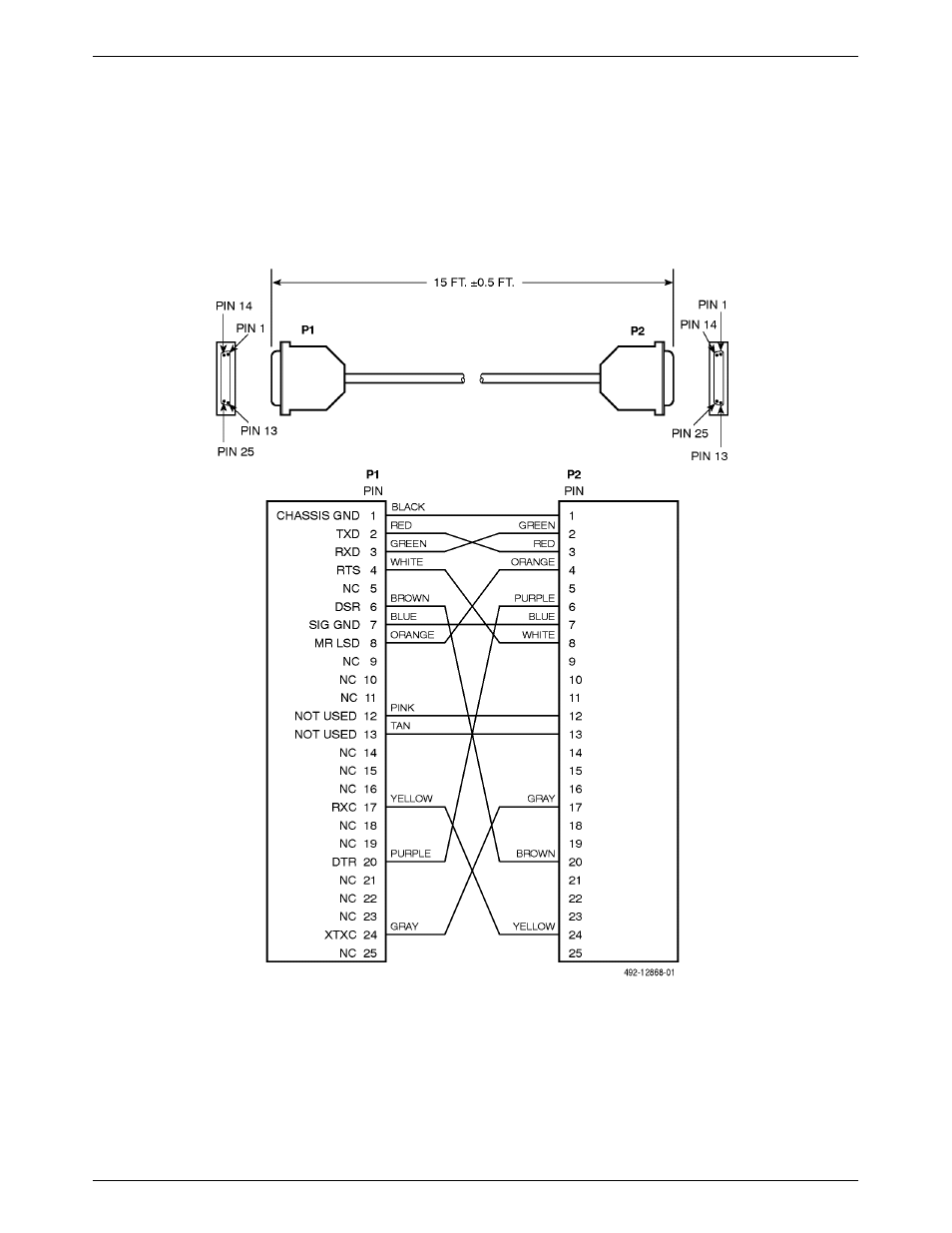

Figure D-5. EIA-232-D Crossover Cable (4951-035F)
