Page 107

COMSPHERE DualFlow Data Service Units
D-4
December 1996
3615-A2-GB20-20
DTE Connectors
Figure D-3 shows the Model 3616 DSU’s rear
connector plate. Table D-5 provides the EIA-232/V.24
connector’s pin assignments.
Figure D-4 shows the V.35 Interconnect Cable that is
shipped with the rear connector plate; it provides the
interface between the port’s D-type connector and the
DTE cable’s V.35 connector. Table D-6 provides the
25-pin V.35 connector and the V.35 Interconnect Cable’s
pin assignments.

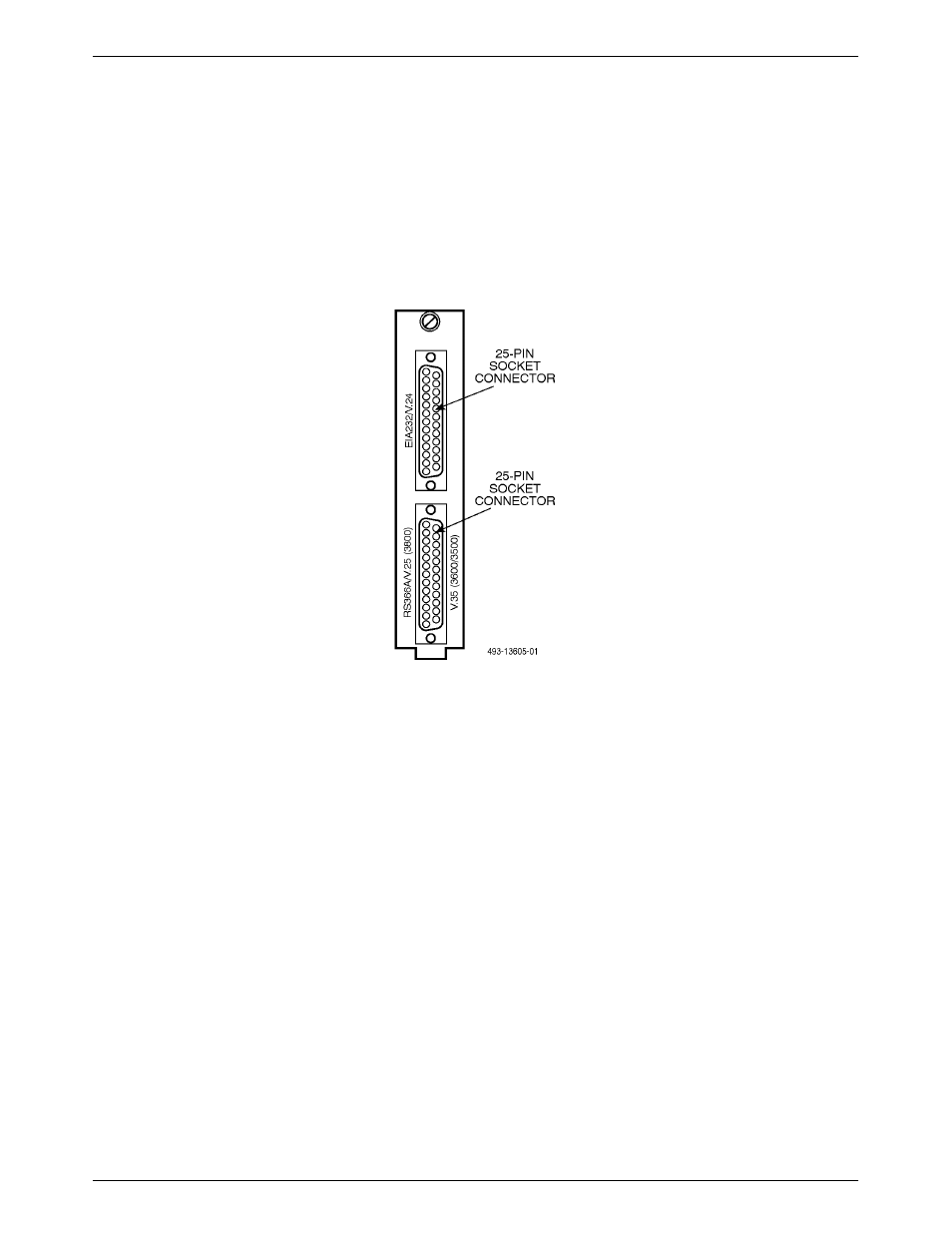

Figure D-3. Model 3616 DSU 25-Pin EIA-232/25-Pin V.35
Rear Connector Plate (3000-F1-021)
