COMSPHERE DualFlow Data Service Units

D-2

December 1996

3615-A2-GB20-20

Table D-1

Model 3615 – Digital (DDS and 4-Wire Switched 56 kbps) 8-Pin Network Connector Pin Assignments

Pin

Circuit

Function

1

R1

Transmit data to local loop

2

T1

Transmit data to local loop

7

T

Received data from local loop

8

R

Received data from local loop

Table D-2

Model 3615 – Dial (Analog and 2-Wire Switched 56 kbps) 6-Pin Network Connector Pin Assignments

Pin

Circuit

Function

3

T

Tip – V.32 and 2-Wire Switched 56 DBMs only

4

R

Ring – V.32 and 2-Wire Switched 56 DBMs only

3600 Hubbing Device

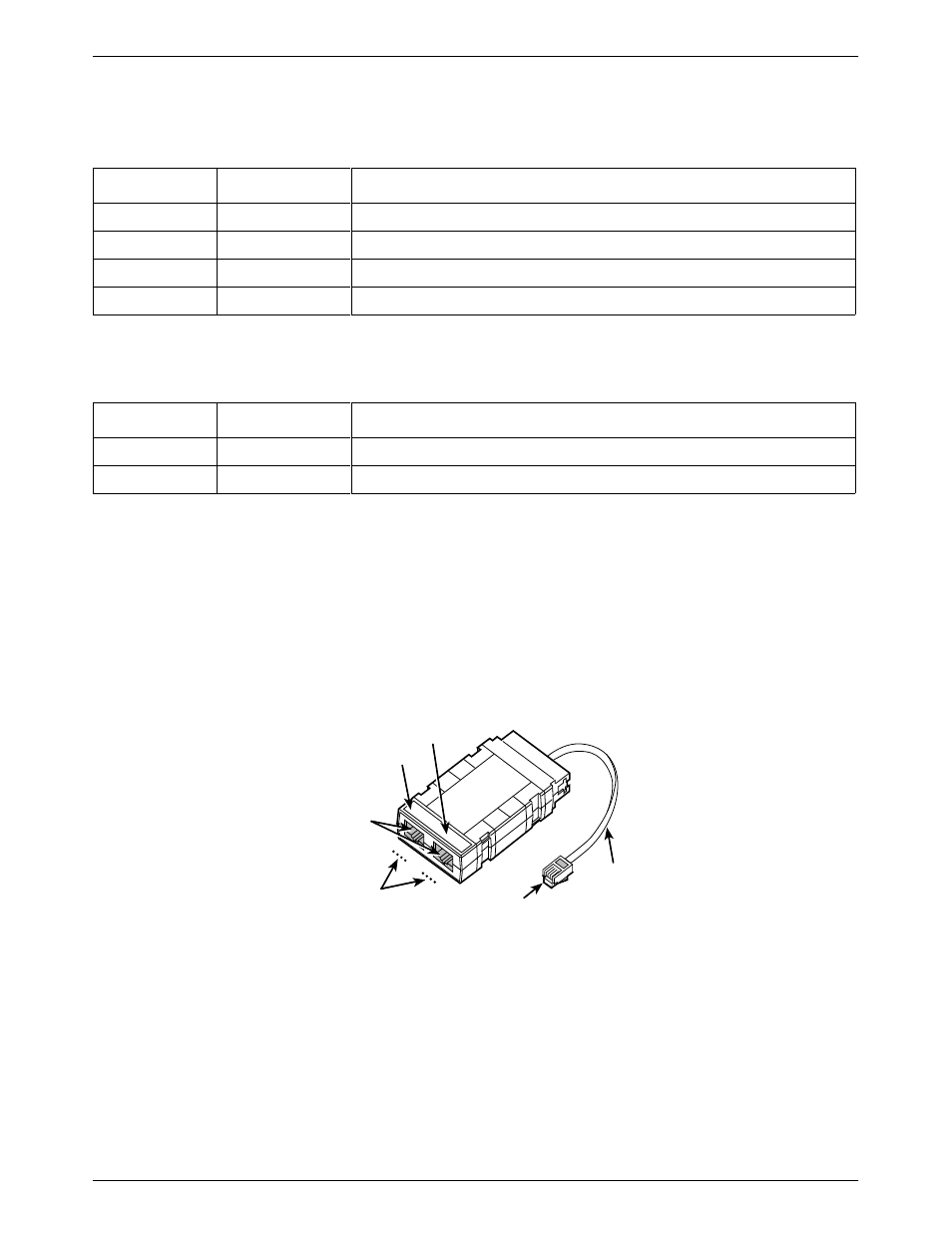

Figure D-2 shows the 3600 Hubbing Device; Table D-3

shows its pin assignments. Table D-4 provides the
3600 Hubbing Device’s CC IN/DC OUT jack pin
assignments.

3000HUBBING DEVICE

MODEL

#3000-F3-300

8-Pin

Modular

Jacks

6 Inches

Overall

4-Pin

Modular

Plug

496-13775-03

8

1

Pin

Numbers

8

1

CC IN/DC OUT

CC OUT/DC IN

CC IN/DC OUT

Hubbing Device

CC OUT/DC IN

Figure D-2. 3600 Hubbing Device (3600-F3-300)
