8 Basic Operation Instructions
Synergy Seat www.pridemobility.com

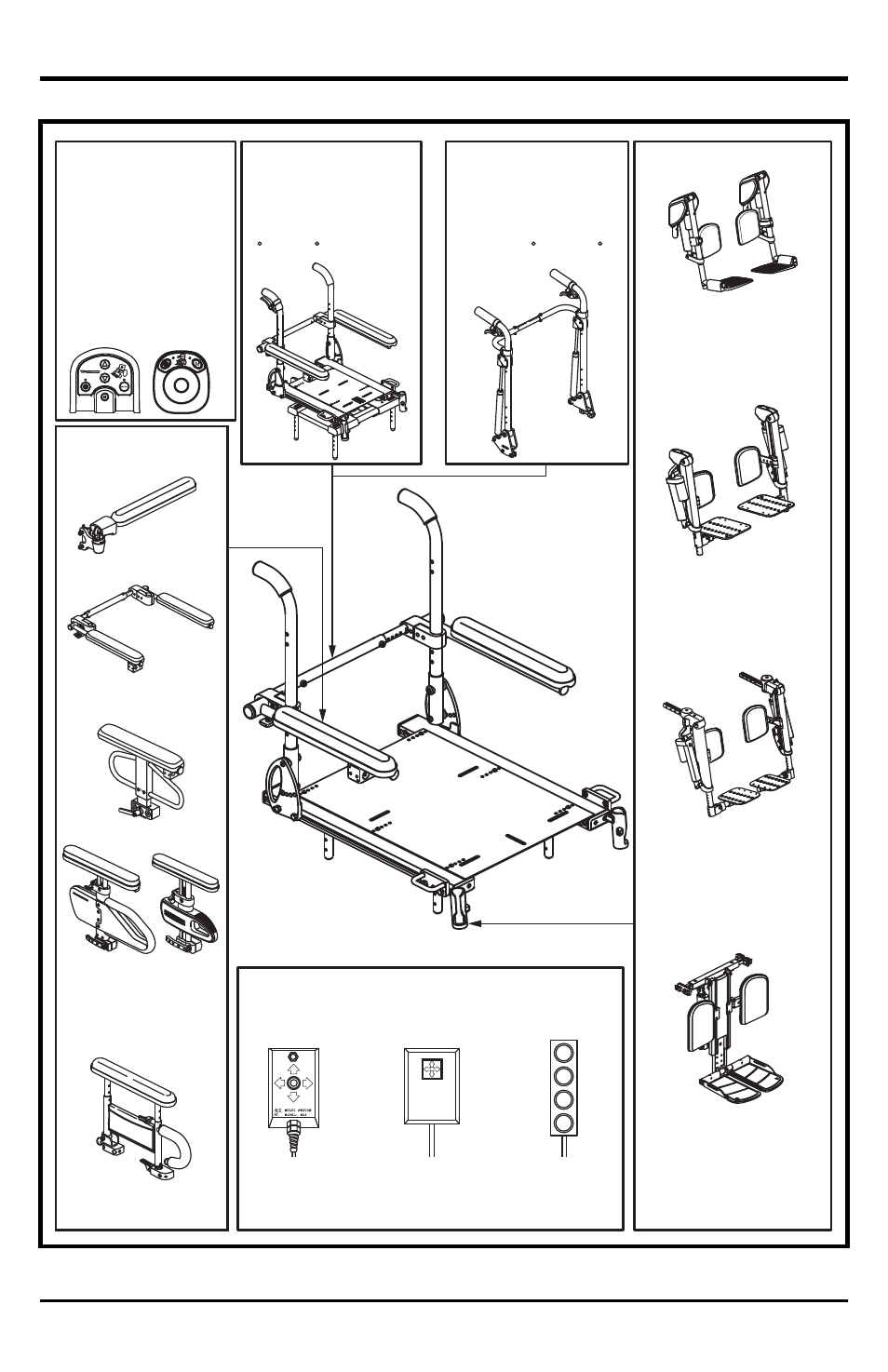

Figure 1. Synergy Seat and Options
MANUAL RECLINE
BACK (OPTIONAL)
With this option, the
seatback can be adjusted
to recline to an angle
between 90 and 180
4-WAY TOGGLE CONTROLS (OPTIONAL)
Allow the user to control the seat elevator and
articulating leg rest actuators (if so equipped).
4-way
Button
Toggle
4-way
Toggle
Quad
Push-Button
Control
ATTENDANT
CONTROL MODULE
(OPTIONAL)
Allows an attendant to
control the actuators. Any
action made through
the Attendant Control
Module overrides the
toggle actions made by
the user.
ARMRESTS
Available in five
basic styles:
Heavy Duty Drop-in
Flip-up
(standard)
Cantilever
Single Post Quick
Height Adjustable
Drop-in
(available in adult
and pediatric sizes)
Two Post Height
Adjustable Flip-up
POWER ARTICULATING
LEG RESTS (ALR)
Maintain correct
knee-to-heel measurements
when user's legs are raised
or lowered.
SWING-AWAY POWER
ARTICULATING
LEG RESTS (ALR)
Maintain correct
knee-to-heel measurements
when user's legs are raised
or lowered.
POWER ARTICULATING
FOOT PLATFORM (AFP)
Maintains correct
knee-to-heel measurements
when user's legs are raised
or lowered.
HIGH PIVOT POWER
ELEVATING
LEG RESTS (ELR)
Mimic the motion of the
knee during leg elevation.
LEG RESTS (OPTIONAL) MANUAL TILT
(OPTIONAL)
With this option, the
seatback can be adjusted
to tilt to an angle between
0 and 45
