18 Basic Operation Instructions
Synergy Seat www.pridemobility.com
Quad Push-Button Control Toggle
„ Seat Elevator Function (Optional)
1. To elevate the seat, push the third button.
2. To lower the seat, push the third button
again.
„ Combined Leg Rest Function (Optional)
1. To elevate both leg rests, push the fourth
button.
2. To lower both leg rests, push the fourth
button again.
„ Independent Leg Rest Function (Optional)

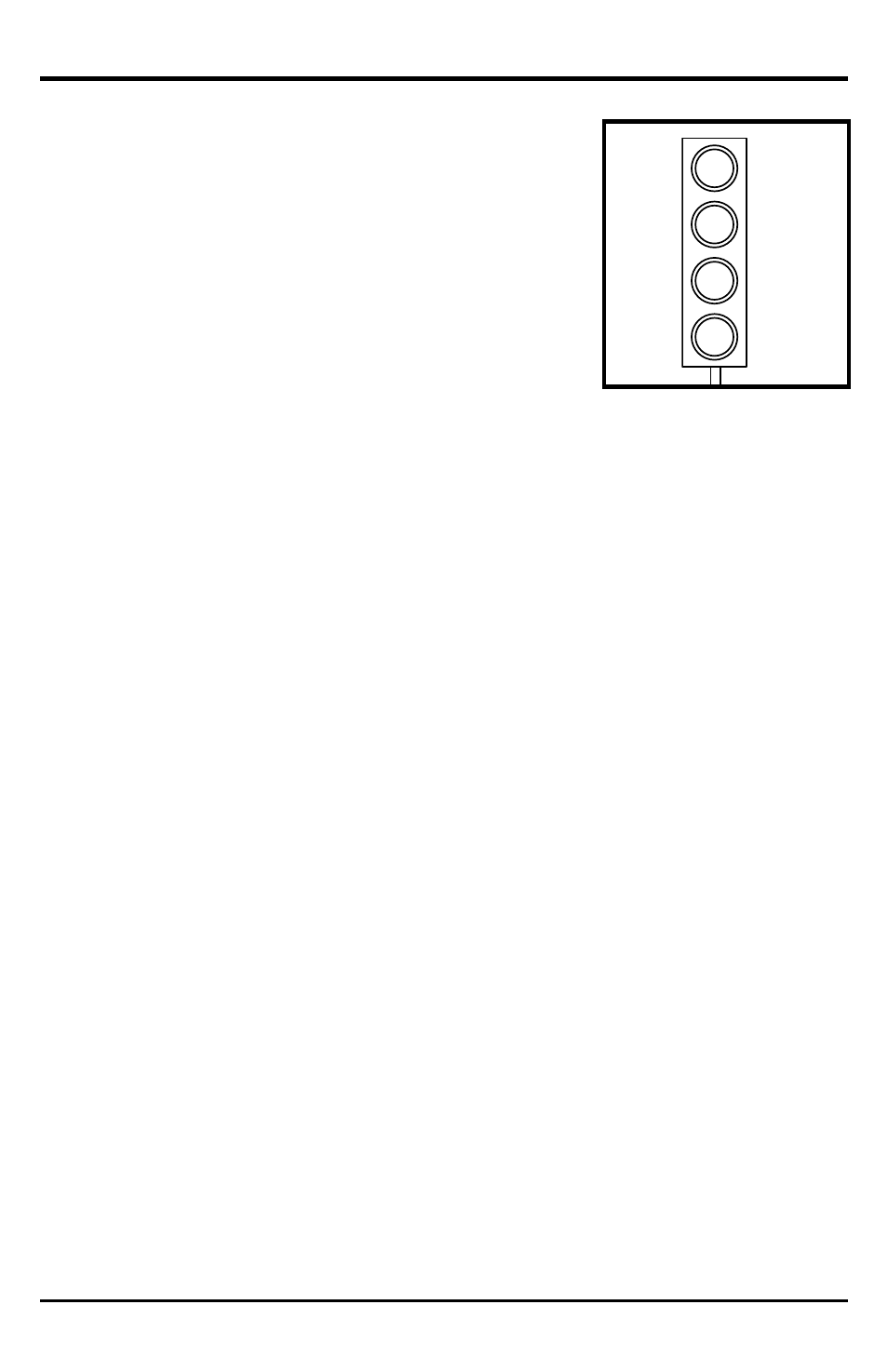

Figure 10. Quad Push-
Button Control Toggle
Operation
1
2
3
4
1. To elevate the left leg rest, push the third button.
2. To lower the left leg rest, push the third button again.
3. To elevate the right leg rest, push the fourth button.
4. To lower the right leg rest, push the fourth button again.
NOTE: The power elevator option is not available when the independent
leg rest option is selected.
Q-Logic Joystick Operation
1. Push the On/Off and Mode Select Lever up once to power on the chair
and the controller.
2. Push the On/Off and Mode Select Lever up several times until the seat
screen is displayed on the LCD or push the key II select button once to
go directly to actuator mode.
3. Push the joystick to the left or right to cycle through the available actu-
ators until the desired actuators are illuminated on the actuator indicator.
See figure 11.
4. When the desired actuator is selected, give a forward command to the
joystick to adjust position in one direction or give a reverse command to
the joystick to adjust position in the opposite direction.
5. Push and release the On/Off and Mode Select Lever until you return to
the desired drive profile.
