Basic Operation Instructions
Synergy Seat
www.pridemobility.com
To adjust the bottom height:
1. Rotate the armrest lock lever forward and remove the armrest from the
armrest lock.
2. Remove the two button head screws from the detent bar. See figure 25.
3. Slide the armrest up or down to the desired height.
4. Line up the holes in the armrest.
5. Reinstall the two button head screws into the detent bar.
6. Rotate the armrest lock lever rearward.
7. Repeat for the other armrest, if necessary.
Detent Bar
Armest Lock
Button Head Screws
Armrest Lock Lever

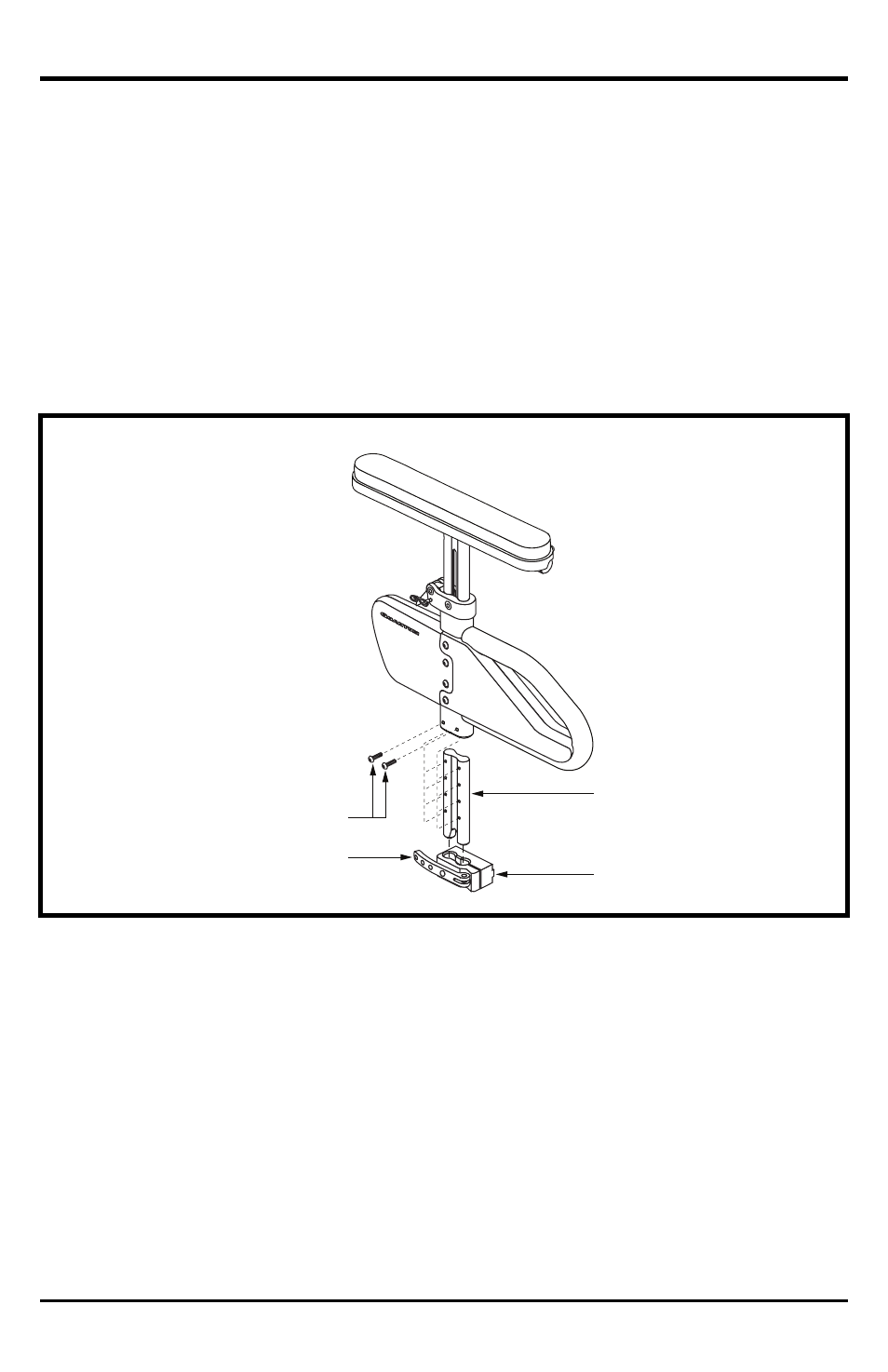

Figure 25. Single Post Quick Height Adjustable Armrest Bottom Height
Adjustment
