14 Basic Operation Instructions
Synergy Seat www.pridemobility.com
To remove the Synergy Seat from the Q6 Edge power base:
1. Remove the screws from all of the seat interface weldments. See
figure 4.
2. Lift the Synergy Seat. One person should lift from the front of the seat
and another should lift from the rear. Lift the seat straight up out of the
seat interface weldments.
To install the Synergy Seat on the Q6 Edge power base:
1. Lift the Synergy Seat above the power base. One person should lift from
the front of the seat and another should lift from the rear.
2. Lower the seat so that the four seat mounting brackets are inserted into
the four seat interface weldments. See figure 4.
3. Without removing the seat mounting brackets from the seat interface
weldments, lift either the front or rear of the Synergy Seat and insert the
screws to lock the seat at the desired height.
4. If an angled seat is desired, set the front of the Synergy Seat higher than
the rear. The seat base angle can be adjusted to achieve up to 20° of
posterior tilt (seat dump).

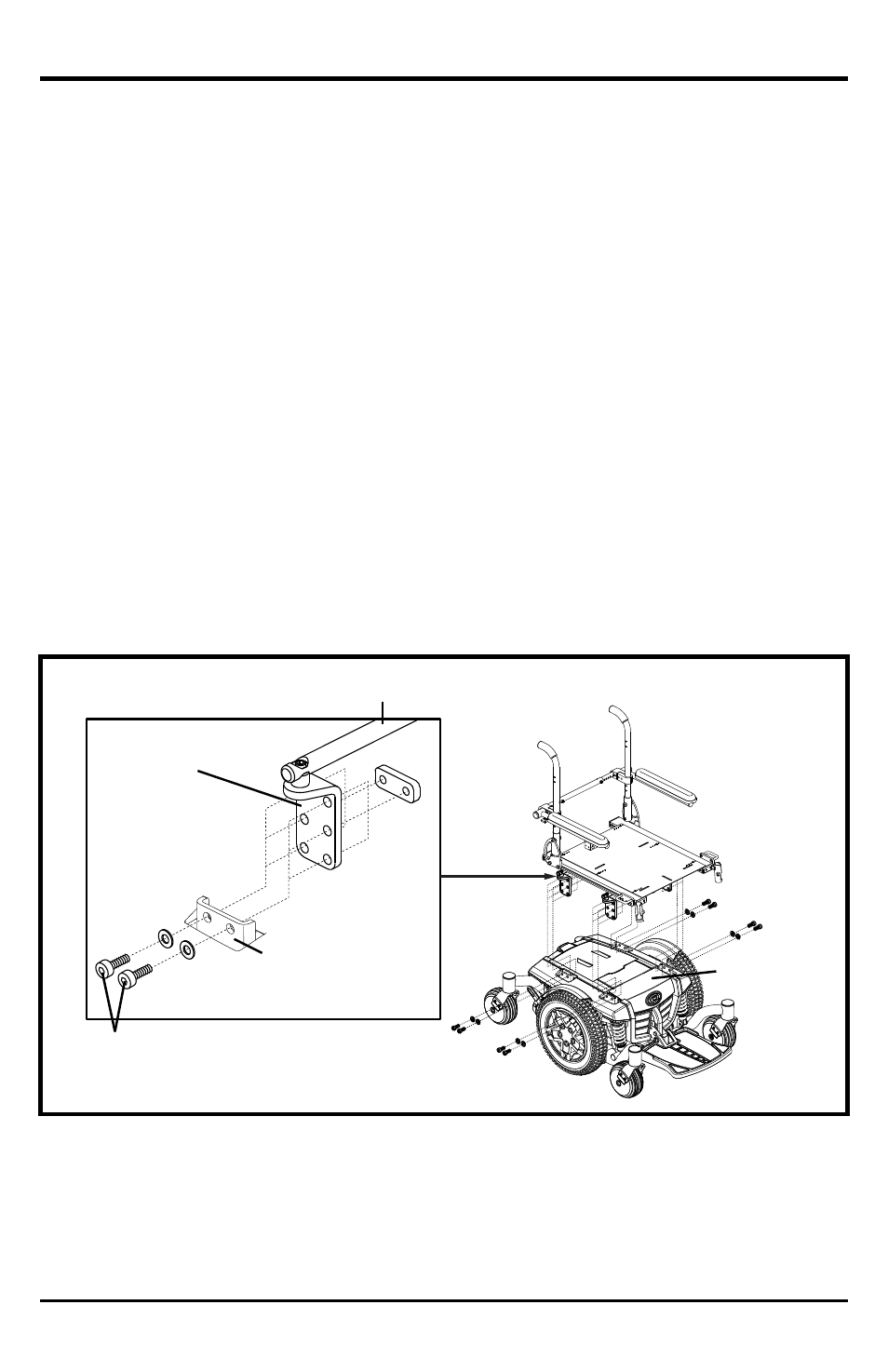

Figure 4. Seat Installation/Removal on Q6 Edge
SCREWS
SEAT MOUNTING
BRACKET
SEAT INTERFACE
WELDMENT
POWER BASE
TRAPEZE BAR
