34 Basic Operation Instructions
Synergy Seat www.pridemobility.com
CONTROLLER POSITION
You can position the controller for either left-hand or right-hand use. You
can also adjust the extension of the controller from the armrest.
WARNING! Do not place the controller harness so that it
can be pinched in the seat frame or the power base frame.
To change the controller position:
1. Turn off the power to the controller.
2. Unplug the controller connector from the power base. Refer to power
base owner’s manual.
3. Remove any wire ties securing the controller harness to the armrest.
4. Loosen the mounting screws in the controller mounting block. See fig-
ure 30.
5. Move the controller mounting block and controller to the other armrest
and tighten the mounting screws.
6. Route the controller harness to the back of the power base and secure it
with wire ties. See figure 31.
7. Reconnect the controller.
To change the controller extension:
1. Turn off the power to the controller.
2. Remove any wire ties securing the controller harness to the armrest.
3. Loosen the setscrews in the controller mounting block. See figure 30.
4. Slide the controller into or out of the armrest to the desired position.
5. Tighten the setscrews to secure the controller.
6. Secure the controller harness to the armrest with wire ties.

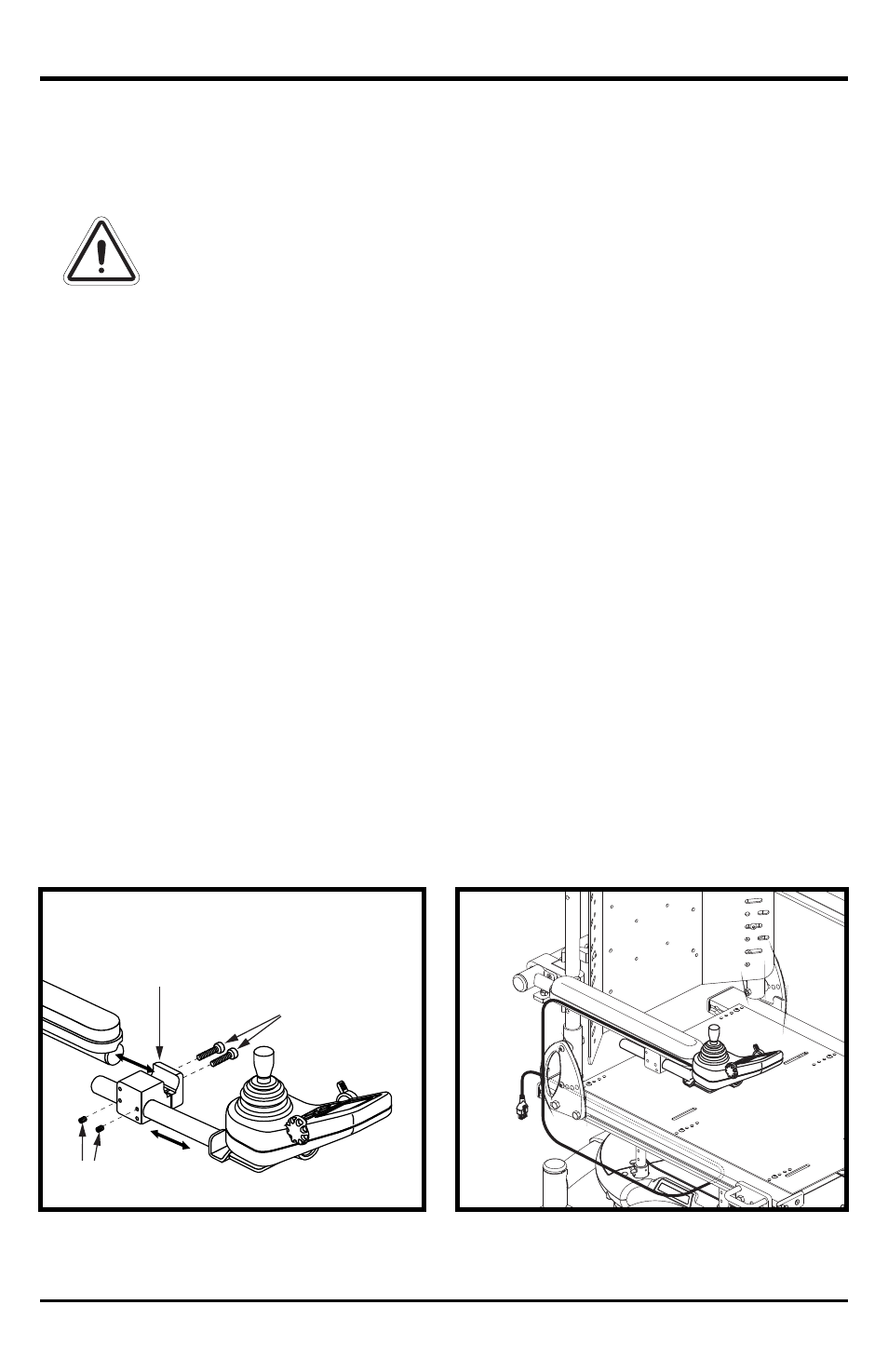

Mounting Block
Setscrews
Mounting Screws
Figure 31. Controller Harness
Routing Figure 30. Controller Position —
Mounting Block
