28 Basic Operation Instructions
Synergy Seat www.pridemobility.com
Seat Base
Side Rail
Armrest
Lock
Flat Head
Screws
Button Head
Cap Screws
Armrest Lock
Armrest
Lock Lever
Detent Bar

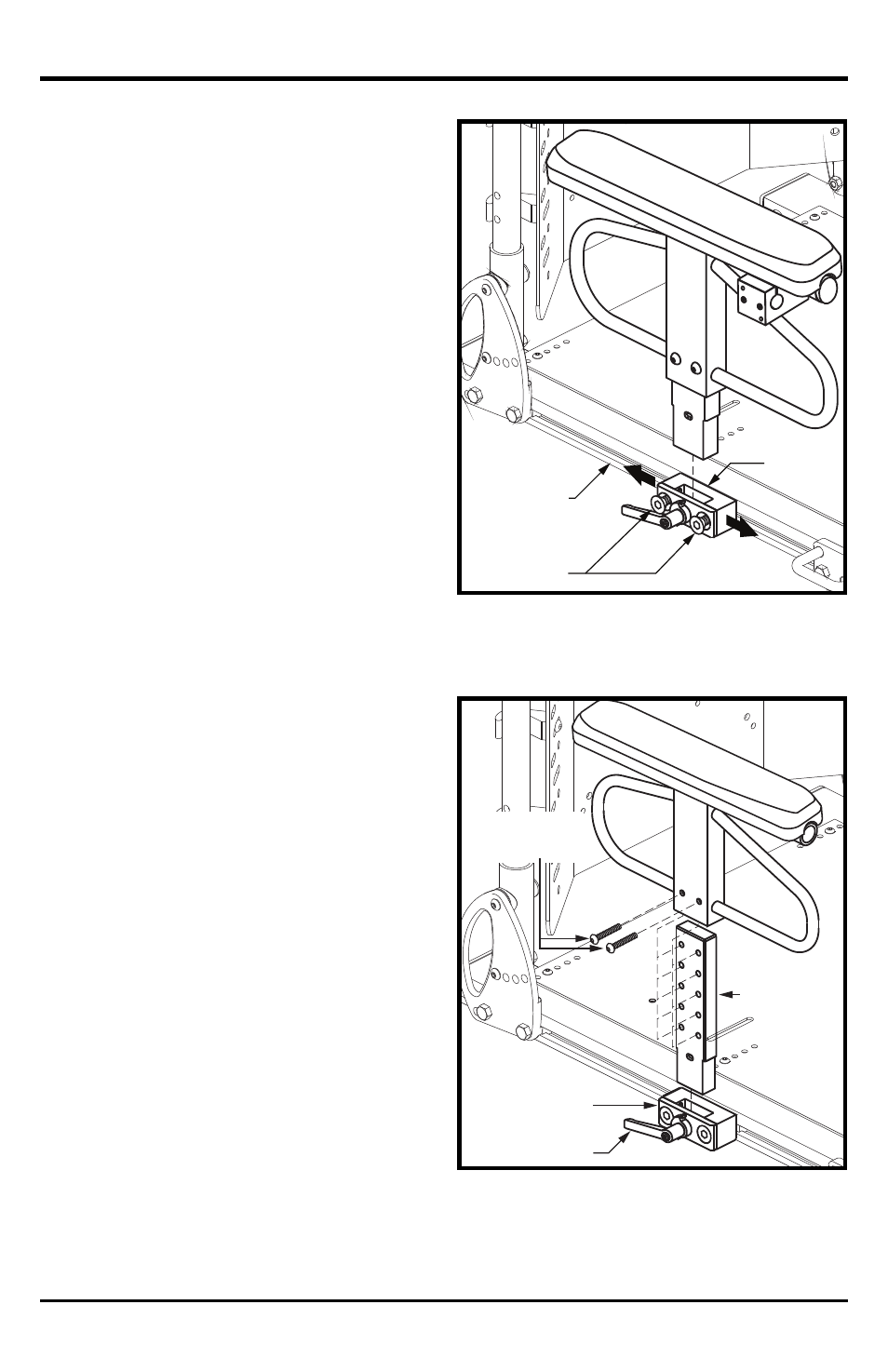

Figure 22. Heavy Duty Drop-In
Armrest Height Adjustment
To adjust the armrest height:
1. Rotate the armrest lock lever
rearward and remove the arm-
rest from the armrest lock. See
figure 22.
2. Remove the two (2) button head
cap screws from the side of the
armrest.
3. Slide the armrest up or down the
detent bar to the desired height.
4. Reinstall the button head cap
screws to the side of the arm-
rest.
5. Install the armrest in the armrest
lock and rotate the lock lever
forward.
6. If necessary, repeat for the other
armrest. Figure 21. Heavy Duty Drop-In
Armrest Position Adjustment
