26 Basic Operation Instructions
Synergy Seat www.pridemobility.com

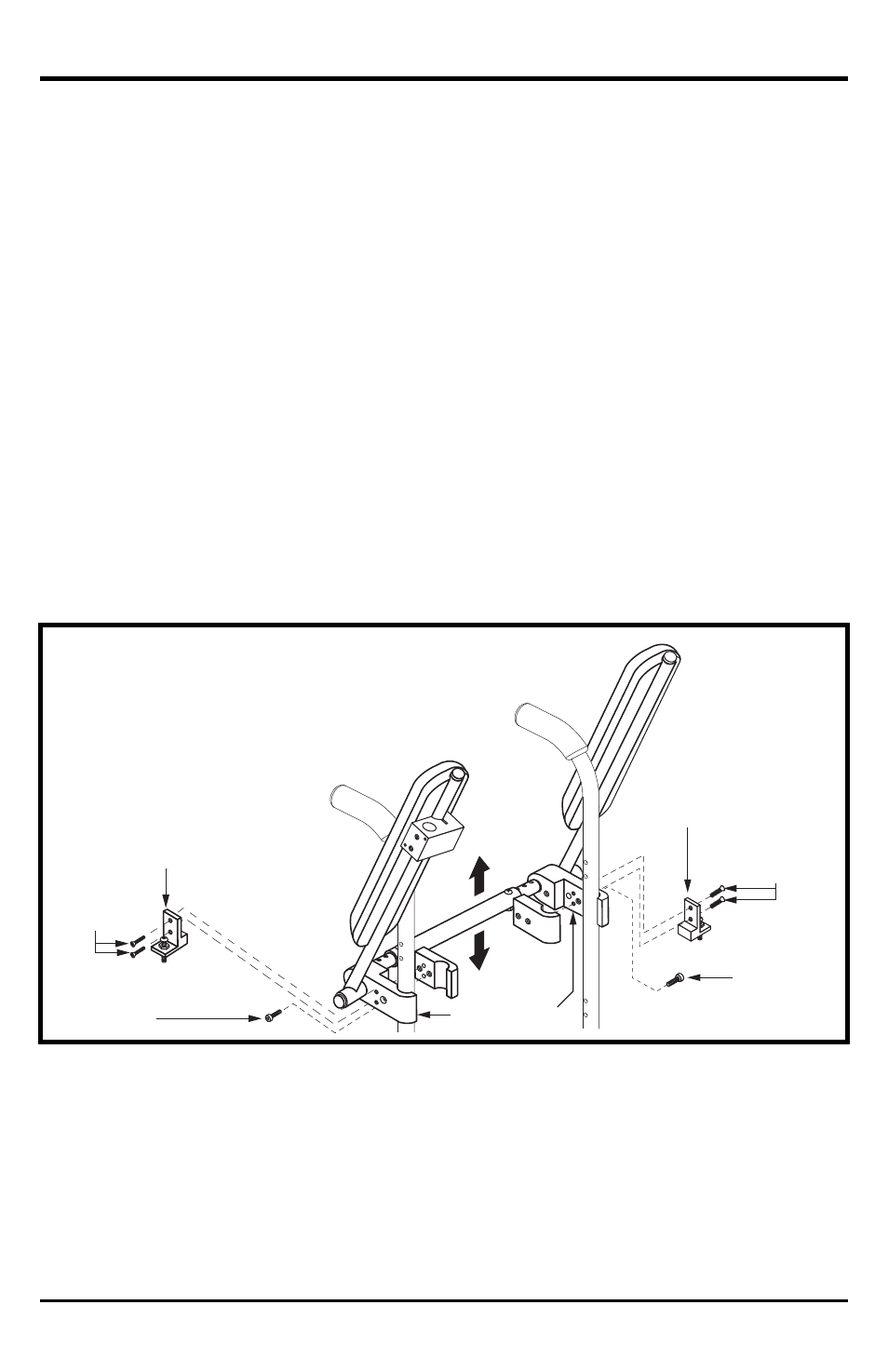

Figure 19. Flip-Up Armrest Height Adjustment
Flat Head
Screws
Amrest Angle
Support Bracket
Socket Head
Cap Screw
Socket Head
Cap Screw
Flat Head
Screws
Amrest Angle
Support Bracket
Armrest Clamp
To adjust the armrest height:
1. Move the armrests up and out of the way.
2. Loosen the jam nut located on the armrest angle support bracket. See
figure 18.
3. Remove the button head screw and jam nut from the armrest angle sup-
port bracket. See figure 18.
4. Remove the two (2) flat head screws from the armrest angle support
bracket, then remove the bracket. See figure 19.
5. Remove the socket head cap screw from the armrest clamp. See figure 19.
6. Raise or lower the armrests to the desired height.
7. Reinstall the socket head cap screw to the armrest clamp. See figure 19.
8. Replace the armrest angle support bracket, then reinstall and tighten the
two (2) flat head screws. See figure 19.
9. Reinstall and tighten the button head screw to the armrest angle support
bracket, then tighten the jam nut. See figure 18.
10. Move the armrests down to position.
