Basic Operation Instructions 27
www.pridemobility.com Synergy Seat
Heavy Duty Drop-In Armrests
The Heavy Duty Drop-In Armrests are attached to the chair with an armrest
locking mechanism that is fastened to the side rails of the Synergy Seat.
These armrests can be removed for easy transfer onto and off of the power
chair. The position of the armrest on the chair, as well as the overall height
of the armrest, can also be adjusted.
To remove the armrest assembly:
1. Rotate the armrest lock lever rearward. See figure 20.
2. Lift up the armrest assembly.
To install the armrest assembly:
1. Place the armrest assembly into
the armrest lock. See figure 20.
2. Rotate the armrest lock lever
forward.
To adjust the armrest position:
1. Rotate the armrest lock lever
rearward and remove the arm-
rest from the armrest lock. See
figure 20.
2. Loosen the flat head screws that
fasten the armrest lock to the
seat base side rail. See figure 21.
3. Slide the armrest lock forward
or rearward along the seat base
side rail.
4. Tighten the flat head screws.
5. Install the armrest in the armrest
lock. See figure 21.
6. Repeat for the other side, if nec-
essary.

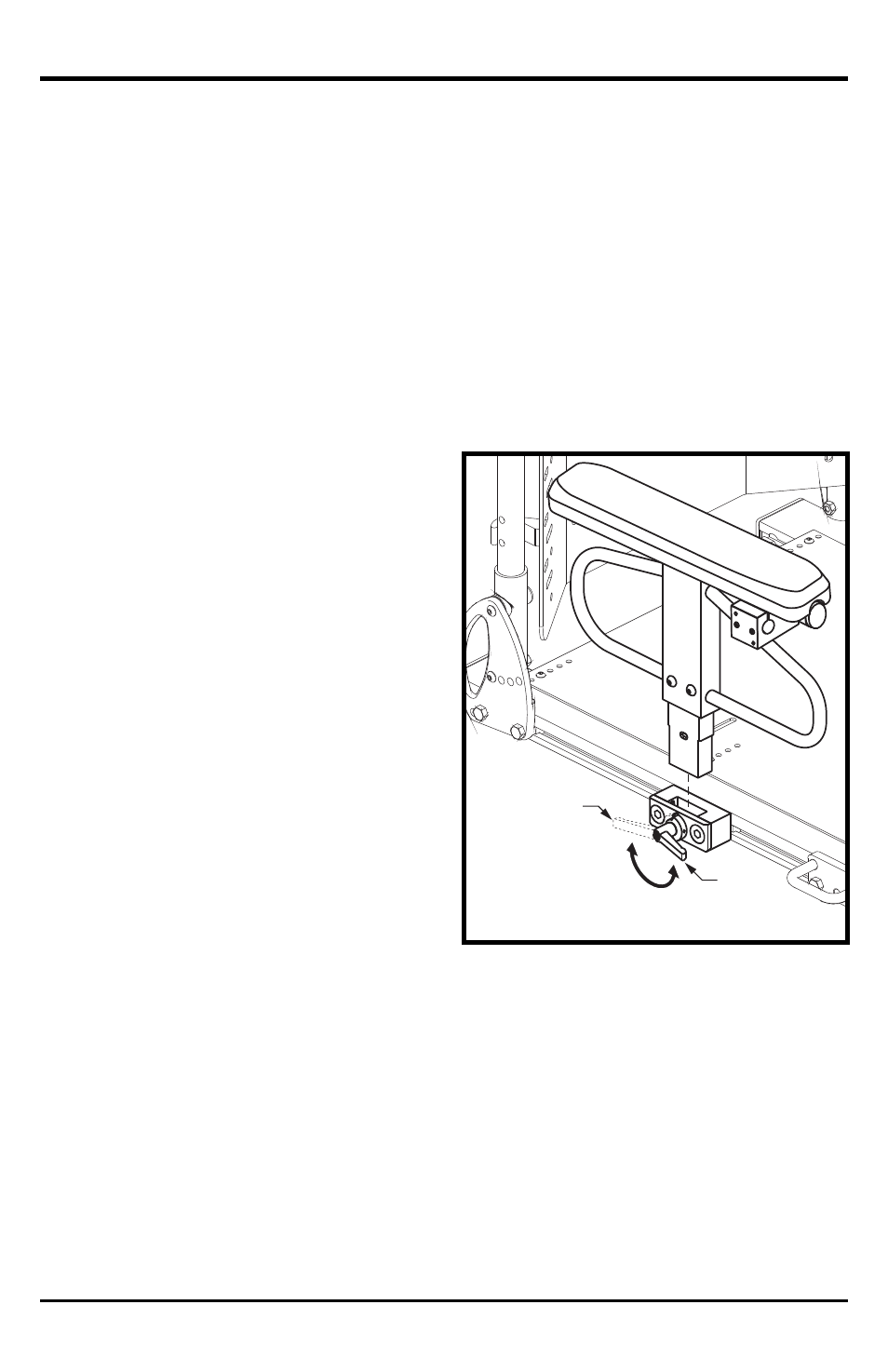

Figure 20. Heavy Duty Drop-In
Armrest Removal/Installation
Unlocked
Postion
Locked
Position
