65
Chapter 4: Management with WebPAM PRO
This chapter describes using WebPAM to monitor and manage your RAID
system. This chapter is divided into sections for major WebPAM components as
shown above.
VTrak Status Indicators
Even though WebPAM PRO offers comprehensive monitoring of VTrak, the LED
indicators on the VTrak unit provide important status information.
When the power is switched on, the LEDs on the front of the VTrak will light up.

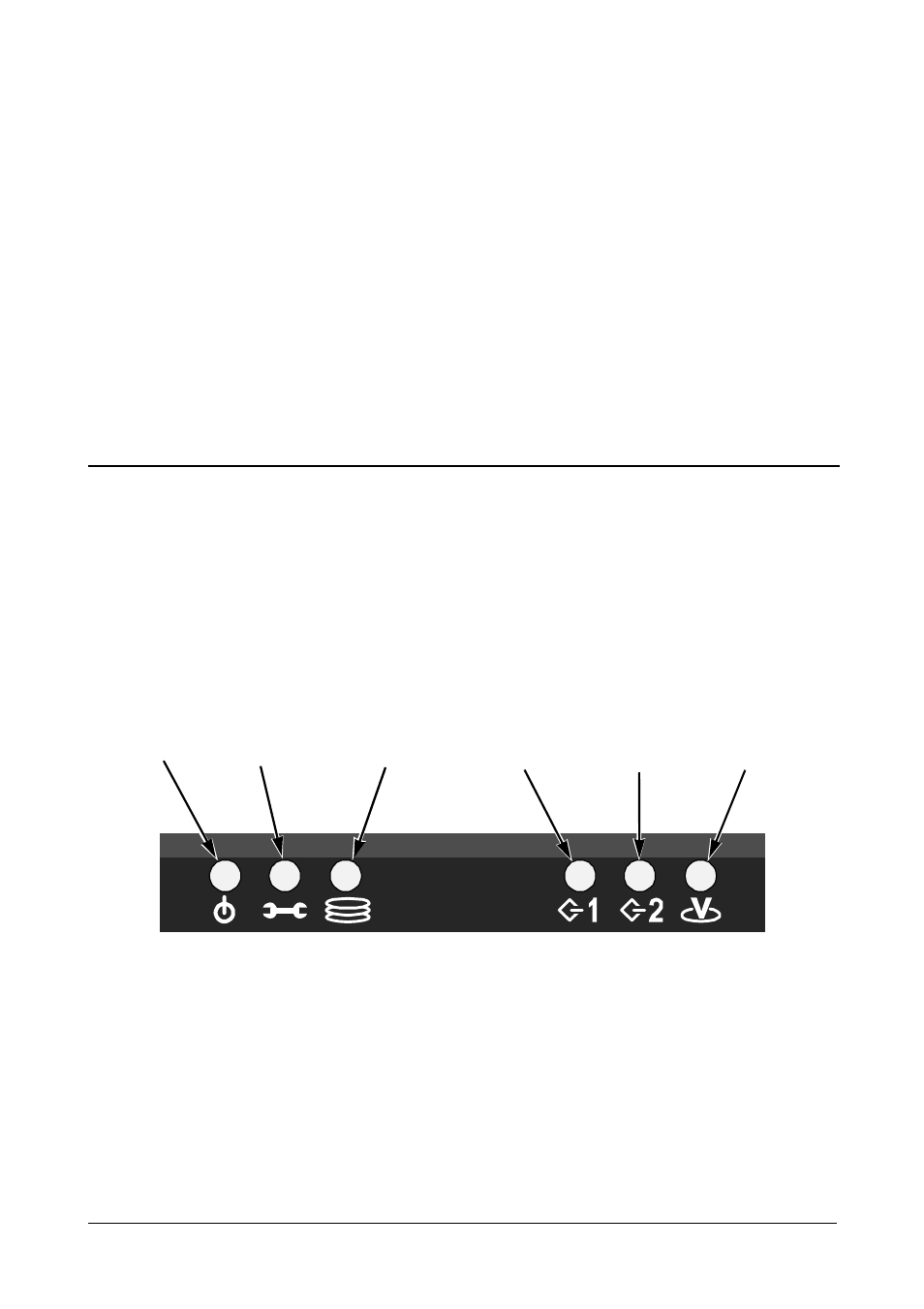

Figure 1. VTrak 15110 Front Panel LEDs
When boot-up is finished and the VTrak is functioning normally:
•
Controller LED blinks green once per second for five seconds, goes dark for
five seconds, then blinks green once per second for five seconds again.
• Power, FRU and Disk Array LEDs display green continuously.
• SCSI LEDs flash green if there is activity on that channel.
See the table below.
• VTrak Status Indicators (below)
• Drive Status Indicators (page 66)
• Audible Alarm (page 67)
• Log-in/Log-out (page 68)
• Subsystem Management (page 71)
• User Management (page 77)
• Software Management (page 87)
• Subsystem Management (page 92)
• VTrak Management (page 95)
• SCSI Management (page 97)
• Network Management (page 99)
• Service Management (page 100)
• Controllers (page 102)
• Enclosures (page 104)
• Disk Arrays (page 110)
• Spare Drives (page 127)
• Logical Drive Summary (page 130)
Power
FRU
Status
Disk Array
Status
SCSI-1
Activity
SCSI-2
Activity
Controller
Heartbeat
