Select
Load Amps from the Meters menu to see a real-time bar graph of the output
current of the UPS. The graph shows the current for each phase.

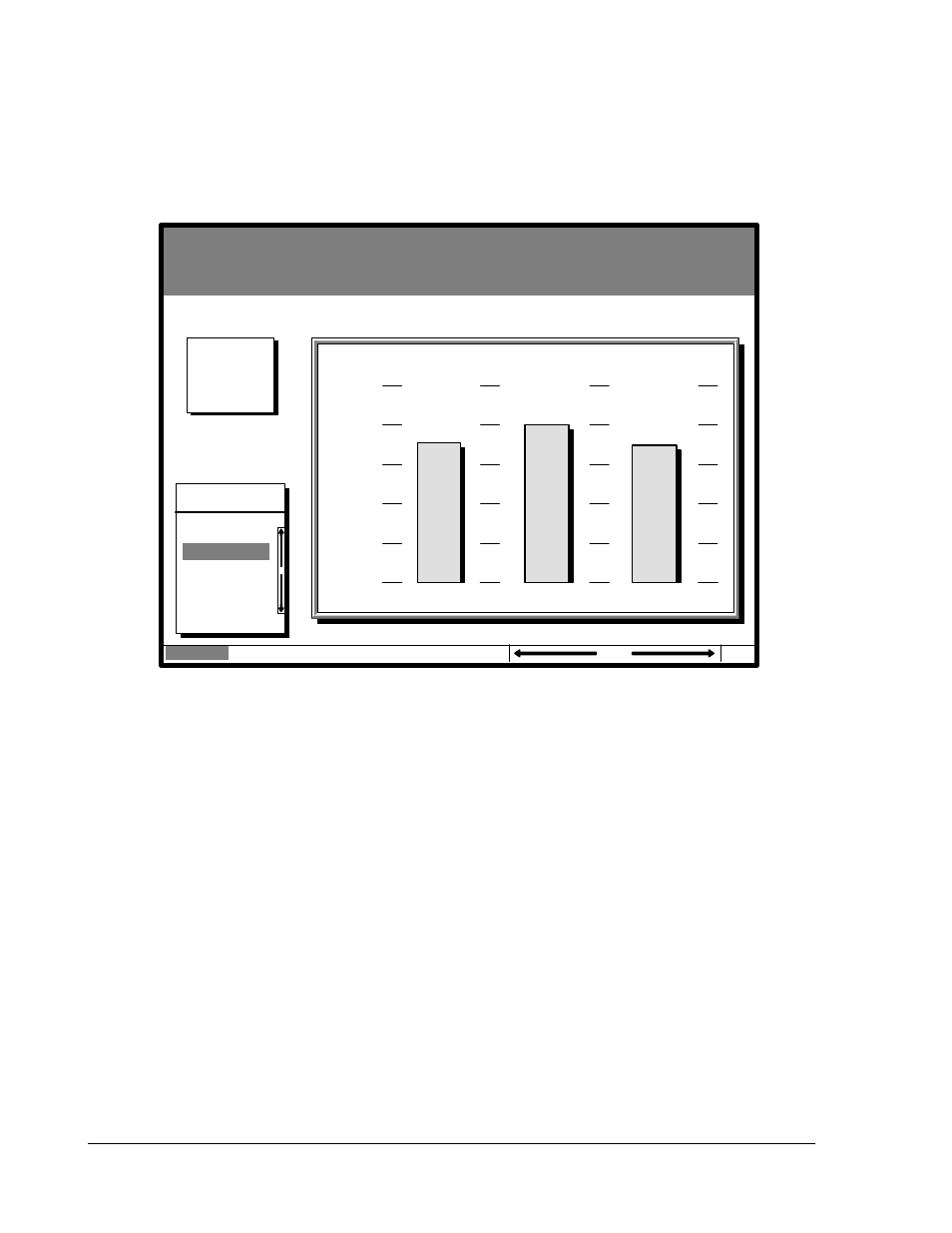

Figure 26 shows the Load Amps Meters screen.
Uninterruptible Power System
System Normal
Alarm:
None
Notice: None
Meters
System
Load Amps
Events Statistics Graphics Setup
Meters
Output Current
125%
100%
75%
50%
25%
0%
Phase A
Phase B
Phase C
04 MAY 1998
14:25:45
Battery
100%
Percent
Figure 26. Load Amps Meters Screen
