Installing the harsh environment ups system – Powerware 5075 kVA User Manual
Page 21
13
Powerware BPIII Harsh Environment UPS 50--75 kVA Installation and Operatio
n
164201261 Rev. F 111503
Installing the Harsh Environment
UPS System
After the UPS system is unpacked and moved to the final installation location, the
UPS and Environmental Cabinets are ready to be joined. Once the cabinets are

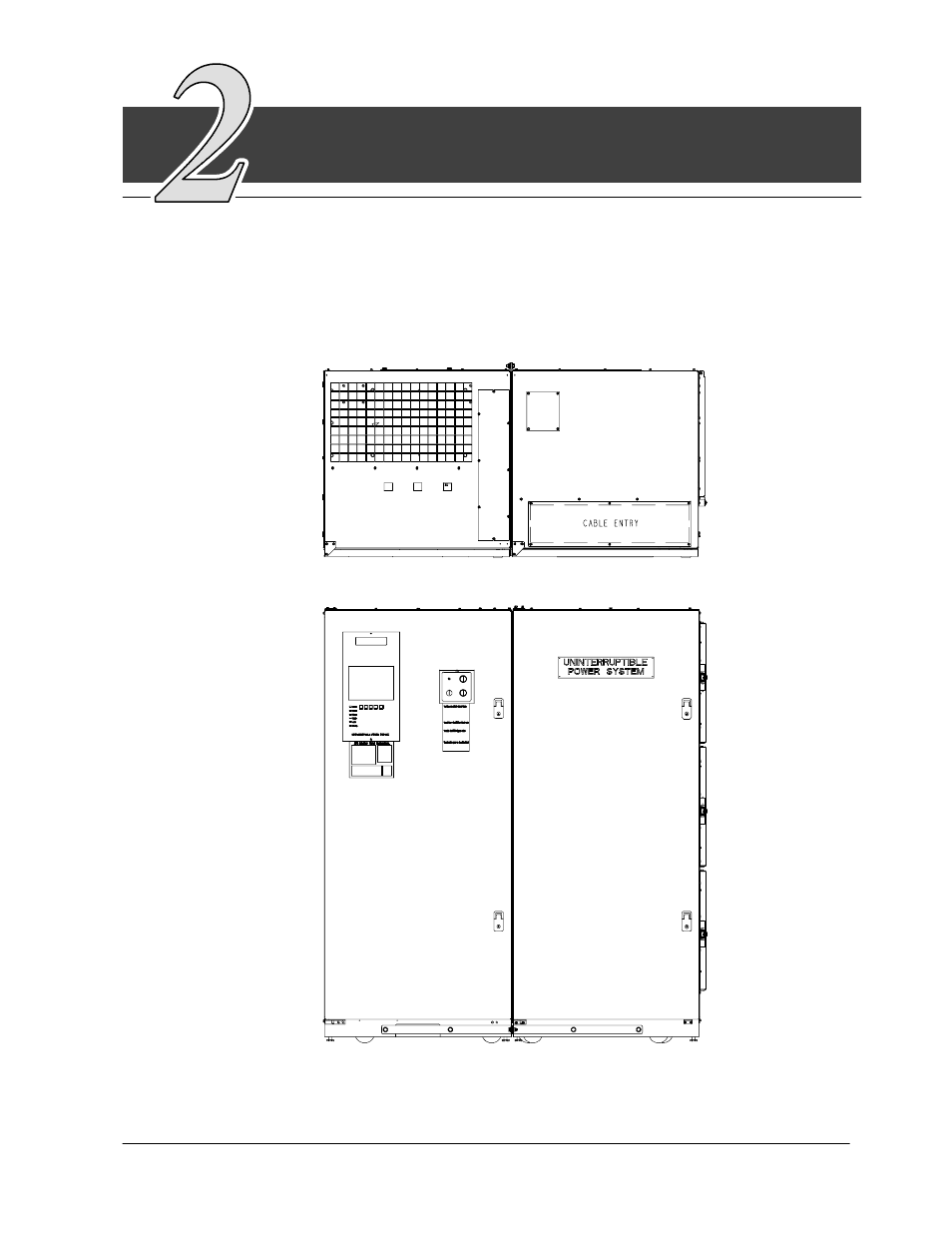

joined, internal and external wiring is installed. Figure 4 shows the UPS and
Environmental cabinets assembled. The top view shows the cable entry plate in
the Environmental cabinet.
TOP VIEW
FRONT VIEW
Figure 4. UPS and Environmental Cabinets
