Powerware 5075 kVA - Manual (Page 34)

26 Powerware BPIII Harsh Environment UPS 50--75 kV Installation and Operation
164291261 Rev. F 111503
(ON COMMUNICATIONS
PANEL OF THE UPS)
DB---9 CONNECTOR
TB1 TB2

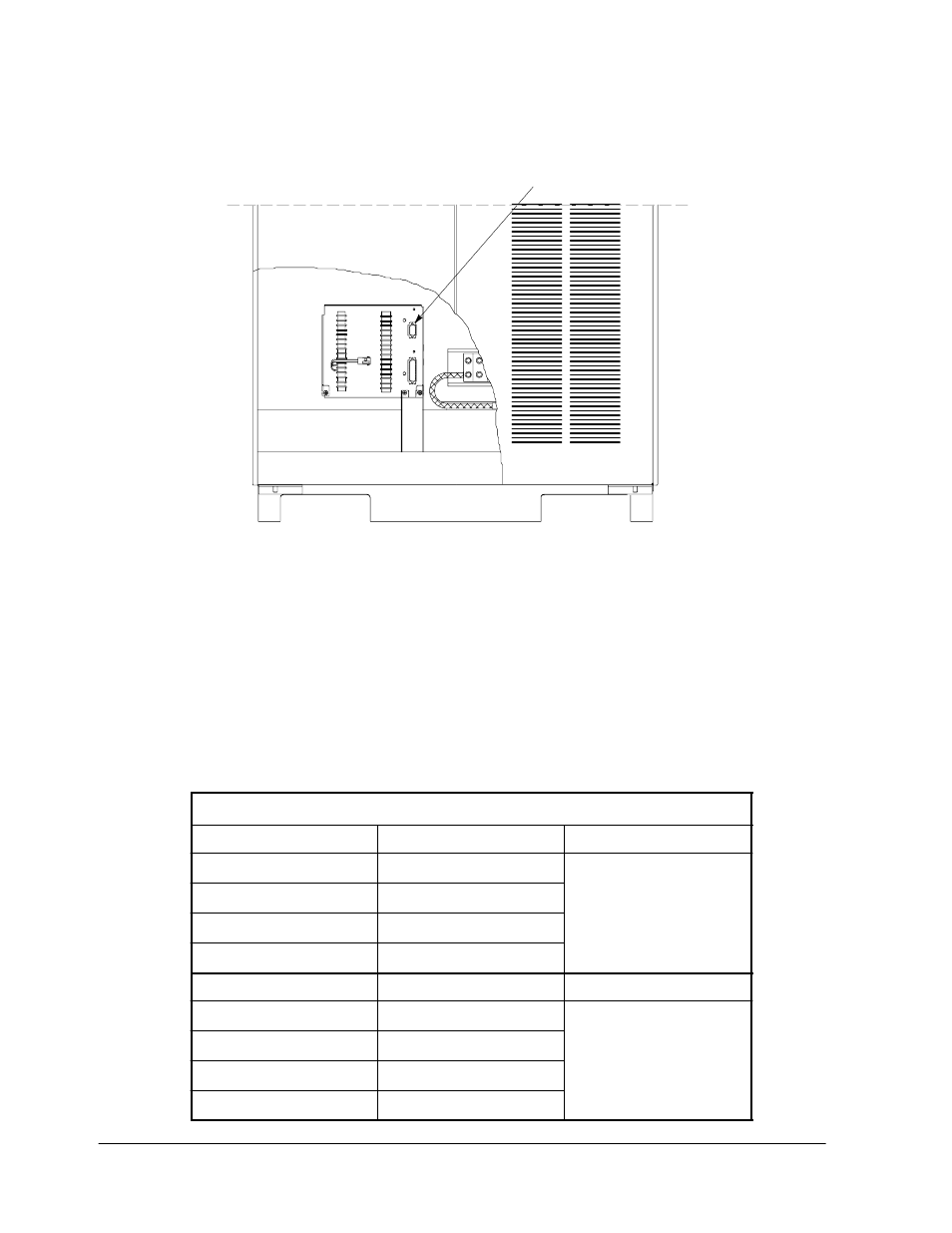

Figure 9. Wiring an RMP to the UPS
4. Connect RMP wiring to the terminal block using terminations shown in Table D.
Table D. RMP Wire Terminations
From RMP A To UPS Remarks
TB1---4 TB3---1
TWISTED WIRES (4)
TB1---5 TB3---2
TWISTED WIRES (4)
1---2 TURNS PER
TB1---6 TB3---3
1 2 TURNS PER
3 INCHES
TB1---7 TB3---4
From RMP B (if used) To UPS Remarks
TB1---4 TB3---5
TWISTED WIRES (4)
TB1---5 TB3---6
TWISTED WIRES (4)
1---2 TURNS PER
TB1---6 TB3---7
1 2 TURNS PER
3 INCHES
TB1---7 TB3---8
