Communications panel, Optional) – Powerware 5075 kVA User Manual
Page 141
TB1
BLDG ALARM 1
BLDG ALARM 4
BLDG ALARM 5
1
2
3
4
5
6
7
8
9
15
10
11
14
13
12
TB2
BLDG ALARM 2
BLDG ALARM 3
BLDG ALARM 6
1
2
3
4
5
6
7
8
9
15
10
11
14
13
12
RS232
RS485
ON BYPASS
BATTERY CONTACTOR CLOSED
RELAY 2 NO
ON INV
RELAY 2 NC
RELAY 1 NO
RELAY 1 NC
BLDG ALARM 1 RTN
BLDG ALARM 4 RTN
BLDG ALARM 5 RTN
BLDG ALARM 2 RTN
BLDG ALARM 3 RTN
BLDG ALARM 6 RTN
REMOTE EPO
REMOTE EPO RTN
ON BYPASS RTN
BATTERY CONT RTN
ON INV RTN
NOTICE RTN
ALARM RTN

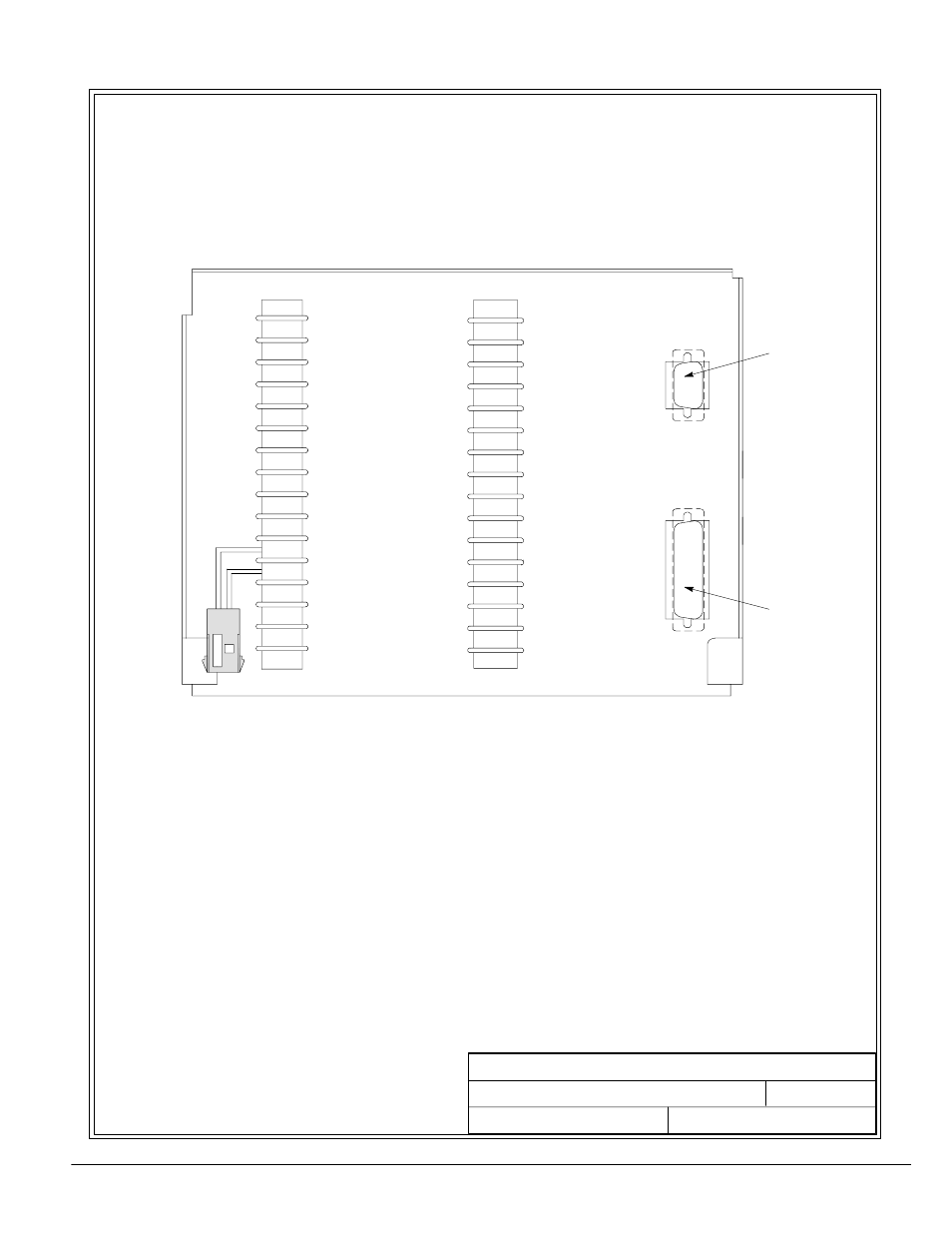

Communications Panel
DESCRIPTION:
DATE:
DRAWING NO:
8 of 11
INSTALLATION NOTES
SHEET:
REVISION: E
093001
(Optional)
164201261---1
A---9
Powerware BPIII Harsh Environment UPS 50--75 kVA Installation and Operatio
n
164201261 Rev. F 111503
NOTE:
Not all building alarms are available for customer use. For remote EPO,
use an isolated normally open contactor switch (24VDC, 20ma minimum)
connected at TB2-1 and TB2-2.
