Chapter 2 - Setting Up Your System Hardware
© Polycom, Inc. 2 - 3
S-video provides superior video quality, and is recommended.
2. Connect the system’s audio outputs to the monitor’s audio inputs using the
red and white connectors on the monitor cable.
After you have finished setting up the system, you will need to configure the
monitor’s behavior. You can find information on how to do this in
Configuring
the TV Monitor on page 4-7 .
Connecting the System to the Network
This section tells you how to physically connect the system to the LAN or to ISDN
(if you purchased the optional BRI network interface).
However, before you can use the LAN or any networking capabilities, you must
configure your system for network use. Follow the steps in the remaining sections
of this chapter to finish physically connecting your system. Then, proceed on to the
next chapter,
Configuring Network Use , to get information about network
configuration.

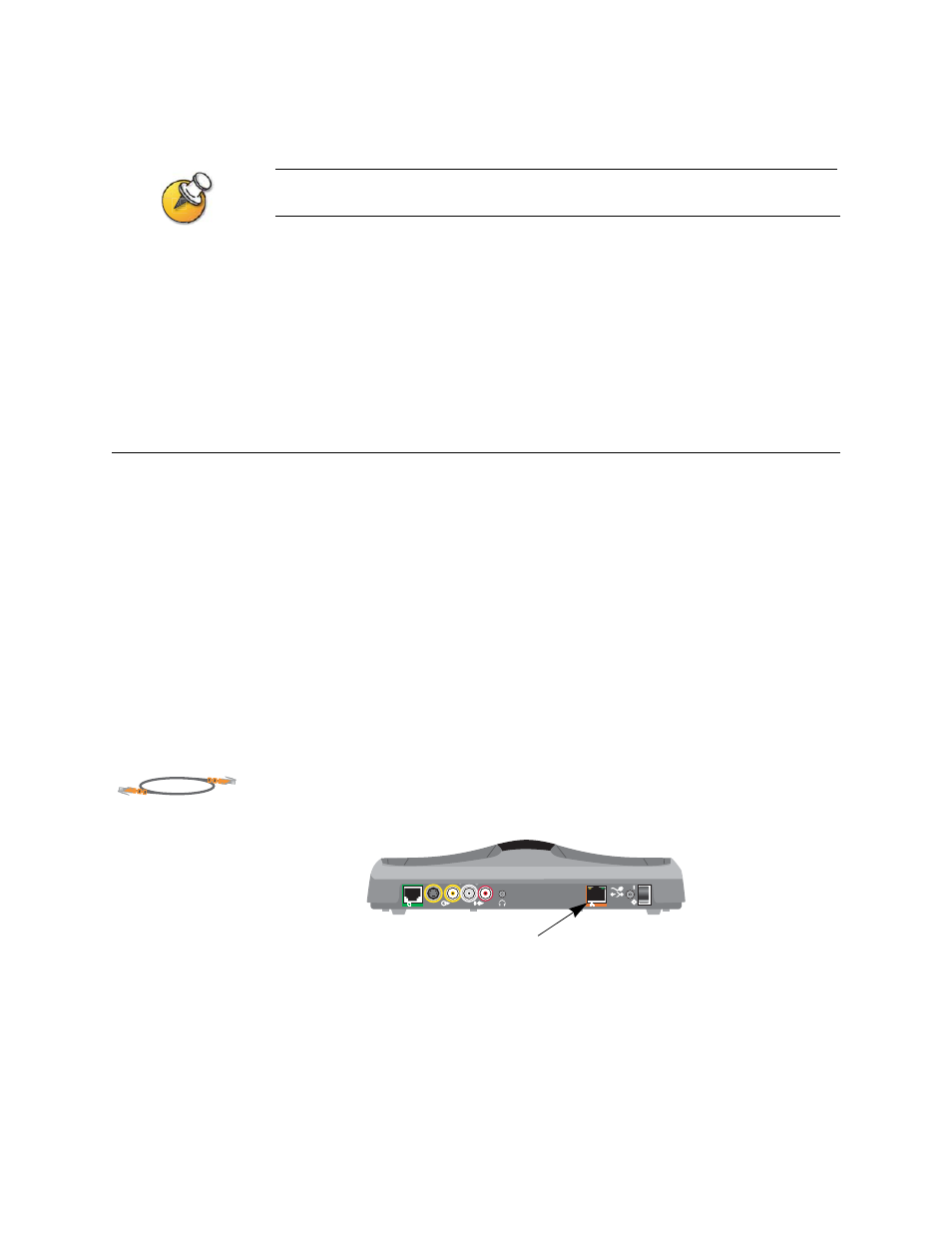

Connecting the LAN Cable
The V500 system comes standard with a LAN cable.
To connect the system to the LAN:
1. Connect the LAN cable to the LAN connector on the back of the system.
2. Connect the other end of the LAN cable to the LAN.
DC IN 12V
LAN BRI
LAN connector
