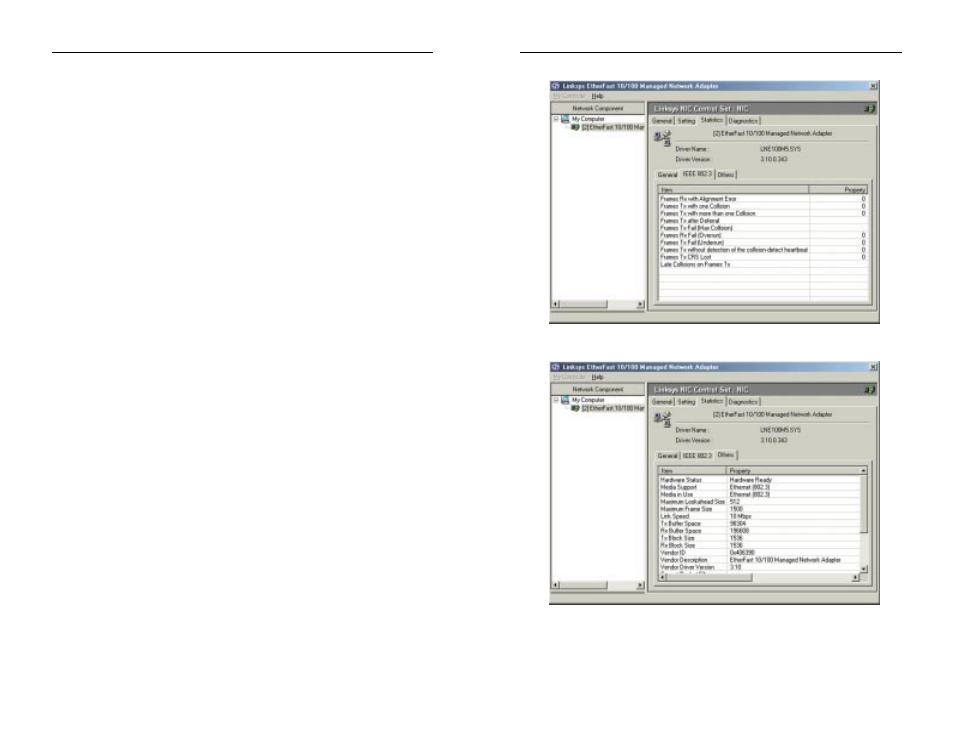

Shown in Figure 11-16, the “IEEE 802.3” statistics are as follows:
Frames Rx with Alignment Error This shows the amount of packets received
with frame alignment errors.
Frames Tx with one Collision This shows the amount of frames transmitted
that have received an initial collision with
other frames.
Frames Tx with
more than one Collision
This shows the amount of frames transmitted
that have received multiple collisions with
other frames.
Frames Tx after Deferral This shows the number of frames success-
fully transmitted after the Adapter defers
transmission at least once.
Frames Tx Fail (Max Collision) This shows the number of frames not trans-
mitted due to excessive collisions.
Frames Rx Fail (Overrun) This shows the number of frames not
received due to overrun errors on the
Adapter.
Frames Tx Fail (Underrun) This shows the number of frames not trans-
mitted due to underrun errors on the
Adapter.
Frames Tx without detection
of the collision-detect heartbeat
This shows the number of frames success-
fully transmitted without detection of the
collision-detect heartbeat.
Frames Tx CRS Lost This shows the number of times the CRS
signal has been lost during packet transmis-
sion.
Late Collisions on Frames Tx This shows the number of collisions detect-
ed after the normal window.
