Linksys ETHERFAST LNE100M - Manual (Page 19)

Instant EtherFast ® Series

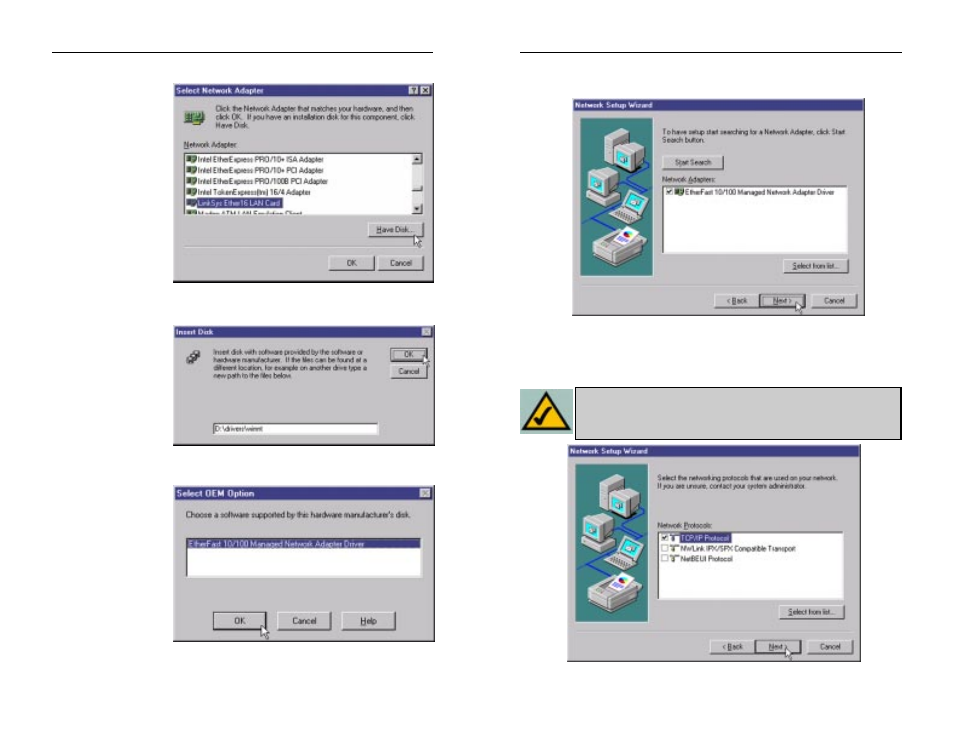

4. At the Select Network Adapter screen, shown in Figure 7-4, click the Have
Disk button and
insert the Setup
Utility CD into
your CD-ROM
drive.
5. At the Insert Disk screen, shown in Figure 7-5, type D:\drivers\winnt into
the field on your
screen and click the
OK button.
6. Highlight the EtherFast 10/100 Managed Network Adapter Driver entry
in the window that
appears, shown in
Figure 7-6, and
click the OK but-
ton.
29
7. The adapter will be added to the list of Network Adapters on the Network
Setup Wizard screen, shown in Figure 7-7. Click the Next button.
8. Make sure that on the following screen, shown in Figure 7-8, there is a
check mark beside TCP/IP Protocol. Uncheck any others that may be
checked, then click the Next button to continue.
Note: If you install the TCP/IP protocol, refer to your Windows NT docu-
mentation when installation steps appear that aren’t listed in this User
Guide. Linksys does not provide technical support for the configuration or
troubleshooting of the TCP/IP protocol.
Figure 7-7
Figure 7-8
30
Figure 7-4
Figure 7-5
Figure 7-6
EtherFast ® 10/100 Managed Network Adapter
