TK-7150
34

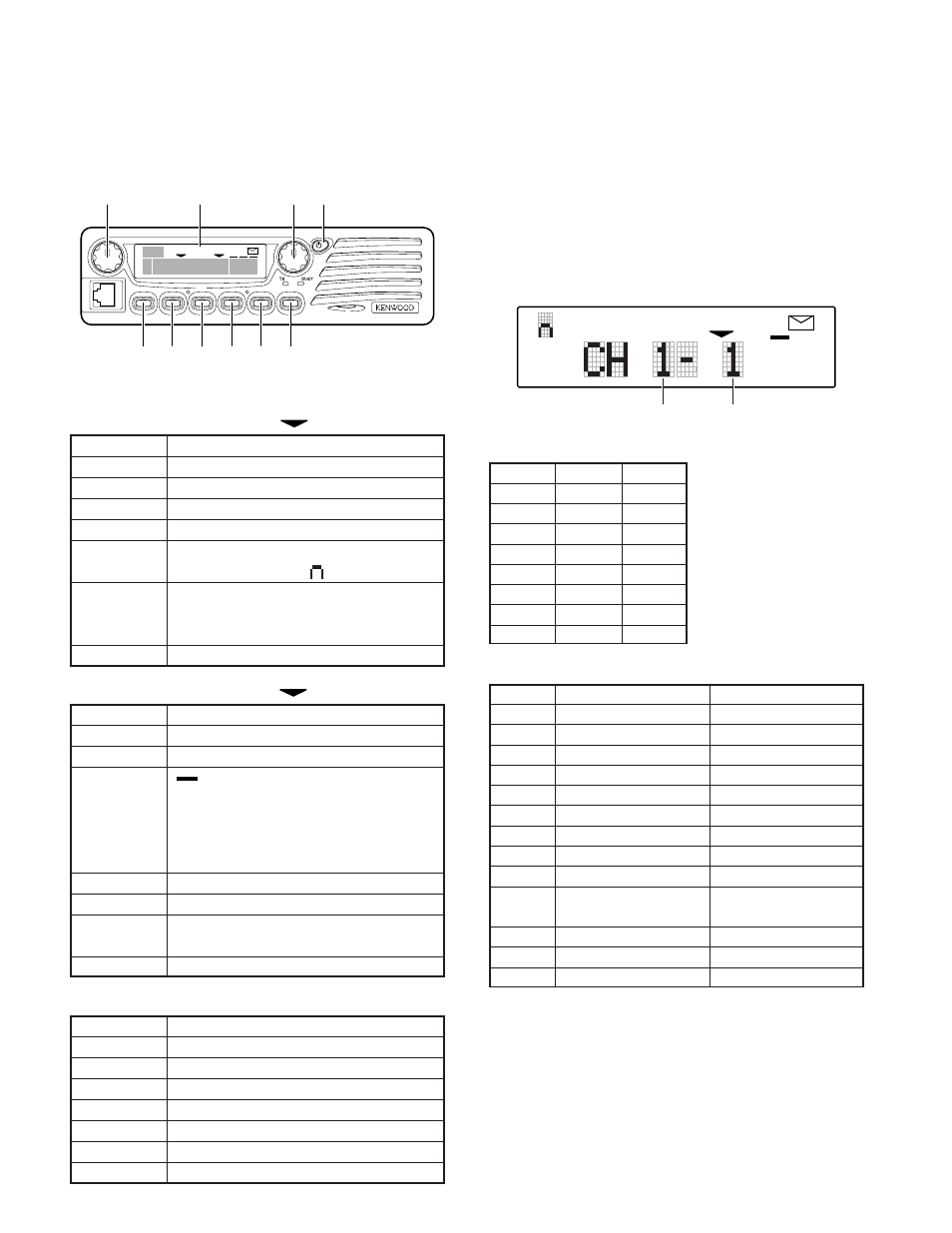

ADJUSTMENT
1. Key Functions
1-1. Front Panel
SCN SP OP OS A B MON CALL
Volume Display Selector Power switch
PF5 PF1 PF2 PF4 PF3 PF6
1-2. Panel Test Mode
■ When the Function is Off (
does not appear)
Controls Function
PF1 Test channel down
PF2 Test channel up
PF3 Test mode/Tuning mode changeover
PF4 Noise squelch off
PF5 Wide/Narrow changeover
When the narrow is on, appears
PF6 After pressing PF6 key, press PF3, PF4, PF5,
and PF6 to activate the following functions
(See the table below)
Selector knob Signalling up/down
■ When the Function is On (
appears)
Controls Function
PF1 No function
PF2 No function
PF3 appears on the right side
When the Sig No.9 (DTMF) is on, DTMF [9] is
transmitted.
When the Sig No.12 (MSK) is on, the
contineous MSK tone is transmitted.
PF4 Compander on (OP icon appears) / off
PF5 Beat shift on (B icon appears) / off
PF6 MSK speed changeover (1200/2400bps). When
MSK speed is 2400 bps, the Mail icon appears.
Selector knob Test signalling up/down
1-3. Panel Tuning mode
Controls Function
PF1 Tuning item down
PF2 Tuning item up
PF3 Test mode/Tuning mode changeover
PF4 Noise squelch off
PF5 Wide/Narrow changeover
PF6 Tuning value write→Move to the next tuning item
Selector knob Tuning value up/down
2. Panel Test Mode
The transceiver’s transmission output, receiver sensitiv-
ity, and other items are measured and QT, DQT, 2-Tone and
DTMF signalling is decoded in this mode.
2-1. To Enter the Panel Test Mode
Hold down [PF1] and turn the power switch on to enter
this mode. The test frequency channel and test signalling
channel will be displayed.
Test frequency CH Test signalling CH
OP B
2-2. Test Frequency Channel (MHz)
CH RX TX
1/FC 155.15 155.00
2/FL 136.15 136.00
3/FH 173.85 174.00
4 145.55 145.50
5 164.55 164.50
6 155.00 155.00
7 155.20 155.20
8 155.40 155.40
2-3. Test Signalling Channel
No. Decode Encode
1 None None
2 LTR LTR
3 QT 67Hz QT 67Hz
4 QT 151.4Hz QT 151.4Hz
5 QT 210.7Hz QT 210.7Hz
6 QT 254.1Hz QT 254.1Hz
7 DQT 023N DQT 023N
8 DQT 754I DQT 754I
9 DTMF decode (159D) DTMF encode (159D)
10 2-Tone decode 2-Tone encode
A : 304.7Hz, B : 3106.0Hz A : 304.7Hz, B : 3106.0Hz
11 Single tone 979.9Hz Single tone 979.9Hz
12 MSK MSK
13 None Single tone : 1kHz
3. Panel Tuning Mode
The transceiver is adjusted in this mode.
3-1. To Enter the Panel Tuning Mode
Press the [PF3] key in the panel test mode.
The adjustment items, the frequency and signalling, other
than the maximum deviation and sensitivity, return to the val-
ues that were effective for the test frequency channel and
test signalling channel before entering the panel tuning
mode.
