MAINTENANCE WORK ON CHASSIS AND ENGINE
177
9.72

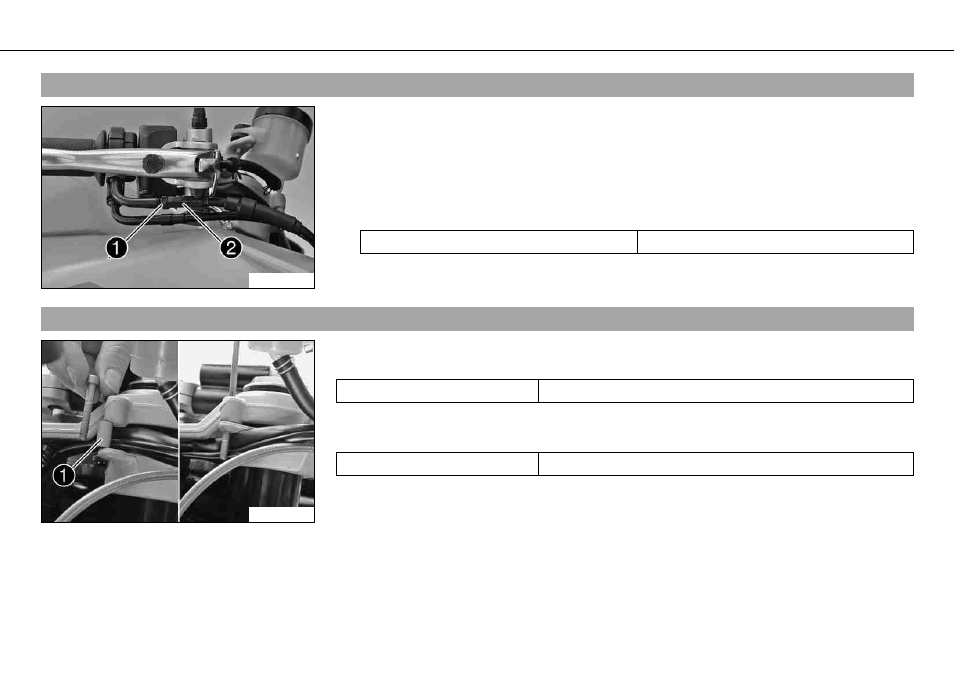

Adjusting gas Bowden cable x
700317-01
– Move the handlebar to the straight-ahead position.
– With the diagnostics tool KTM DIA, place the control motor for the throttle valve position
into the neutral position.
– Loosen the counter nut  .
– Adjust the gas Bowden cable with the adjusting screw
 .
Guideline
Play in gas Bowden cable 3… 5 mm (0.12… 0.2 in)
– Tighten the counter nut
 .
9.73
Handlebar height
700319-12
By removing or inserting the spacing sleeves  , you can set the handlebar height at two
different positions.
Long distance sleeve  15 mm (0.59 in)
With distance sleeves, the handlebar stub is positioned low for sports use. Removing the
distance sleeves gives a more upright sitting position.
Standard Low position with distance sleeve
