Checking headlight adjustment
400420-10

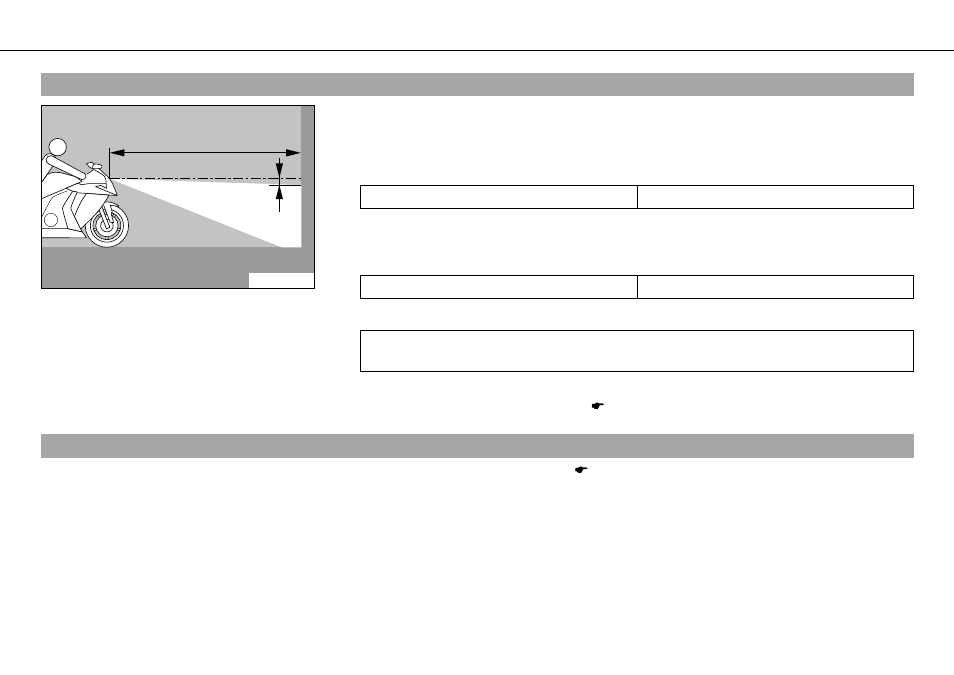

– On a light-colored wall behind a horizontal area, make a mark as high as the center of
the low beam headlight.
– Make another mark at a distance of  under the first mark.
Guideline
Distance  5 cm (2 in)
– Stand the motorcycle at distance  in from of the wall and switch on the ignition and
the low beam.
Guideline
Distance  5 m (16 ft)
– Check the headlight adjustment.
The border between light and dark must be exactly at mark  when the motorcycle is
operational and complete with rider.
» If the boundary between light and dark does not meet specifications:
– Adjust the headlamp range. ( S. 167)
9.64
Adjusting headlamp range
– Check the headlight adjustment. ( S. 167)
