MAINTENANCE WORK ON CHASSIS AND ENGINE
114
700307-01
– Remove screws
.
700308-01

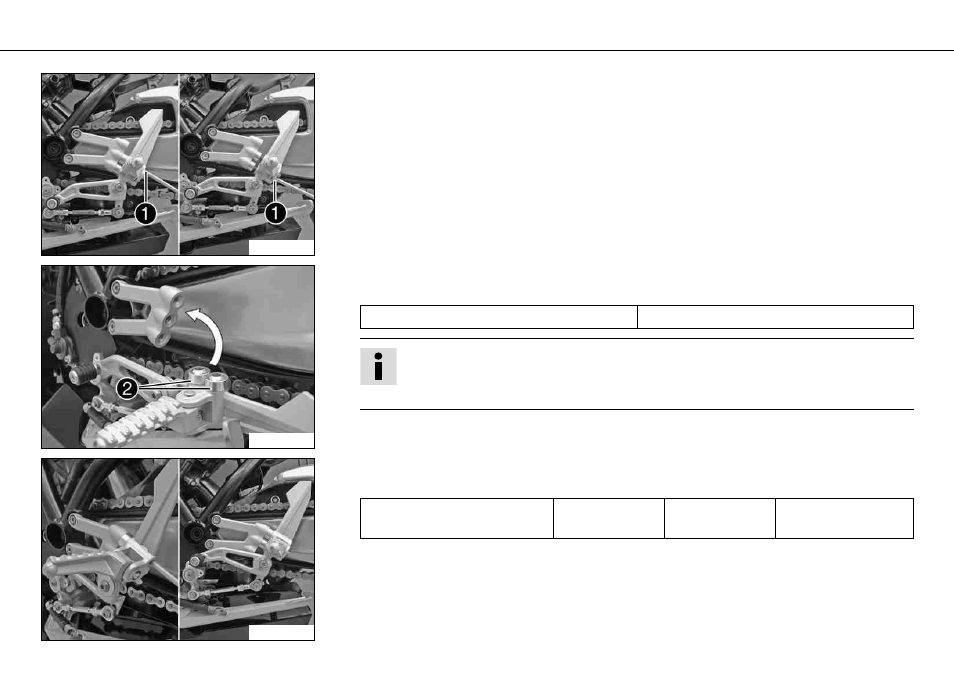

– Position the footrest bracket with spacers
and screws.
Guideline
Standard
Lower position
Info
The adjustable footrest bracket enables a more comfortable lower footrest posi-
tion or a sporting upper footrest position.
700306-01
– Mount and tighten screws.
Guideline
Screw, front footrest bracket M8
25 Nm
(18.4 lbf ft)
Loctite
®
243™
