MAINTENANCE WORK ON CHASSIS AND ENGINE
118
400479-10

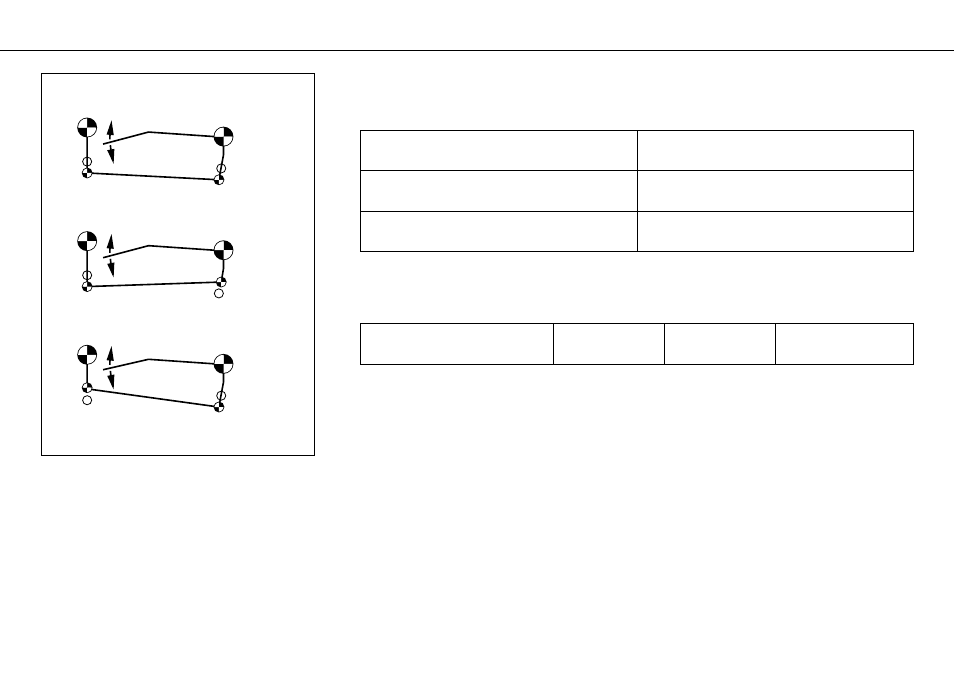

– The shift rod can be mounted both on the shift lever variably at an upper or lower posi-
tion, and on the reverse gear change of the shift shaft in two different positions.
Guideline
Standard  Shift lever: lower drill hole,
shift shaft: lower drill hole
Shift power low, shift way long  Shift lever: lower drill hole,
shift shaft: upper drill hole
Shift power high, shift way short  Shift lever: upper drill hole,
shift shaft: lower drill hole
– Position the shift rod.
– Tighten the screws.
Guideline
Screw, shift rod M6 12 Nm
(8.9 lbf ft) Loctite ® 243™
