MAINTENANCE WORK ON CHASSIS AND ENGINE
159
700296-01

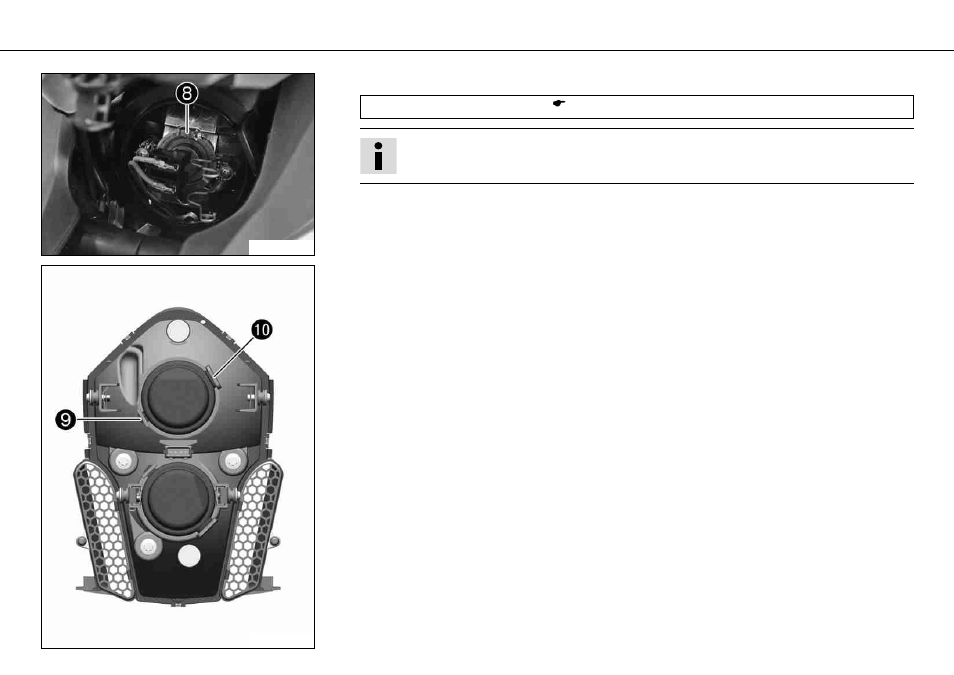

– Position the new headlight bulb in the headlight housing.
Low beam / high beam (H7) (
Info
Insert the headlight bulb so that the lug
is positioned in the cut-out.
– Position the retaining clamp.
– Position the plug-in connector.
400422-10
– Position the lug
of the lamp cover in the notch. Engage the latch
.
– Check lighting function.
