First Installation

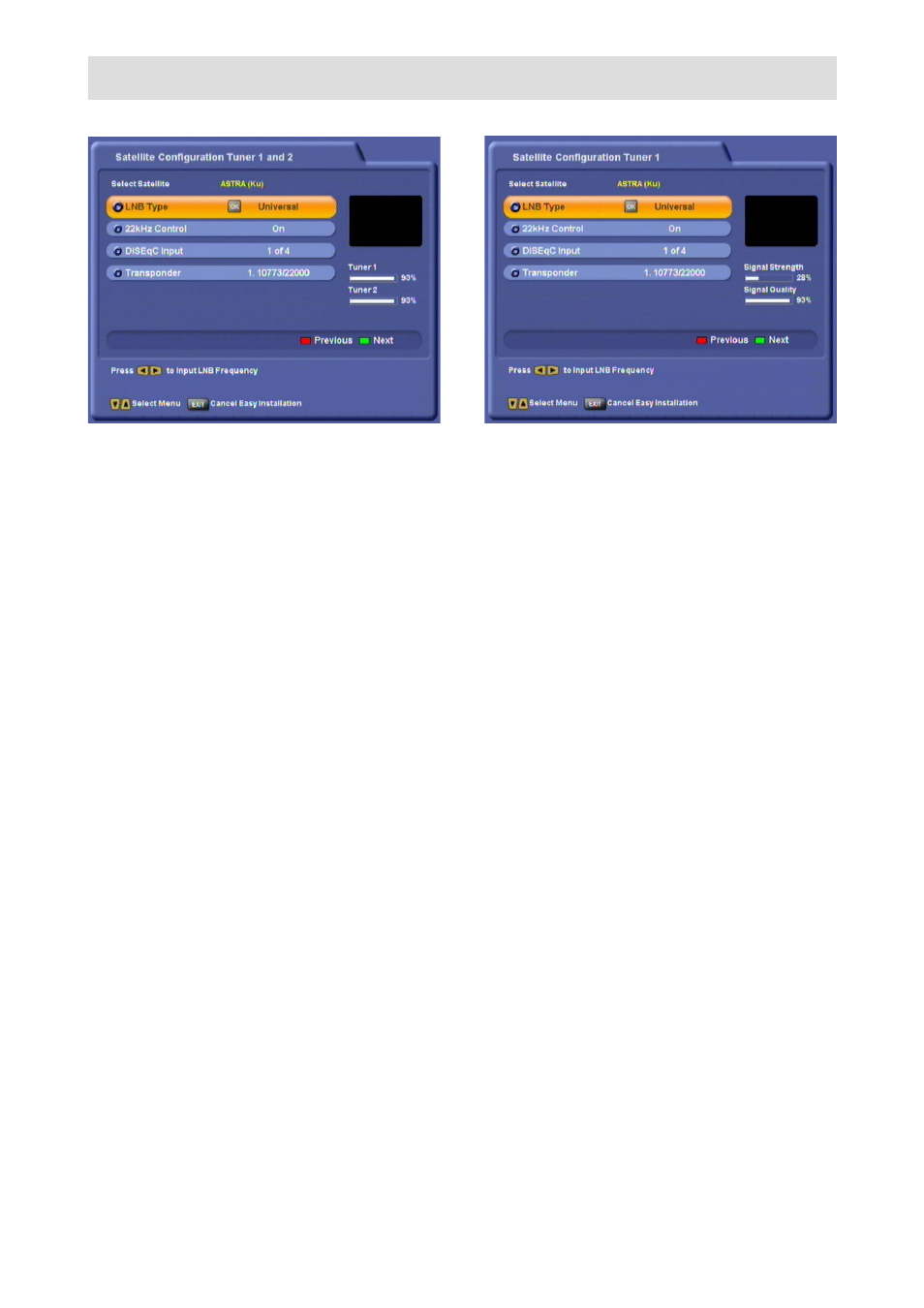

Press the  and  buttons here to
select the satellite configuration for each satellite
you previously selected.
LNB Type:
Press

to open the LNB Settings menu. Use the
 buttons to make your selection. To confirm
your selection use the  buttons to select “OK”
and press  .
- Single (LNB Low frequency 9750 MHz)
- Dual (LNB Low frequency 9750 MHz + LNB High
frequency 10600 MHz)
- Universal (LNB Low frequency 9750 MHz + LNB
High frequency 10600 MHz + Limit frequency
11700 MHz)
22kHz Control:
Use the

buttons to make your selection (On/
Off). The 22kHz signal is needed to switch LNBs in
multifeed reception and to switch between Low and
High band.
DiSEqC™ Input:
Use the

buttons to make your selection.
- 1 of 4: for the first satellite of the tuner
- 2 of 4: for the second satellite of the tuner
- 3 of 4: for the third satellite of the tuner
- 4 of 4: for the fourth satellite of the tuner
- Mini A: Tone-burst control signal 1 for the first
satellite of the tuner (if reception system not
DiSEqC™ compatible)
- Mini B: Tone-burst control signal 2 for the second
satellite of the tuner (if reception system not
DiSEqC™ compatible)
- Disable: If your reception system is not DiSEqC™
compatible and only one satellite per tuner is
selected.
Press the  and  buttons here to
select the satellite configuration for each satellite
you previously selected.
LNB Type:
Press

to open the LNB Settings menu. Use the
 buttons to make your selection. To confirm
your selection use the  buttons to select “OK”
and press  .
- Single (LNB Low frequency 9750 MHz)
- Dual (LNB Low frequency 9750 MHz + LNB High
frequency 10600 MHz)
- Universal (LNB Low frequency 9750 MHz + LNB
High frequency 10600 MHz + Limit frequency
11700 MHz)
22kHz Control:
Use the

buttons to make your selection (On/
Off). The 22kHz signal is needed to switch LNBs in
multifeed reception and to switch between Low and
High band.
DiSEqC™ Input:
Use the

buttons to make your selection.
- 1 of 4: for the first satellite of the tuner
- 2 of 4: for the second satellite of the tuner
- 3 of 4: for the third satellite of the tuner
- 4 of 4: for the fourth satellite of the tuner
- Mini A: Tone-burst control signal 1 for the first
satellite of the tuner (if reception system not
DiSEqC™ compatible)
- Mini B: Tone-burst control signal 2 for the second
satellite of the tuner (if reception system not
DiSEqC™ compatible)
- Disable: If your reception system is not DiSEqC™
compatible and only one satellite per tuner is
selected.
