43

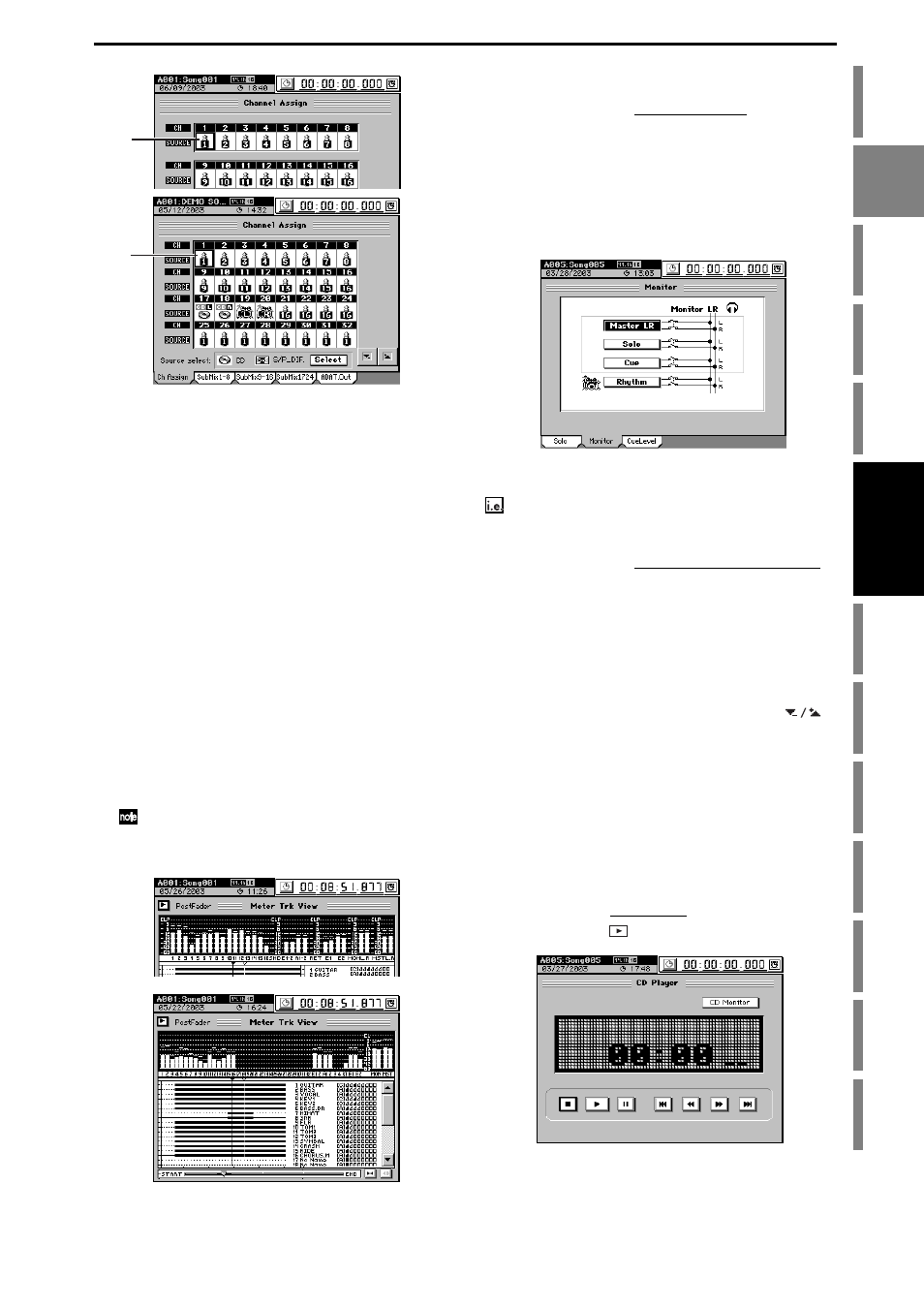

(3) Assign the input to mixer channel 1.
• Set the CH ON/SOLO mode key to CH ON (key lit
green), and turn the channel 1 CH ON/SOLO key on
(key lit orange).
• Set the channel 1 REC/PLAY key to REC (key lit red).
(4) Adjust the input level.
• Press the METER key to display the Meter Trk View
screen.
• Press the Meter Trk Type button to display the Meter
Trk Type
dialog box.
• For “Select Level Meter Position,” select “CH-Input”
as the level meter mode. Then press the OK button to
return to the previous screen.
• Turn the INPUT 1 TRIM knob toward the right while
playing your guitar ; the peak indicator (the LED near
the TRIM knob) will light. Adjust the TRIM knob so
that the indicator does not light red when you play at
your loudest level.
• If the input is too loud, turn on the PAD key.
• The level meter in the Meter Trk View screen will
move in response to the input. Verify that the level
meter does not reach “CLP” when you play at your
loudest level.
When adjusting the input level, you may find it helpful to set
a longer “Peak Hold Time” in the Meter Trk Type dialog
box.
(5) Check the audio.
• Set the channel 1 fader to unity gain (0 dB).
• Access the MIXER, SOLO/MONITOR, “Monitor”
tab page.
• Select “Master LR” and turn it on (highlighted).
• Gradually raise the MASTER fader and the PHONES
VOLUME
knob or the MONITOR LEVEL knob, and
verify that you hear the sound in your headphones or
in the monitor system connected to the MONITOR
OUT
jacks.
Inputting audio from a CD
Assigning audio from the internal CD-R/RW to mixer
channels 1 and 2.
(1) Select the internal CD-R/RW as the audio source.
• Access the MIXER, INPUT/OUTPUT/CH ASSIGN,
“Ch Assign”
tab page.
• Press the Select button, and in the Source select dia-
log box choose “CD.”
• The “Obey Copyright Rules” message will appear.
Carefully read “COPYRIGHT WARNING” (
the owner’s manual, and if you accept the terms, press
the OK button.
Select the channel 1 “SOURCE,” and use the
buttons to select “CD L.” You can also use the value
dial
or the +/– keys to make your selection.
In the same way, select “CD R” for channel 2.
(2) Assign the input to mixer channels 1 and 2.
• Set the CH ON/SOLO mode key to CH ON, and set
the channel 1 and 2 CH ON/SOLO keys to on (keys lit
orange).
• Set the channel 1 and 2 REC/PLAY keys to REC (key lit
red).
(3) Play the CD.
• Access the CD, CD PLAYER, CD Player page.
• Press the play (
) button.
D16XD
D32XD
(2)
(2)
D16XD
D32XD
