Menu Configuration
77
Menus when an Interface Board is inserted

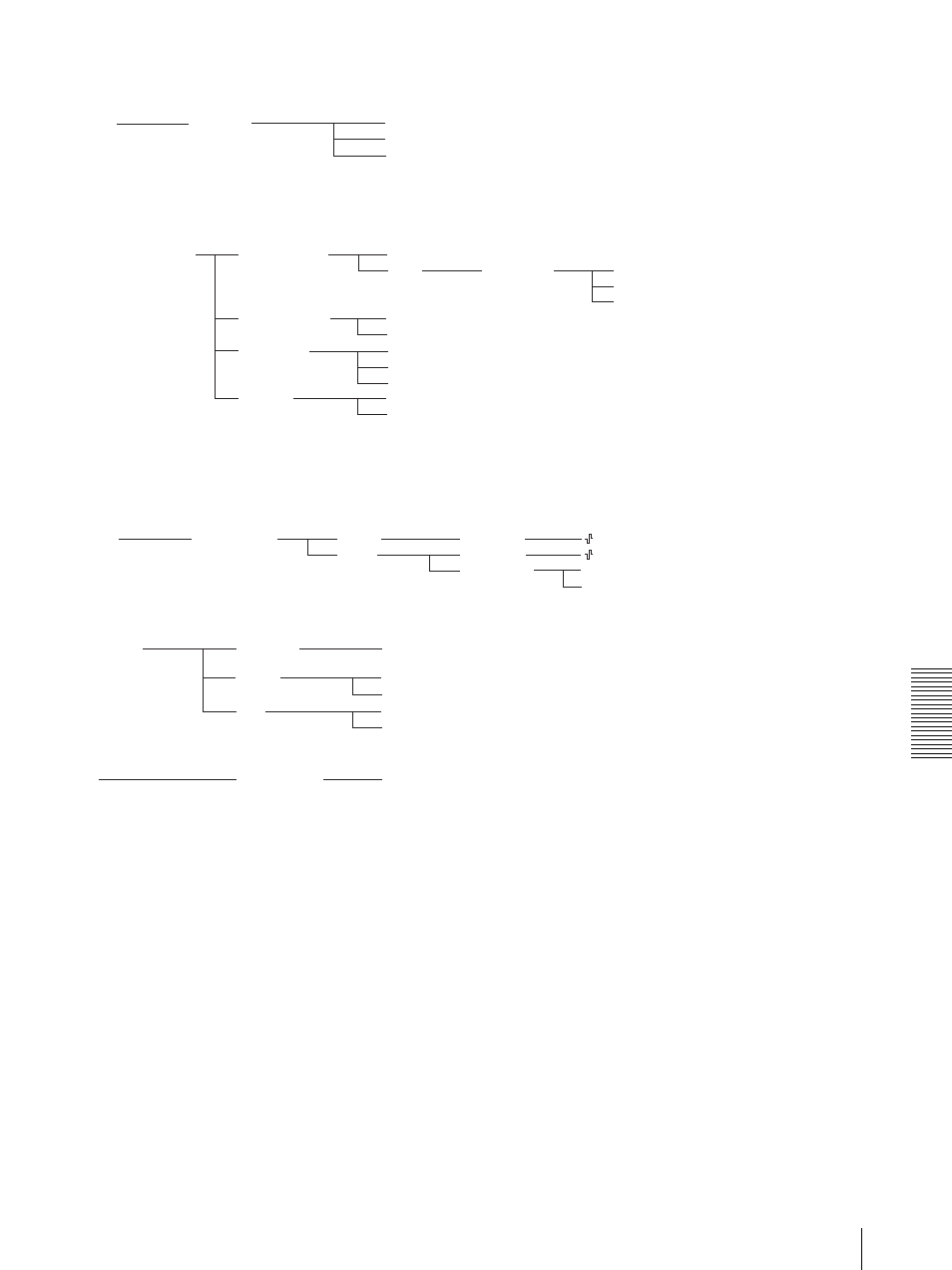

SD-SDI IMG-SIZE 16:9 [LETTER]
4:3 [CROP]
4:3 [SQUEEZE]
(page 39)
DOWN CONVERTER D-SUB OUT 1 YP b P r
RGB ADD SYNC RGB
G
OFF
D-SUB OUT 2 VBS
Y/C
IMG-SIZE 16:9 [LETTER]
4:3 [CROP]
4:3 [SQUEEZE]
SETUP* OFF
ON
(page 39)
* Does not appear when an output signal is 50i format.
HD-SDI ANALOG OUT YP b P r SYNC/VD SYNC, VD
RGB SYNC/VD SYNC, VD
ADD SYNC RGB
OFF
(page 40)
PC-OUTPUT IMG SIZE XGA [CROP], VGA [LETTER], XGA [LETTER],
VGA [CROP], WXGA
SYNC OFF
ON
VD POS
NEG
(page 41)
HDV AUDIO DELAY OFF, 1STEP, 2STEP, 3STEP, 4STEP, 5STEP, 6STEP, 7STEP, 8STEP,
9STEP, 10STEP (page 41)
