System Configuration
15
Using BRC-Z700 Cameras and VISCA-controllable Cameras in the Same
System
This system allows you:
• To operate up to seven cameras supporting the VISCA protocol such as EVI-D30/D30P, EVI-D70/D70P, EVI-D100/
D100P, EVI-HD1, BRC-H700 and BRC-300/300P remotely using a single RM-BR300 Remote Control Unit
• To perform pan/tilt and zoom operations using the joystick
• To control the BRC-Z700 cameras remotely from a distance up to 1,000 m (3,281 feet) by transmitting the video
signal and control signal using the Optical Fiber Cable

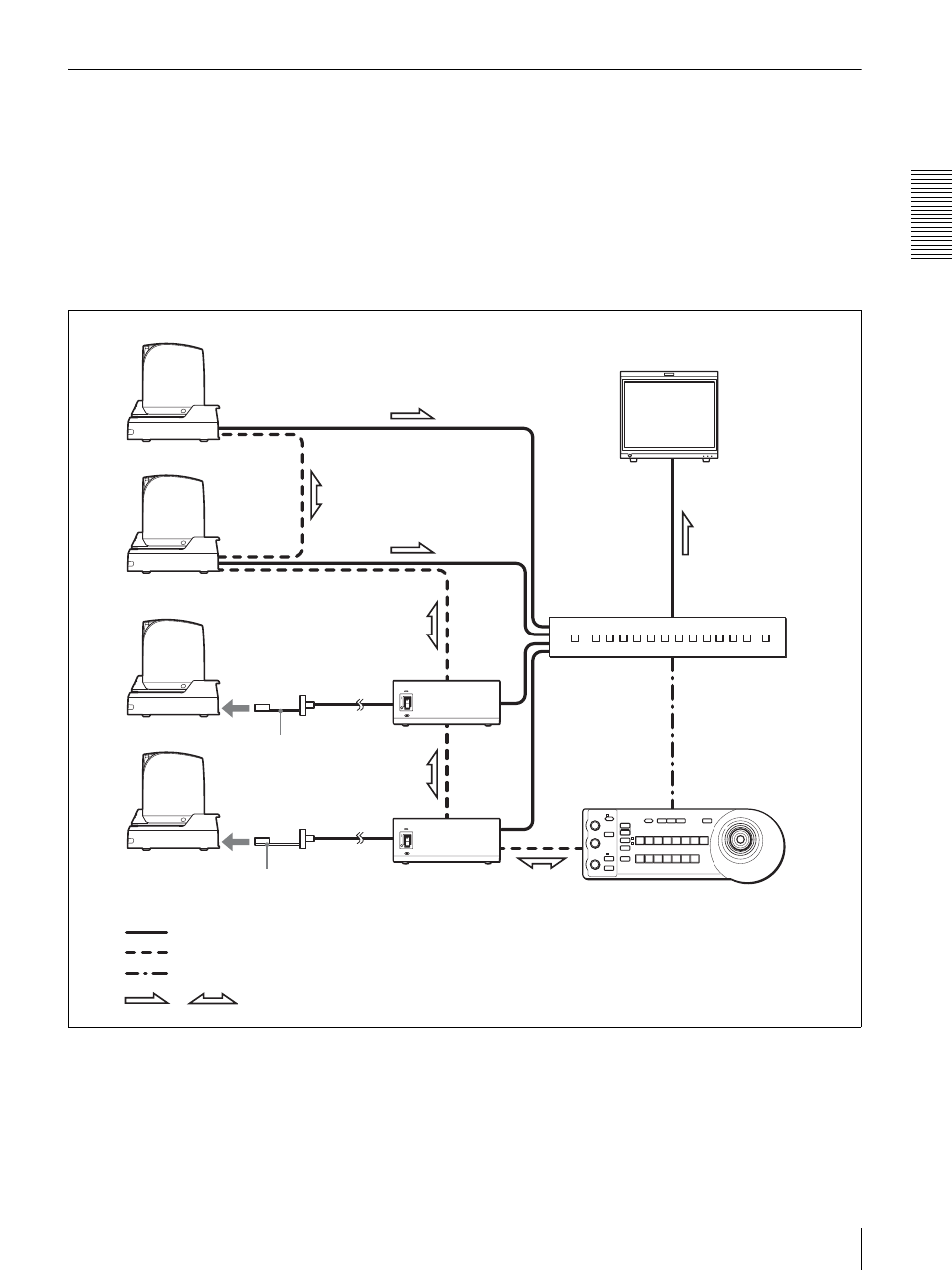

System configuration
,
VISCA-controllable camera
BRC-Z700
BRC-Z700 BRBK-MF1
BRBK-MF1 HD Optical
Multiplex Card
HD video monitor, VTR, etc.
BRU-H700
Video switcher
RM-BR300 Remote Control Unit
CCFC-M100HG
Optical Fiber
Cable
CCFC-M100HG
VISCA-controllable camera
BRU-H700 HD
Optical Multiplex
Unit
Video signal
Remote control (VISCA) signal
Tally/contact signal
Signal flow
