19

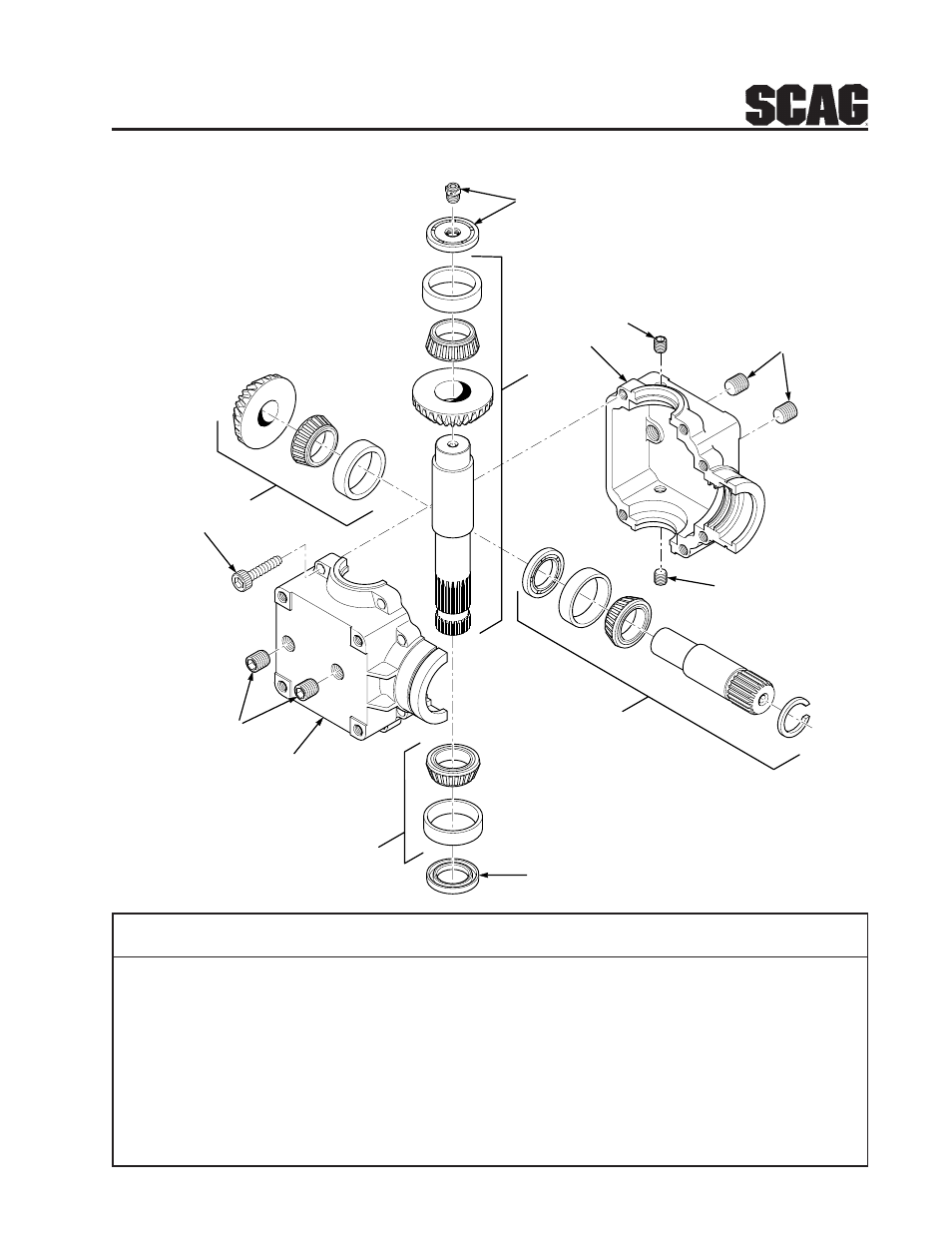

GEARBOX ASSEMBLY (481626-LH & 481627-RH)
Ref. Part.
No. Number
Description
1 SGC00002613 Shaft/Pinion Assembly
2 481628 Assembly, Shaft-Cross-(Used in LH Gearbox)
2A 481629 Assembly, Shaft-Cross-(Used in RH Gearbox)
3 SGC114003002547 Casting, Bottom (Threaded Holes)
4 SGC114004002548 Casting, Top (Non-threaded Holes)
5 SGC109843 Seal 1.00 x 1.50 x 3/16"
6 SGC444687 Plug, 1/8" NPT Socket Head
7 SGC200300 Plug, 1/4" NPT Socket Head
8 SGC103125 Bolt, 5/16-18 x 1.25
9 SGC100305 Assembly, End Plug-5 PSI
390S0130
2
5
6
1
7
6
3
1
8
7
4
2
9
2A
