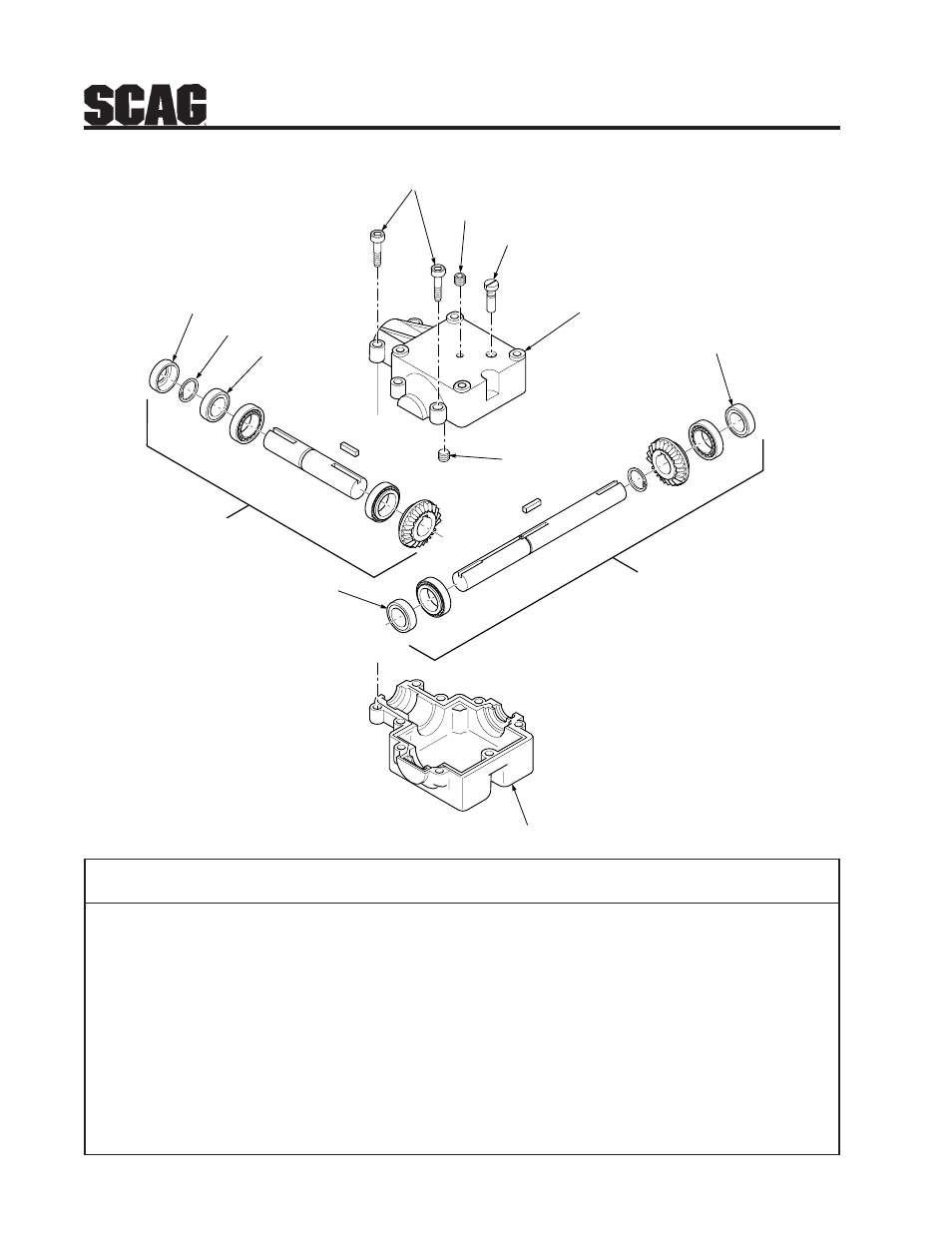

DRIVE GEARBOX
Ref. Part.
No. Number
Description
- 481227 Gearbox, Drive
1 SGC203815 Capscrew, Socket Head, 3/8-16 x 1-1/2"
2 SGC200300 Plug, Socket Head
3 481417 Plug, Dipstick
4 SGC210004002563 Casting, Upper
5 SGC200900002617 Shaft Assembly, Cross
6 SGC209843 Seal - 1"
7 SGC00002616 Shaft Assembly, Pinion
8 SGC00002569 Seal, 1-1/8" x 1-1/2" x 3/6"
9 SGC2000003315 Retaining Ring
10 SGC200302002565 Cup, Retaining Ring
11 SGC210003002828 Casting, Lower
1
2
3
4
5
6
6
7
8
9
10
11
2
A
A
