18

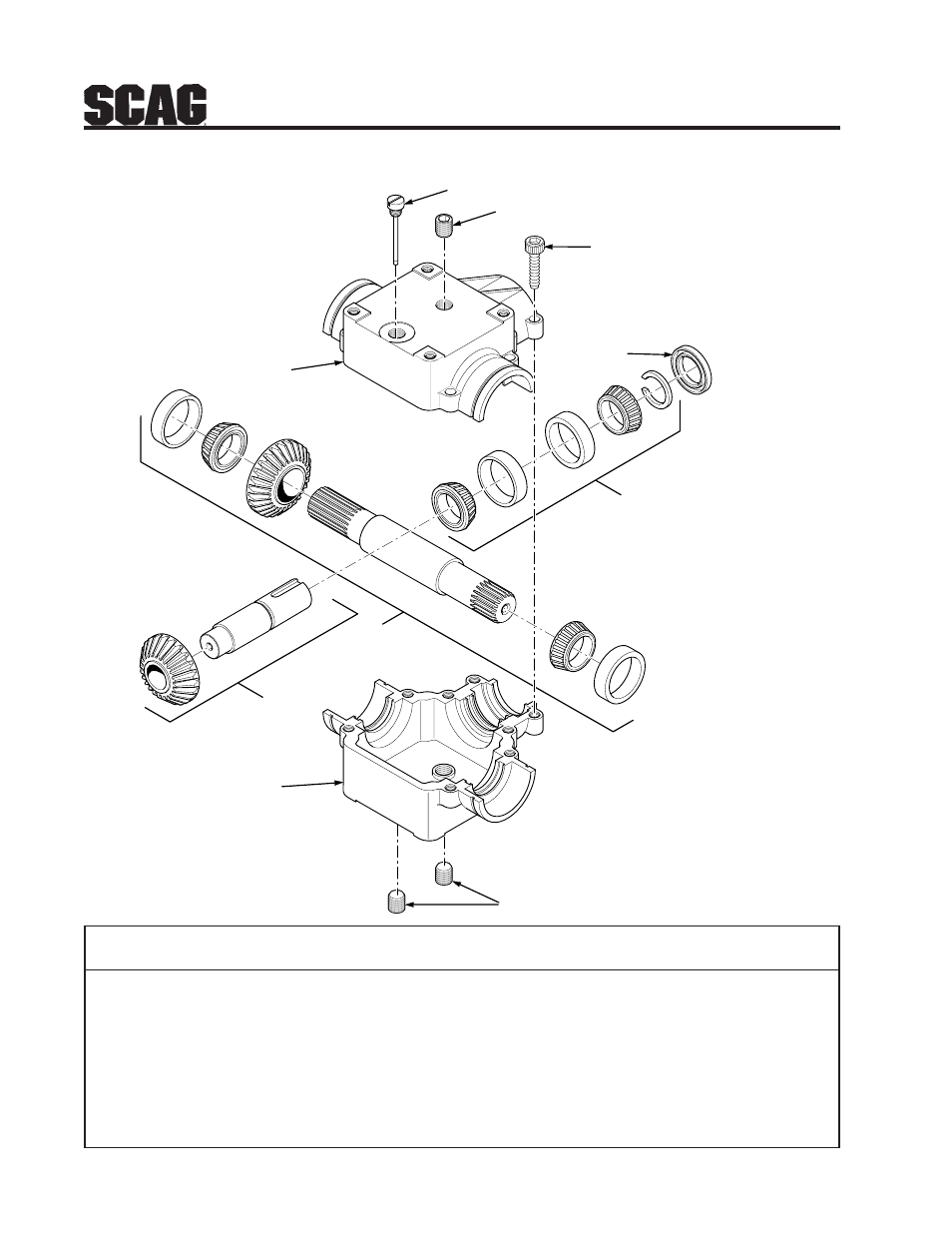

GEARBOX ASSEMBLY (481410)
Ref. Part.
No. Number
Description
1 SGC114003002550 Casting, Lower (Threaded Holes)
2 SGC114004002551 Casting, Upper (Non-Threaded Holes)
3 SGC00002614 Shaft / Pinion Assembly
4 SGC00002921 Shaft Assembly-Cross/Gear
5 SGC109843 Seal 1.00 x 1.50 x 3/16"
6 SGC200300 Plug, 1/4 NPT Socket Head
7 SGC103125 Bolt, 5/16-18 x 1.25
8 SGCMD2000003678 Separator, Air/Oil
4
3
390S0131
1
6
7
6
2
3
8
5
