Chapter 6 Section 6.5
Implementing the HTTPS eWay BPEL Sample Projects Building and Deploying the prjHTTPClient_BPEL Sample Project
HTTPS eWay Adapter User’s Guide 77 Sun Microsystems, Inc.
Project Explorer tree onto the Connectivity Map’s HttpBpelService Service icon. If the
operation is successfully defined, the gears on the HttpBpelService icon change from
red to yellow.
Binding the eWay Components
The final step in creating a Connectivity Map is binding the eWay components together.
Steps required to bind eWay components together:
1 Open the cmHTTPClient Connectivity Map and double-click the HttpBpelService
Business Process. The HttpBpelService Binding dialog box appears.
2 From the HttpBpelService Binding dialog box, map FileSender (under
Implemented Services) to the FileClientIN (File) External Application. To do this,
click on FileSender in the HttpBpelService Binding dialog box, and drag the cursor
to the FileClientIN External Application in the Connectivity Map. A link is now
visible between FileClientIN and HttpBpelService.
3 From the HttpBpelService Binding dialog box, map HTTPReceiver (under
Invoked Services) to the eaHTTPClientOUT External Application.
4 From the HttpBpelService Binding dialog box, map FileReceiver to the
FileClientOUT
External Application, as seen in Figure 32.

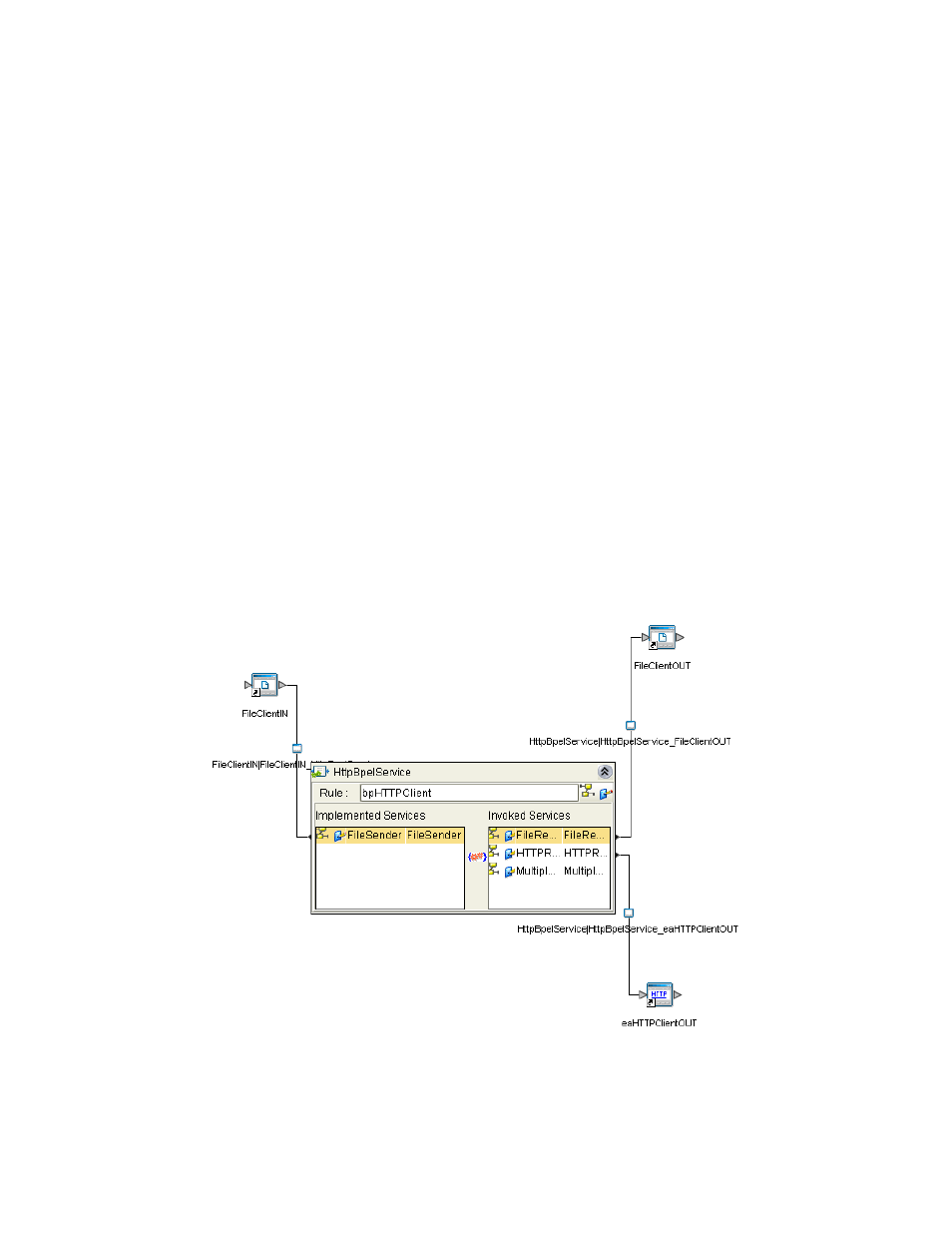

Figure 32 Connectivity Map - Associating (Binding) the Project’s Components
