Chapter 7 Section 7.3
Implementing the HTTPS eWay JCD Sample Projects Building and Deploying the prjHTTPClient_JCD Sample Project
HTTPS eWay Adapter User’s Guide 101 Sun Microsystems, Inc.

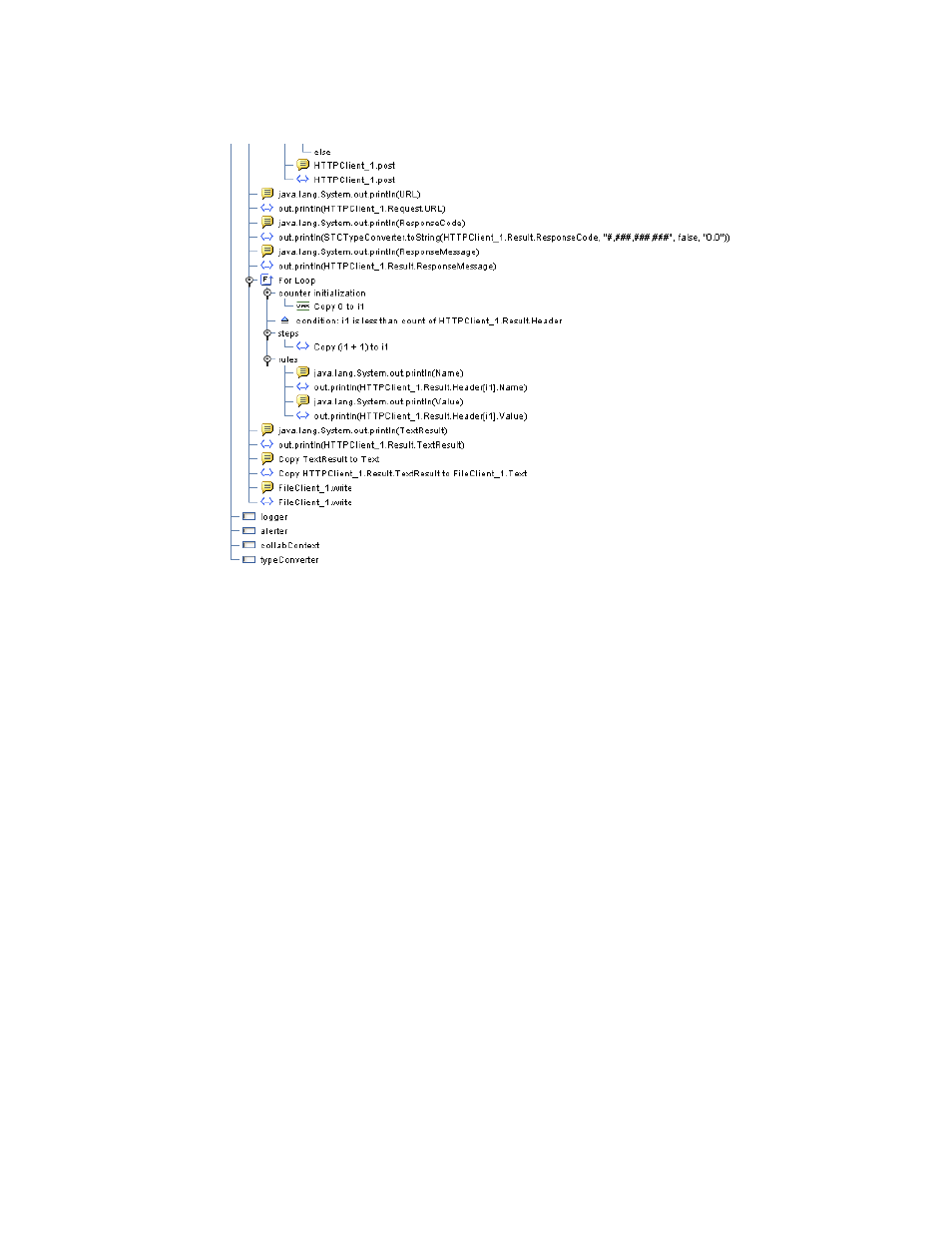

Figure 48 jcdHTTPClient Collaboration Definition - Part 2
7.3.5
Creating a Connectivity Map
A Connectivity Map provides a canvas for assembling and configuring a Project’s
components. The prjHTTPClient_JCD Project only uses one Connectivity Map.
Follow the steps outlined in “Creating a Connectivity Map” on page 75 to create a
Connectivity Map. Name the Connectivity Map cmHTTPClient.
Selecting External Applications
Follow the steps outlined in “Selecting External Applications” on page 76 to select the
external applications for the prjHTTPClient_JCD Project’s Connectivity Map.
Populating the Connectivity Map
Add the Project components to the prjHTTPClient_JCD Connectivity Map by
dragging the icons from the toolbar to the canvas. For this sample Project, drag and
drop the following components onto the Connectivity Map canvas.
ƒ File External System (2)
ƒ Business Service (a service is a container for Java Collaborations, Business
Processes, and so forth)
ƒ HTTP Client External System
Figure 49 shows the components in the Connectivity Map.
