Simrad AUTOPILOT SYSTEM AP50 - Manual (Page 95)

Installation
20221032B
93
Solenoids (externally powered, common
negative)
JUNCTION UNIT
POWER PCB
TB1 TB2
TB3 TB4
Solenoid
isolated
Lo1 Hi
1
Lo2 Hi
2
1
2
3
S1
+
SOLENOID
VALVE

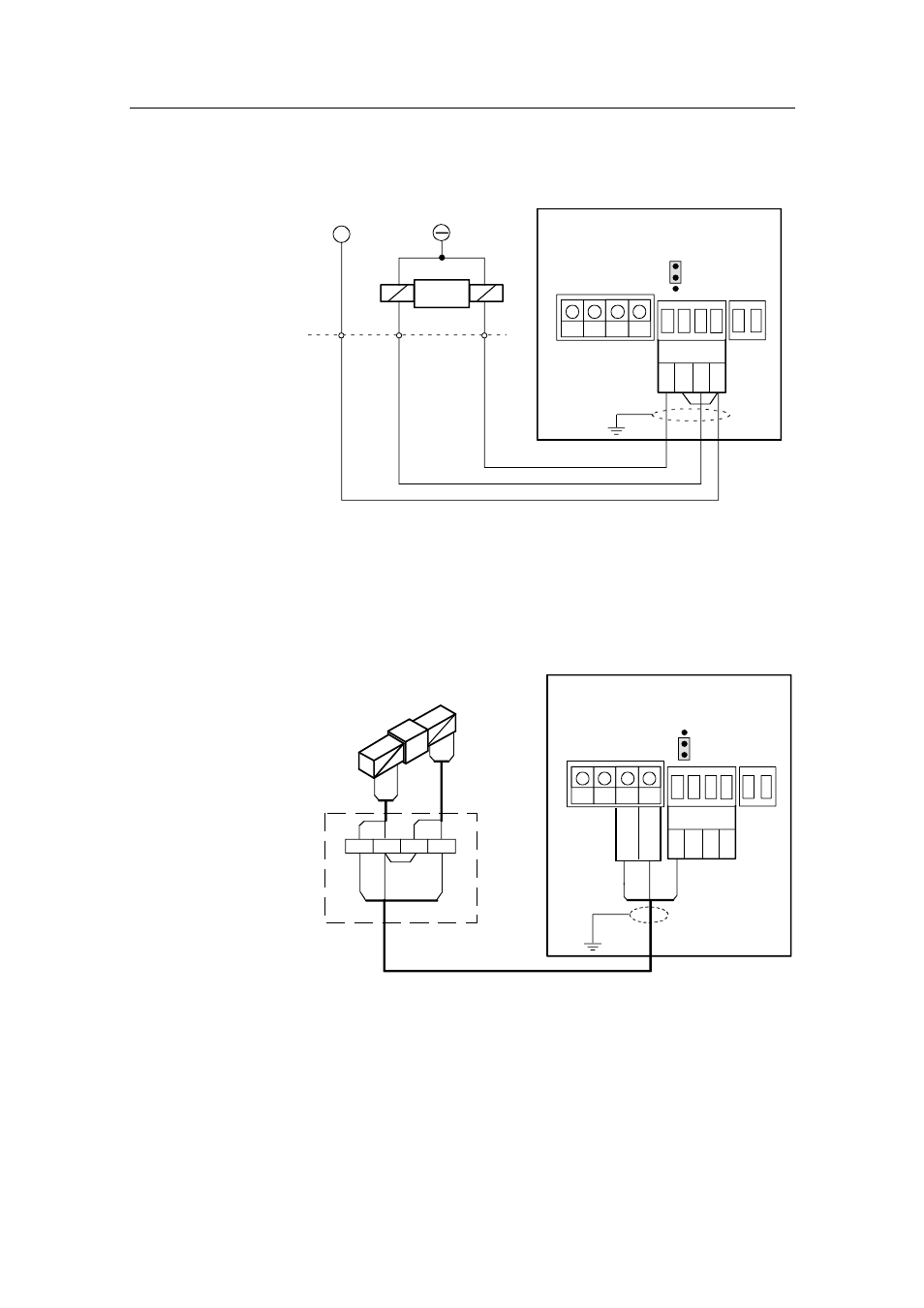

Figure 4-18 Connecting Externally-powered Solenoids with
a Common Negative
Caution ! To prevent damage of the J50 Power PCB, ensure that the S1
jumper switch on the Power PCB is set to position 2-3.
Solenoids (not externally powered)
JUNCTION UNIT
POWER PCB
Sol. Sol. Lo1
SOLENOID
VALVE
TB1 TB2
TB3 TB4
S
o
l. -
M
otor
S
o
l. -
M
otor
Solenoid
isolated
Lo1 Hi
1
Lo2 Hi
2
1
2
3
S1
Figure 4-19 Connecting Non-powered Solenoids
Note ! The jumper switch S1 on the J50 Power PCB must be set to
position 1-2.
