Simrad AUTOPILOT SYSTEM AP50 - Manual (Page 61)

Technical Specifications
20221032B
59
3.12 RF14XU Rudder Feedback Unit
Dimensions: .............................................................................................. See Figure 3-10
Weight: ...................................................................................................... 2,8 kg (4,9 lbs.)
Material:............................................................................Reinforced glass fibre polyester
Environmental Protection: .......................................................................................... IP56
Ambient temperature: .....................................................................................–10 - +55°C
Supply voltage: ................................................................................. 24VDC –10%/+20%
Voltage output: ............................................................................Operating voltage/2 ±9V
Frequency output:.................................................................3400Hz (midships reference)
Port: +20Hz/degree, Stbd: –20Hz/degree
Capacity: .........................................................................................5 indicators in parallel
Rudder angle: ............................................................ ±45 ° (Changeable to 60, 70 or 90°)
Limit switches: ..................................... Two sets, individual adjustable from ±5 to ±160°
120 (4.8")
40 (1.6")
75
(3
")
80
(3
.1
5")
Ш
12 (
0.47"
)
185 (7.3")
150 (5.9")
24
0
(
9.5"
)
160 (6.3")
Ш8
(0
.3"
)

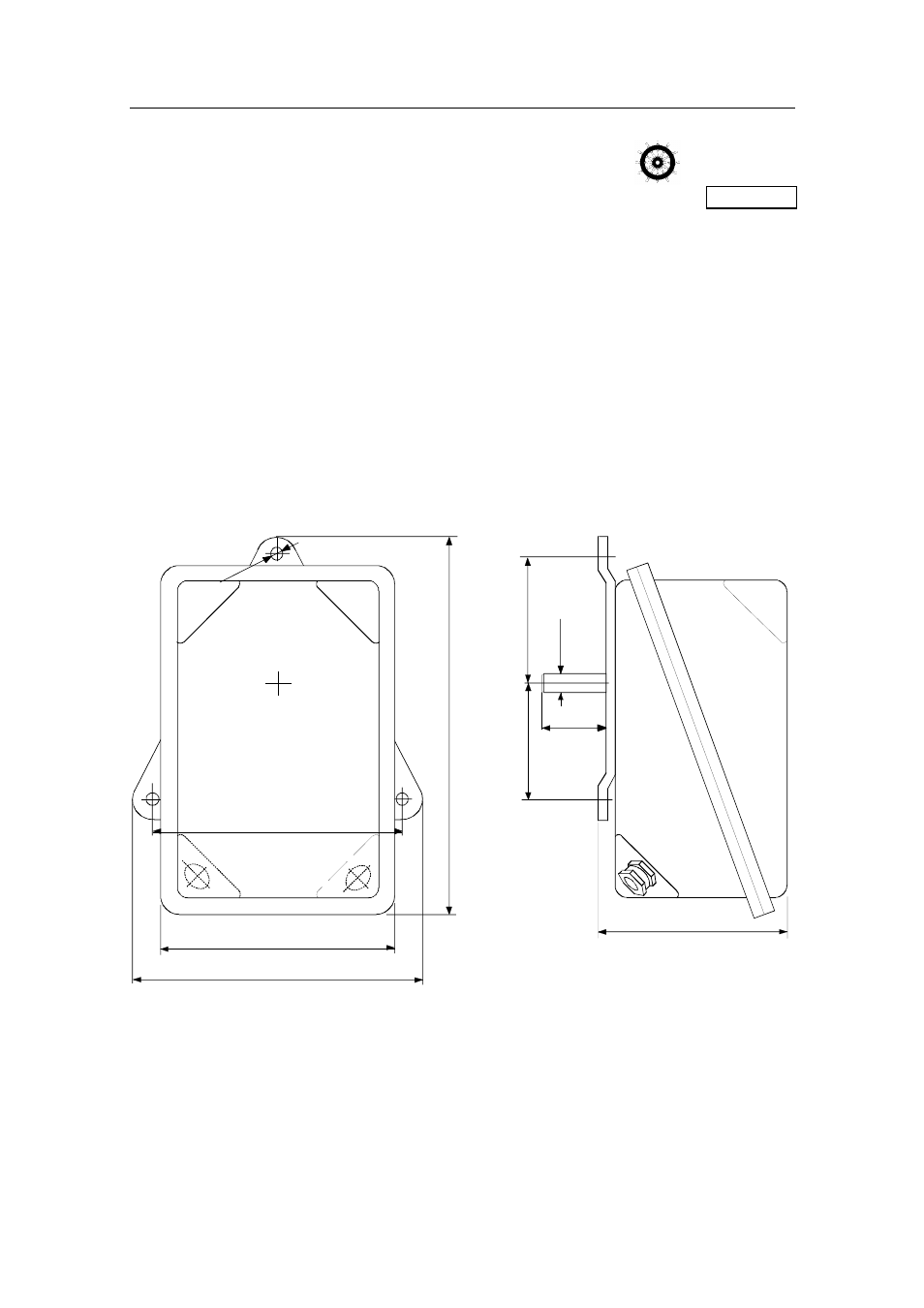

Figure 3-10 RF14XU Rudder Feedback Unit
Dimensions
