Technical Specifications
20221032B
57
3.10 RF300S Rudder Feedback Unit
Dimensions:........................................................................ See Figure 3-8 and Figure 4-2
Weight: ...................................................................................................... 0.5 kg (1.1 lbs.)
Material: .............................................................................................Arnite T06 200 PBT
Environmental Protection:........................................................................................... IP56
Temperature range:
Operation: ............................................................... –25 to +55°C (–13 to +130°F)
Storage: .................................................................. –30 to +80°C (–22 to + 176°F)
Mounting: .................................................................Horizontal, vertical, or upside down
Cable:................................................................ 10 m (33 ft.) single twisted-pair, shielded
Rudder angle:..............................................................................................................
± 90°
Supply and output:...................................Polarity independent two wire frequency signal
Frequency resolution: ........................... Center: 3400 Hz, 20 Hz/degree of change
Linearity:...........................................................................
± 3° up to 45° of rudder
Transmission link: ...................................... Stainless 350mm (13.8 in.) with 2 ball joints.
Ball joint stud for rudder arm requires 4.2mm diameter hole and 5mm tap.

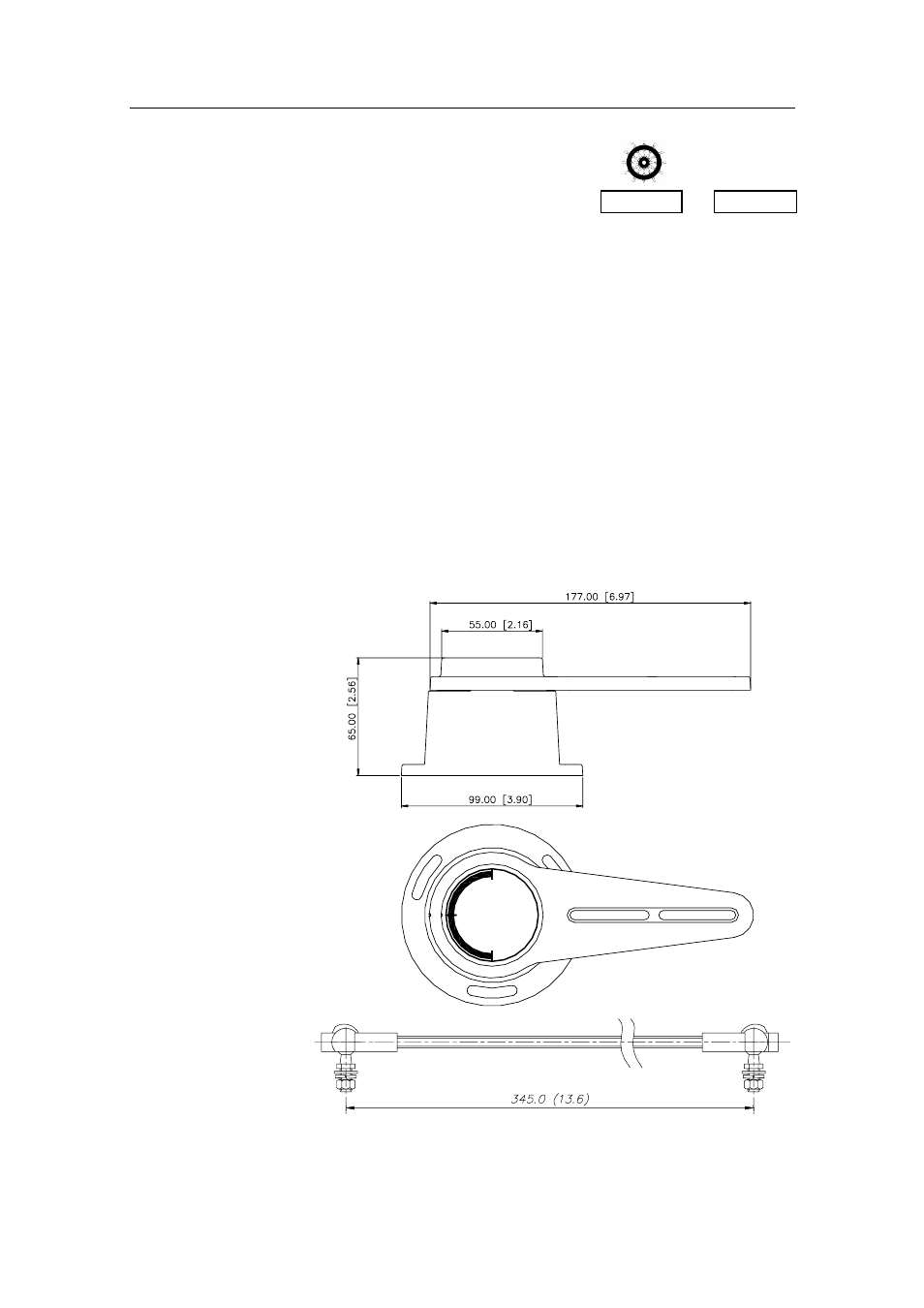

Figure 3-8 RF300S Rudder Feedback Unit Dimensions
