Wheels, Tyres and Treads
PY80265,05I0187 –19–11JUL06–1/1

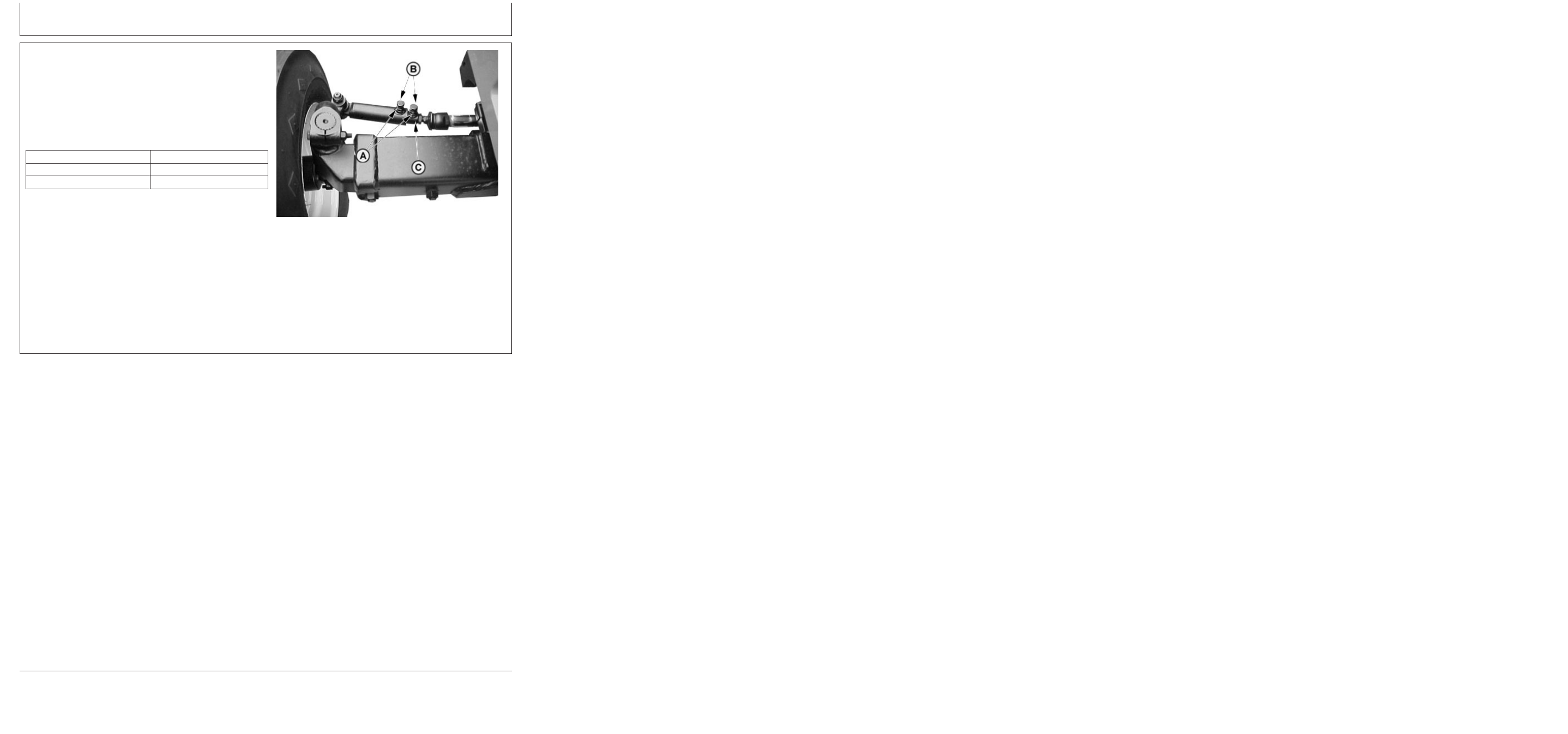

Adjusting Toe-In
PY4009
–UN–14JUL04
A—Lock Nuts
B—Tie Rod Bolts
C—Inner Tube
1. Loosen lock nuts (A) and back out the bolts (B) on tie
rod tubes several turns.
2. Adjust tie rods on both sides of the tractor equally by
rotating the inner tube (C) to lengthen or shorten tie
rod. Adjust toe-in to 3 to 6 mm (1/8 to 1/4 in.)
Tie Rod Rotation Approximate Change in Toe-in
1/2 turn 8 mm (5/16 in.)
1 turn 16 mm (5/8 in.)
3. Tighten bolts (B) to specification. Do not overtighten as
damage to the tube may occur.
Specification
Tie Rod Bolts—Torque 85 N•m (62 lb-ft) ....................................................
4. Tighten the lock nuts (A) to specification.
Specification
Tie Rod Lock Nuts—Torque 90 N•m (66 lb-ft) ...........................................
