Remote Hydraulic Cylinders
PY80265,05I0158 –19–12SEP05–1/1
Use Correct Hose Tips
If your tractor is equipped with a selective control valve
(SCV), the couplers receptacles accept a standard hose
tip as recommended by ISO
1 and SAE 2 . Adapters are
available to allow connecting the older John Deere hose
tips to the ISO couplers on your tractor.
1 International Standards Organization
2 Society of Automotive Engineers
PY80265,05I0159 –19–08JUN06–1/1

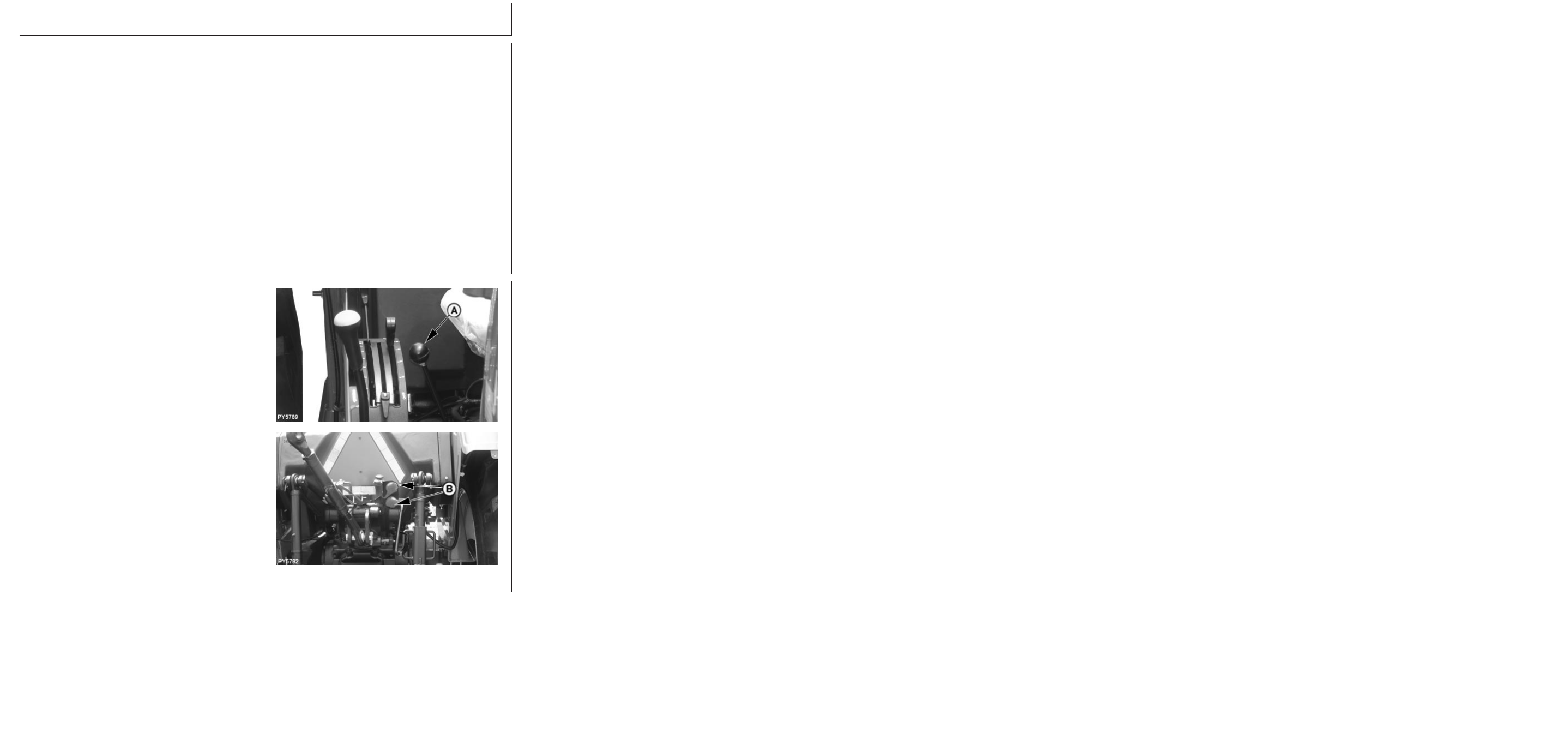

Control Lever and Coupler Identification—If
Equipped
PY5789
–UN–08JUN06
PY5792
–UN–08JUN06
A— SCV Lever
B—SCV Receptacles
Movement of SCV lever (A) fore and aft operates coupler
receptacles (B).
Coupler has a detented float position when lever (A) is
moved in the fully forward direction.
