Lights

GENERIC,000003D

–19–11JUL06–1/1

Using Turn Signals

PY4114

–UN–23FEB06

PY5510

–UN–17FEB06

PY5767

–UN–02JUN06

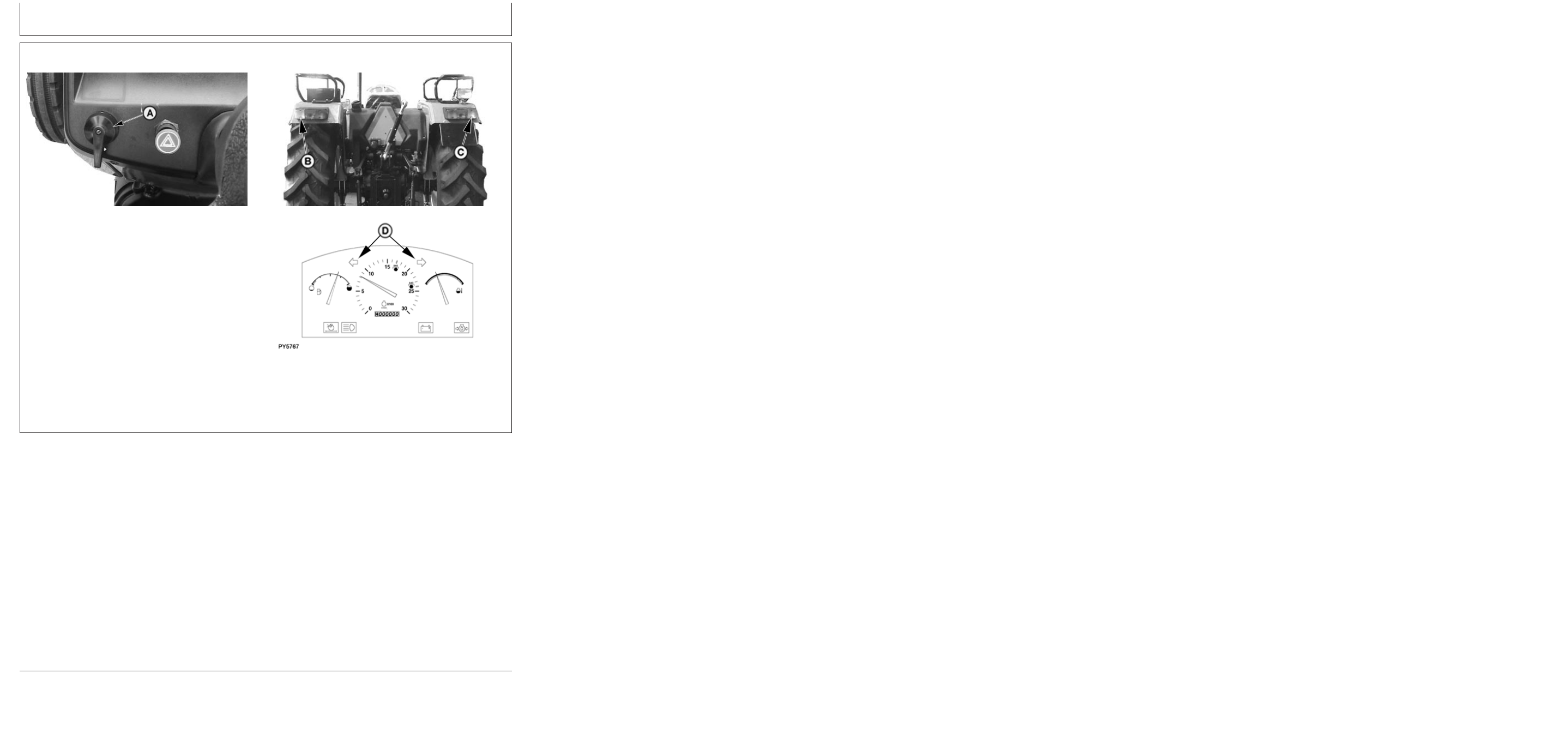

A—Turn Signal Lever
B—Left-Hand Lights
C—Right-Hand Lights
D—Dash Indicator Lights

Move turn signal lever (A) down to indicate left-hand turn
or up for right-hand turn. Indicator lights (D) will flash to
signal turn direction.

When lever is up, front and rear turn lights on right-hand
side (C) will flash . When lever is down, front and rear turn
lights on left-hand side (B) will flash.

NOTE: Be sure to manually return lever to center position

after turning.
