Wheels, Tyres and Treads
GENERIC,0000057 –19–21FEB06–1/2

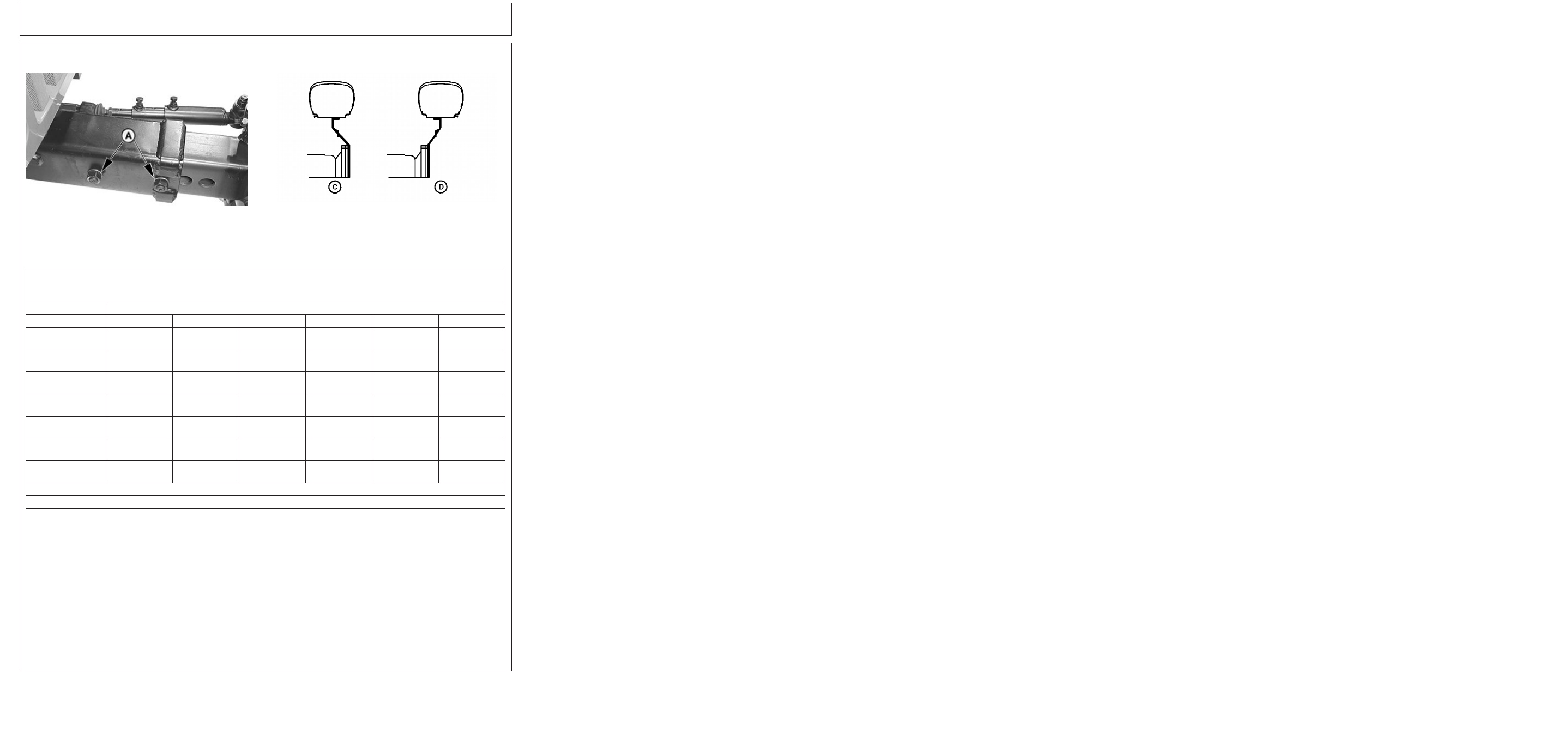

Tread Settings—Adjustable Front Axle
PY5528
–UN–21FEB06
LV1515
–UN–05MAR96
A—Adjustment Holes
Front rims are offset. With some tires, this provides
two tread spacings at each axle setting.
ADJUSTABLE FRONT AXLE TREAD SETTINGS
Diagram C
Centerline-to-Centerline
Tread Position a
Tire 1 2 3 4 5 6
1449 mm 1549 mm 1649 mm 1749 mm 1849 mm 1949 mm
6.50-20 (57.0 in.) (61.0 in.) (64.9 in.) (68.9 in.) (72.8 in.) (76.7 in.)
1449 mm 1549 mm 1649 mm 1749 mm 1849 mm 1949 mm
7.50-16 (57.0 in.) (61.0 in.) (64.9 in.) (68.9 in.) (72.8 in.) (76.7 in.)
1468 mm 1568 mm 1668 mm 1768 mm 1868 mm 1968 mm
9.5L-15 (57.8 in.) (61.7 in.) (65.7 in.) (69.6 in.) (73.5 in.) (77.5 in.)
1468 mm 1568 mm 1668 mm 1768 mm 1868 mm 1918 mm
10.0-15 (57.8 in.) (61.7 in.) (65.7 in.) (69.6 in.) (73.5 in.) (75.5 in.)
1473 mm 1573 mm 1673 mm 1773 mm 1873 mm 1973 mm
11L-15 (58.0 in.) (61.9 in.) (65.9 in.) (69.8 in.) (73.7 in.) (77.7 in.)
INT b 1546 mm 1646 mm 1746 mm 1846 mm 1946 mm
27/9.5-15 (60.9 in.) (64.8 in.) (68.7 in.) (72.7 in.) (76.6 in.)
1477 mm 1577 mm 1677 mm 1777 mm 1877 mm 1977 mm
27/12LL-15 (58.1 in.) (62.1 in.) (66.0 in.) (70.0 in.) (73.9 in.) (77.8 in.)
a Tread position 1 is with axle adjustment at its most inward location. See Adjust Front Axle Tread Width in this section.
b Interference (Do not use)
75-7
082206
PN=82
Continued on next page
