Service
PY80265,05I0273 –19–12SEP05–1/2

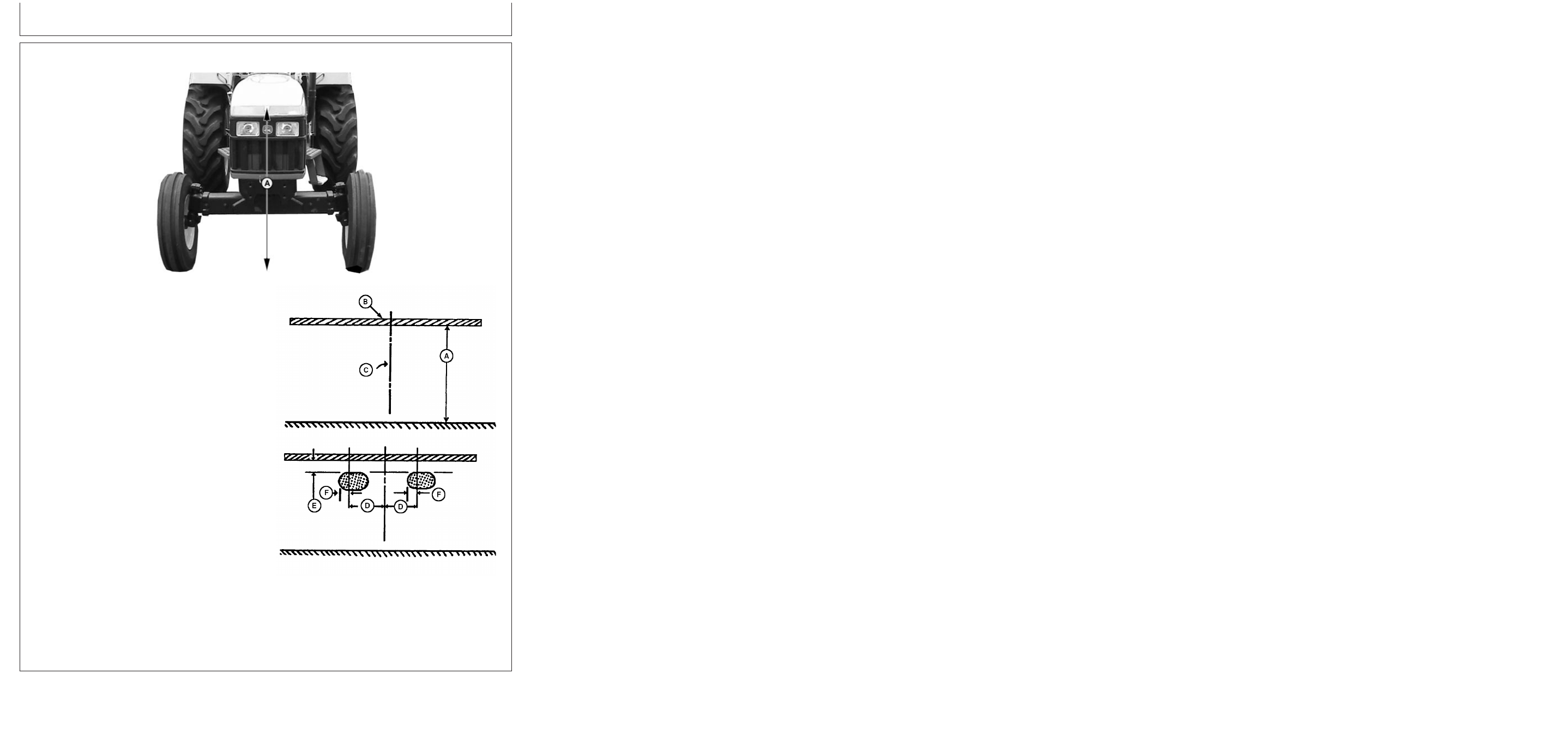

Aiming Headlights
PY4034
–UN–22JUL04
LV3020
–UN–10JUN99
A—Hood-to-Ground Distance
B—Masking Tape
C—Tractor Centerline
D—Center of Headlight
E—Top of Zone
F—Left Edge of Zone
1. Park tractor on level ground, with lights 8 m (25 ft)
from a wall.
2. Measure from top of hood to the ground (A). Place a
strip of masking tape (B) on the wall at the same
height.
3. Place a piece of tape, folded in the middle to make a
point, on the top front center of the hood.
4. Using the hood tape as a guide, sight across steering
wheel and hood to locate tractor centerline. Mark
tractor centerline (C) on wall.
5. From tractor centerline (C), mark a point 130 mm (5
in.) out in each direction (D). This mark locates a point
directly in front of center of each headlight.
6. Turn light switch to dim position.
140-19
082206
PN=136
Continued on next page
