Invacare Xterra GT - Manual (Page 59)

Item
Number Part Number Description Note
Quantity Per
Package Assembly
1057852 Tube, Pivot/Slide, Curved End, Steel, Black (9-7/8") 1 1 1
1057854 Tube, Pivot/Slide, Curved End, 2" Longer, Steel,
Black 1 1 1
1058418 Tube, Pivot/Slide, Curved End, 4" Longer, Steel,
Black 1 1 1
1025457 Spacer, Coved (1/4 x 3/4 x 11/32") 1 2 2
1027097 Plug Button, Black (3/4") 1 1 3
7930323 Package, Locknut (1/4-20) 25 1 4
7930366 Package, Socket Head Screw (1/4-20 x 2-1/4") 25 1 5

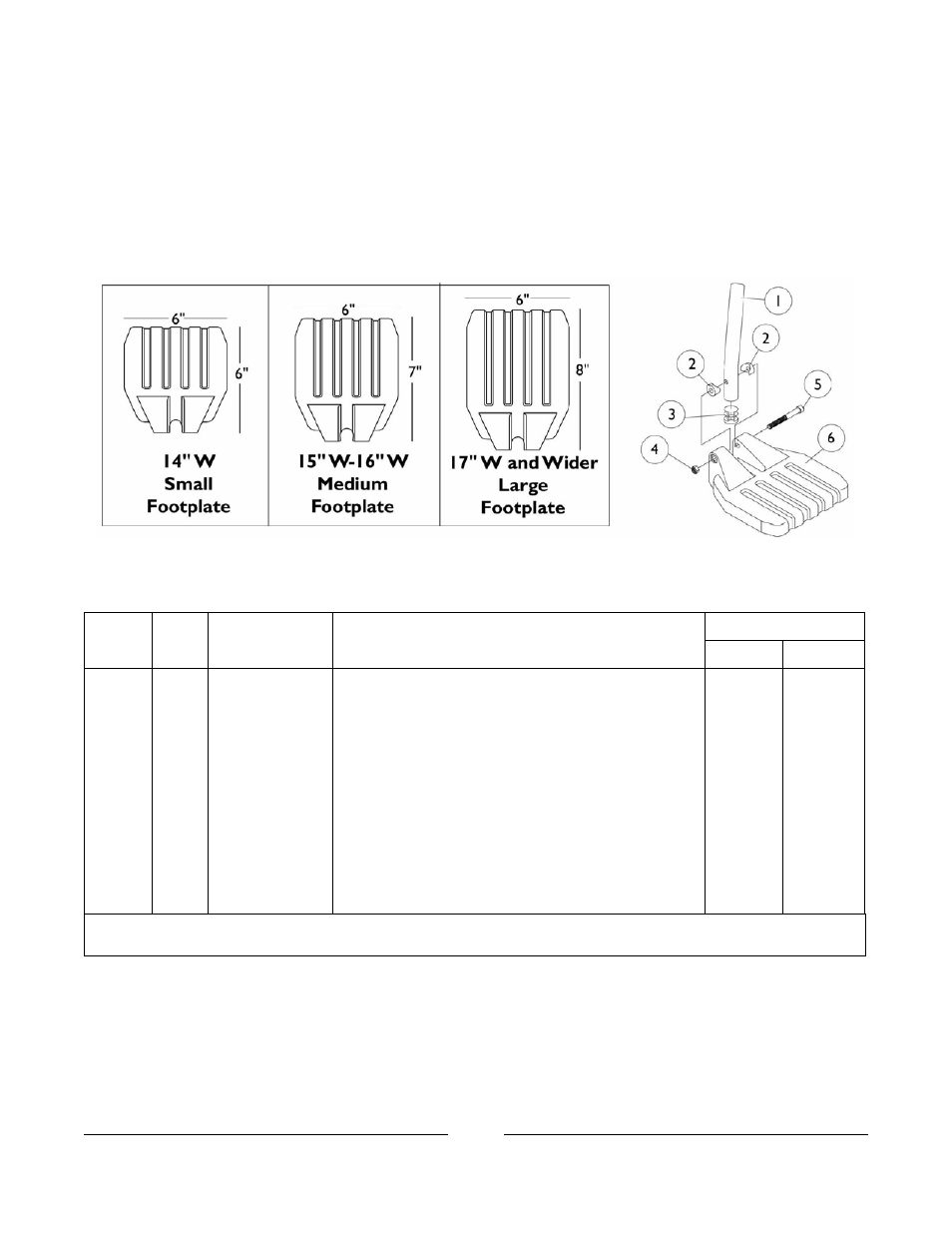

1026879 Footplate, Composite, Small, Black (6" W x 6" L) 1 1 6 A
1026880 Footplate, Composite, Medium, Black (7" W x 6" L) 1 1 6 B
1026881 Footplate, Composite, Large, Black (8" W x 6" L) 1 1 6 C
A - Chairs 14" Wide or 70STAPER and PW39ST Only 15-17" Wide.
B - Chairs 15-16" Wide or 70STAPER and PW39ST Only 18-19" Wide.
C - Chairs 17" and Wider or 70STAPER and PW39ST Only 20" and Wider. NOTE:
Pivot/Slide Tube and
1651 Composite Footplates
NOTE: Heel loops are not included. See Footrest and Legrest Accessories.
NOTE: For complete pivot/slide tube and footplate assemblies, see Front Rigging Reference Charts.
