Intel 80L186EA User Manual
Page 35
80C186EA 80C188EA 80L186EA 80L188EA

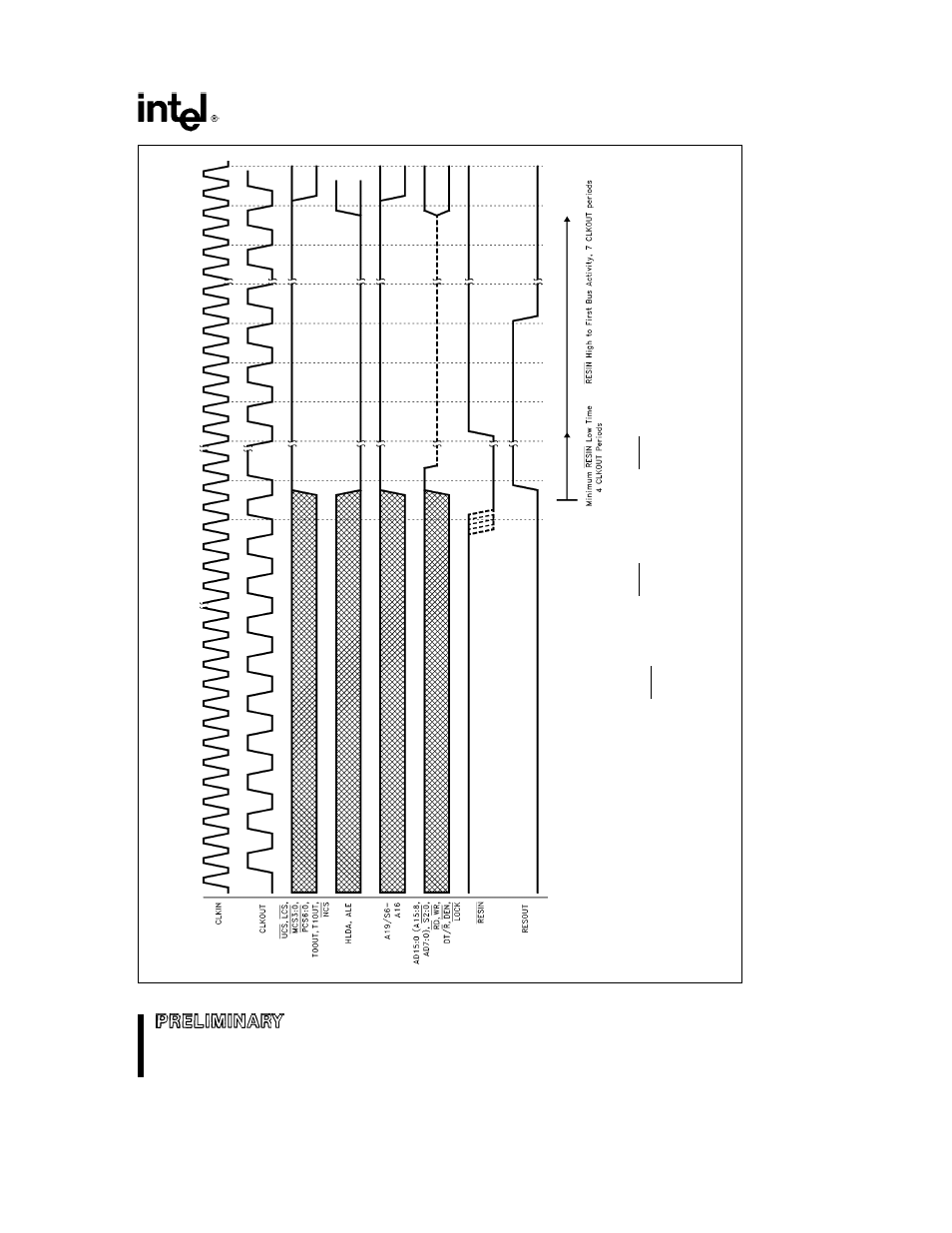

Figure 16 Warm Reset Waveforms
272432
–
1
6
NOTES
1
CLKOUT
resynchronization
occurs
approximately
1
CLKIN
periods
after
RESIN
is
sampled
low
If
RESIN
is
sampled
low
while
CLKOUT
is
transitioning
high
then
CLKOUT
will
remain
high
for
two
CLKIN
periods
If
RESIN
is
sampled
low
while
CLKOUT
is
transitioning
high
then
CLKOUT
will
not
be
affected
2
Pin
names
in
parentheses
apply
to
the
80C188EA
35
35
