80C186EA 80C188EA 80L186EA 80L188EA
AC TEST CONDITIONS

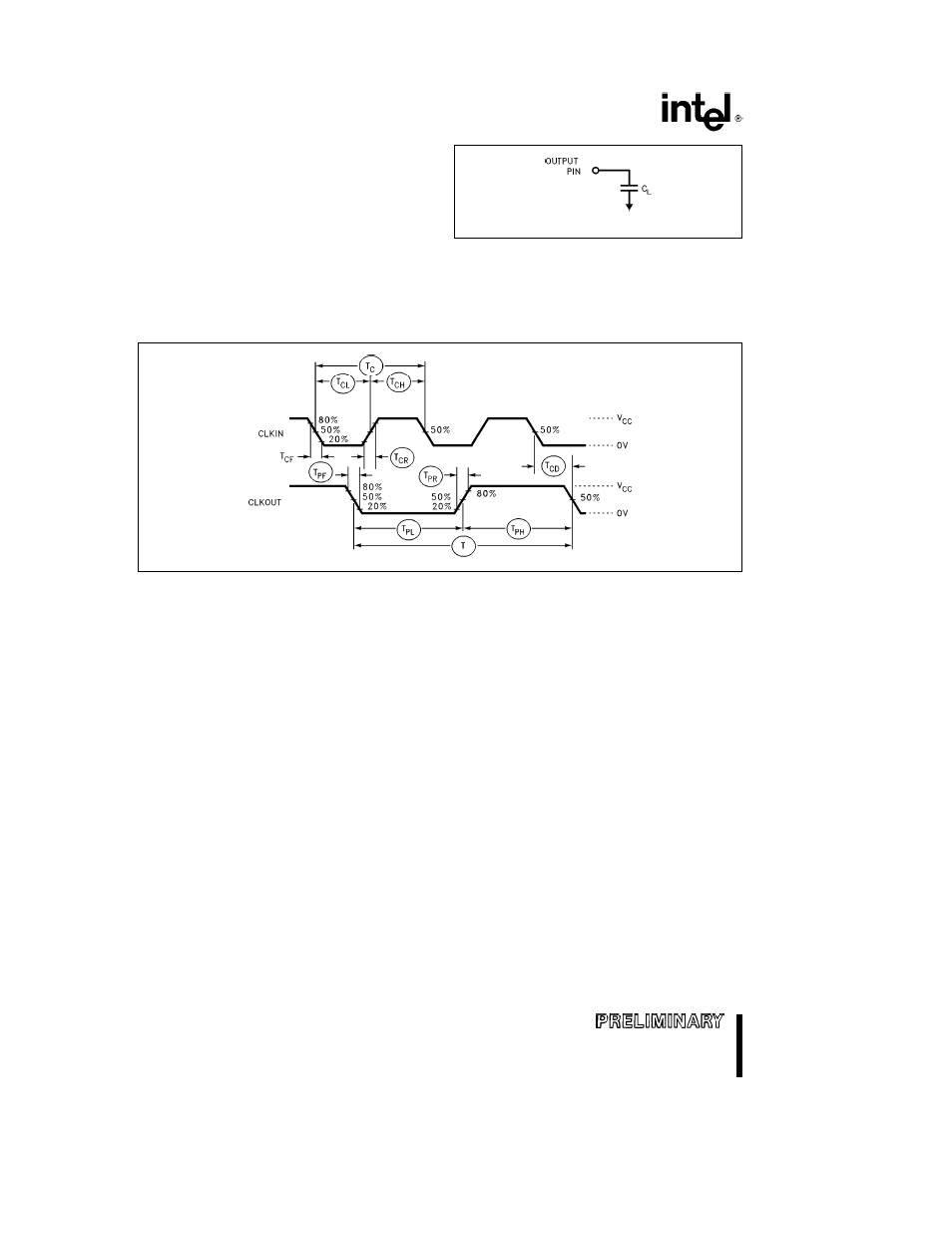

The AC specifications are tested with the 50 pF load
shown in Figure 8 See the Derating Curves section
to see how timings vary with load capacitance
Specifications are measured at the V
CC
2 crossing
point unless otherwise specified See AC Timing
Waveforms for AC specification definitions test
pins and illustrations
272432 – 8
C L e 50 pF for all signals
Figure 8 AC Test Load
AC TIMING WAVEFORMS
272432 – 9
Figure 9 Input and Output Clock Waveform
